ELECTRICAL

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

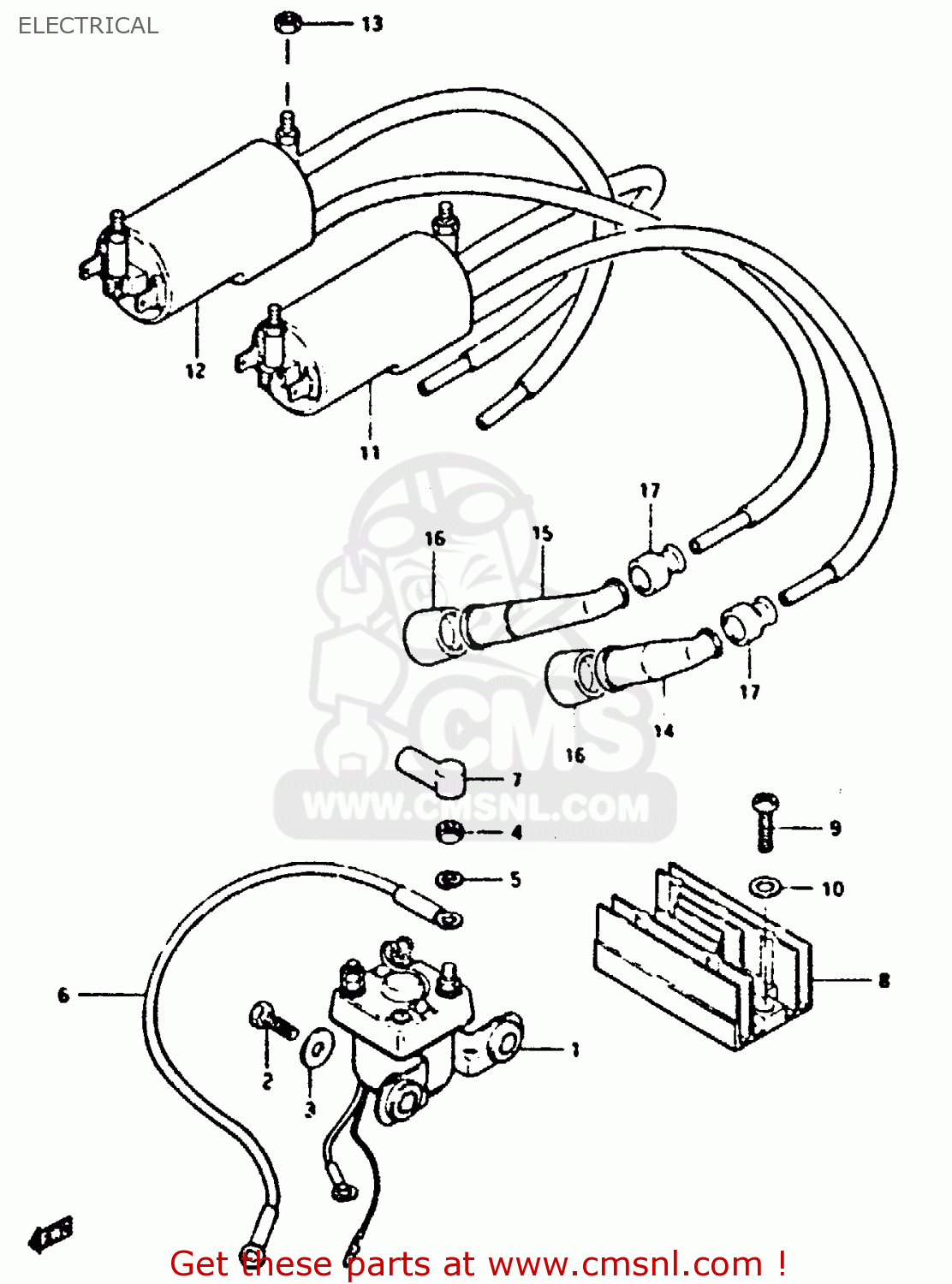

Electrical diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

3180010201
ref: 1

RELAY,STARTER SWITCH

€ 79.00

0110706168
ref: 2

BOLT, UPPER

€ 3.00

0916006007
ref: 3

WASHER

€ 2.00

0831022068
ref: 4

NUT 6MM

€ 2.50

0832121068
ref: 5

LOCK WASHER

€ 2.50

3385009310
ref: 6

WIRE,STARTER MOTOR LEAD

€ 0.00

3186135100
ref: 7

CAP,STARTER RELAY

€ 4.50

3280009300
ref: 8

RECTIFIER ASSEMBLY

€ 306.50

0211206208
ref: 9

SCREW

€ 2.00

0832221068
ref: 10

WASHER

€ 2.00

3341049210
ref: 11

COIL ASSEMBLY,IGNITION

€ 182.00

3342049210
ref: 12

COIL ASSEMBLY,IGNITION

€ 182.00

0831011068
ref: 13

NUT

€ 2.50

3351043010
ref: 14

CAP,SPARK PLUG

€ 11.50

3351045010
ref: 15

CAP ASSY,SPARK PLUG

€ 23.00

3354138210
ref: 16

SEAL,SPARK PLUG

€ 7.00

3354298000
ref: 17

SEAL,SPARK PLU

€ 4.50
