REAR BREAK HOSE

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

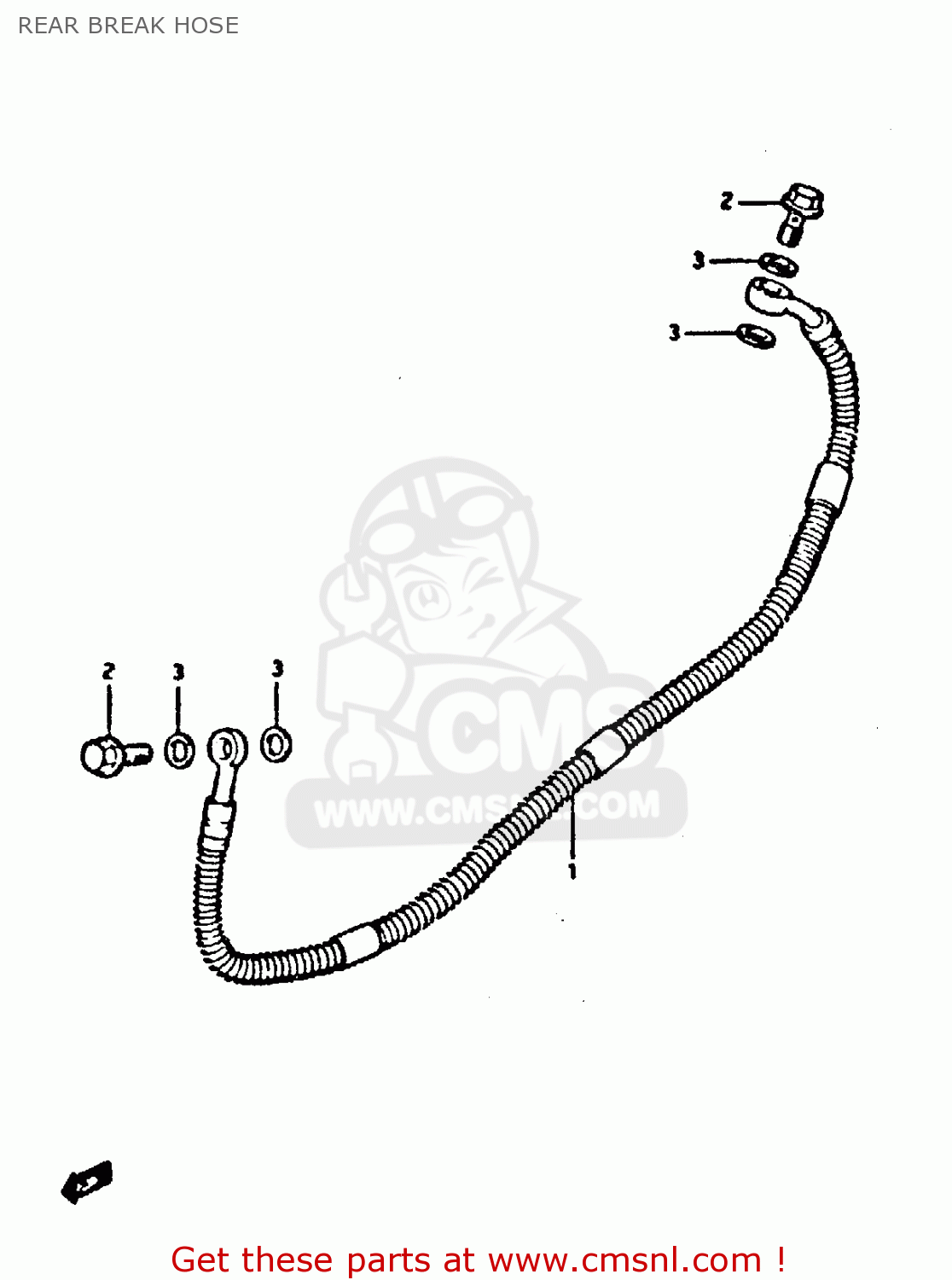

Rear break hose diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

REAR BREAK HOSE XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

REAR BREAK HOSE XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

1

6948009301
ref: 1

HOSE,REAR BRAKE

€ 77.00

2

0936010007
ref: 2

BOLT,UNION

€ 6.50

3

0916110005
ref: 3

WASHER

€ 2.00
