LEFT HANDLE SWITCH

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

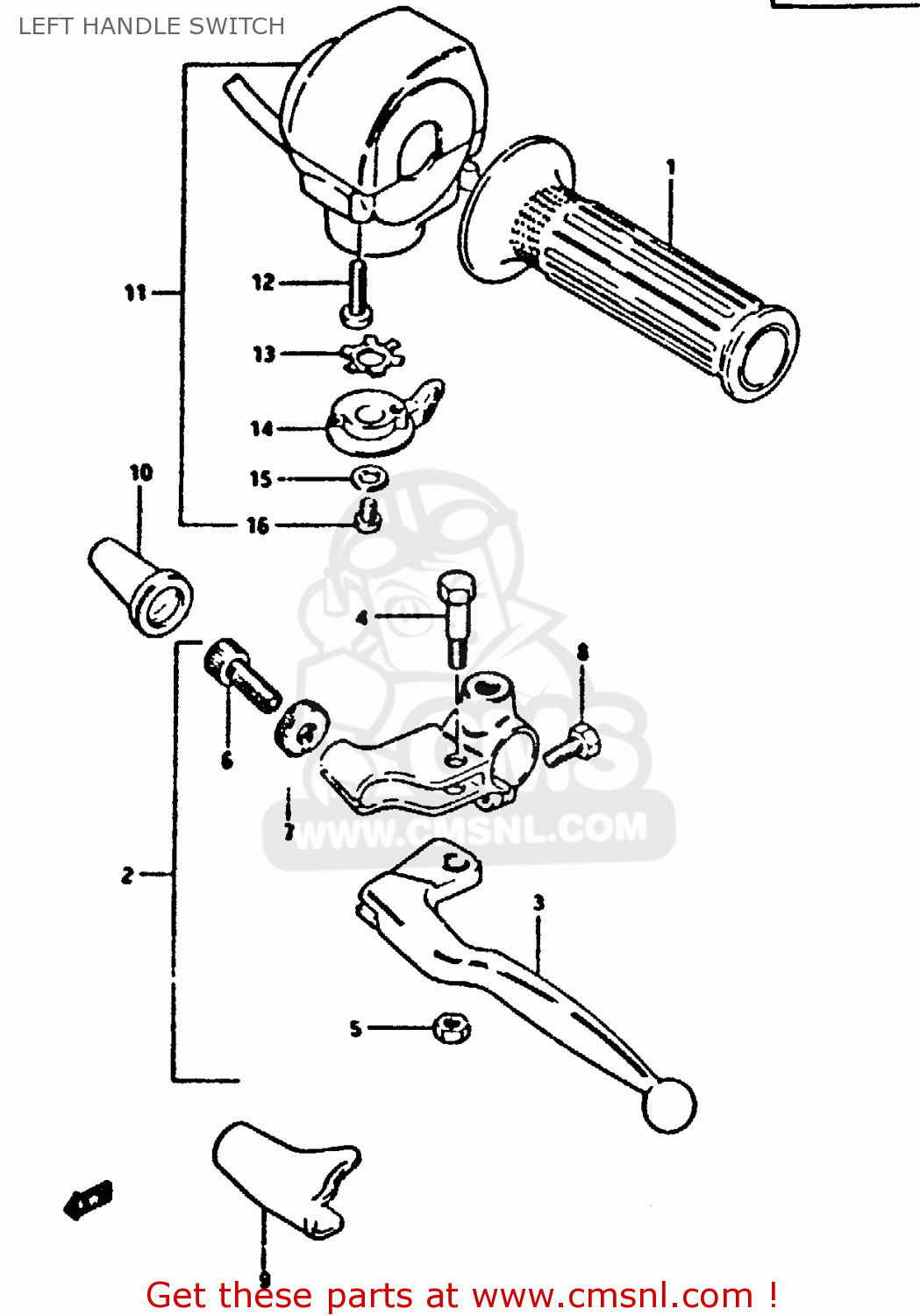

Left handle switch diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

5721149500
ref: 1

GRIP,L

€ 9.00

5750049103
ref: 2

LEVER ASSY, CLUTCH

€ 49.50

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

5743149110
ref: 4

BOLT,LEVER PIVOT

€ 5.00

0831921068
ref: 5

NUT 6MM

€ 2.00

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

5745149110
ref: 8

BOLT,CLUTCH LEVER HOLDER

€ 2.00

5766131000
ref: 9

COVER,CLUTCH LEVER

€ 5.50

5827331000
ref: 10

BOOT,CLUTCH CABLE

€ 2.50

11-1

3740009370
ref: 11-1

SWITCH ASSY, HANDLE LH

€ 96.50

11-2

3740009390
ref: 11-2
E34

SWITCH ASSY, HANDLE LH

€ 0.00

0211205258
ref: 12

SCREW

€ 2.00

3757345110
ref: 13

WASHER

€ 2.00

3757109300
ref: 14

LEVER,CHOKE

€ 10.00

0832211068
ref: 15

WASHER 6MM

€ 2.00

0211206088
ref: 16

SCREW

€ 2.00

LEFT HANDLE SWITCH

all assemblies
