RIGHT HANDLE SWITCH

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

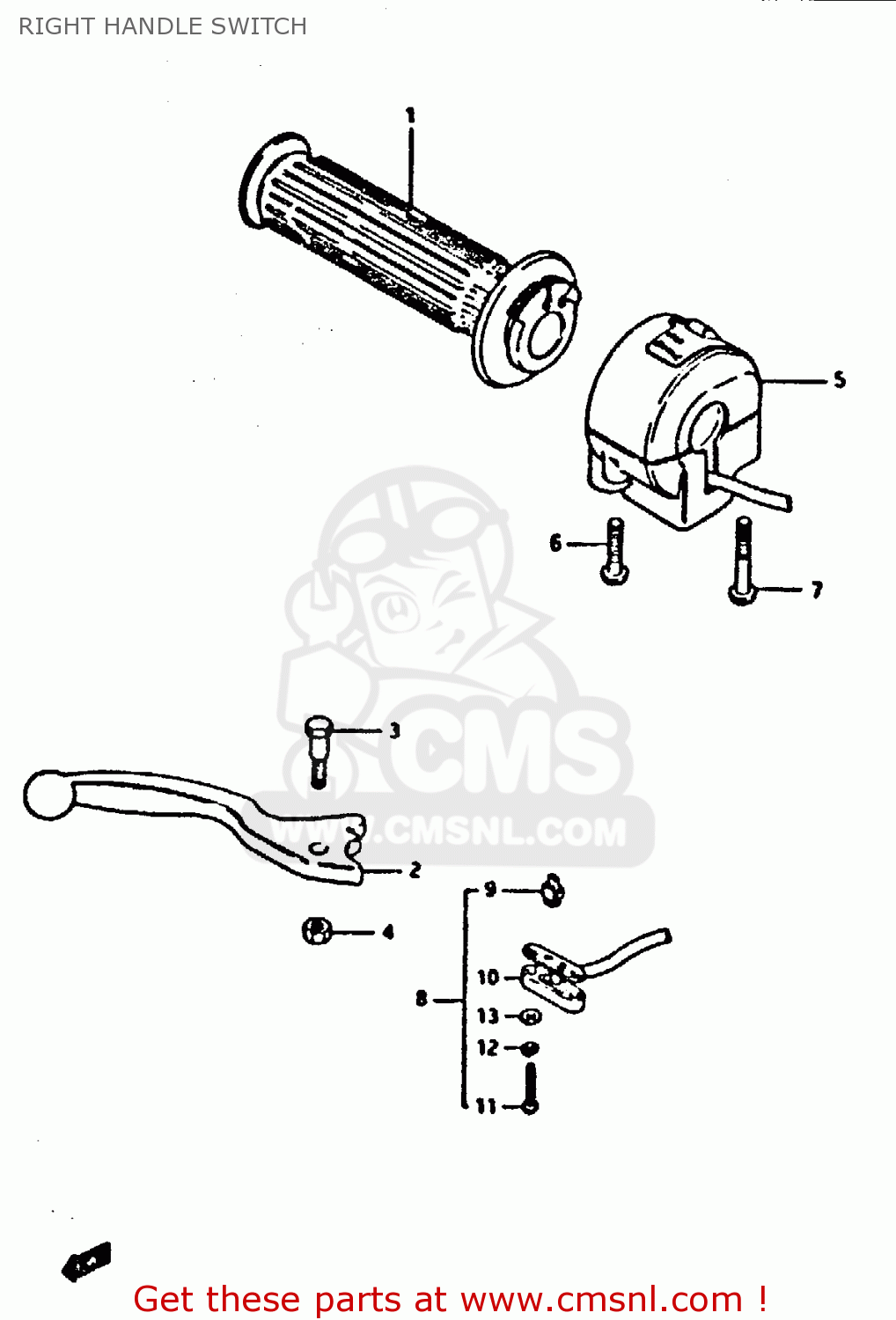

Right handle switch diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

5711049500
ref: 1

GRIP,THROTTLE

€ 26.00

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

5743118621
ref: 3

BOLT

€ 8.00

0831921068
ref: 4

NUT 6MM

€ 2.00

5-1

3720009300
ref: 5-1

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 0.00

5-2

3720009310
ref: 5-2
E2, E4, E15, E16, E1

SWITCH ASSY, HANDLE RH

€ 143.00

5-3

3720009320
ref: 5-3
E34

SWITCH ASSY, HANDLE RH

€ 144.50

0211205258
ref: 6

SCREW

€ 2.00

0211205358
ref: 7

SCREW

€ 1.50

5746009300
ref: 8

SWITCH ASSEMBLY

€ 40.00

5746518601
ref: 9

CONTACT,SWITCH

€ 4.50

5748133010
ref: 10

COVER,FR BK TERMINAL BASE

€ 19.50

0912503105
ref: 11

SCREW

€ 2.50

0832121038
ref: 12

LOCK WASHER

€ 1.50

0832221038
ref: 13

WASHER

€ 2.00

RIGHT HANDLE SWITCH

all assemblies
