CAM CHAIN

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

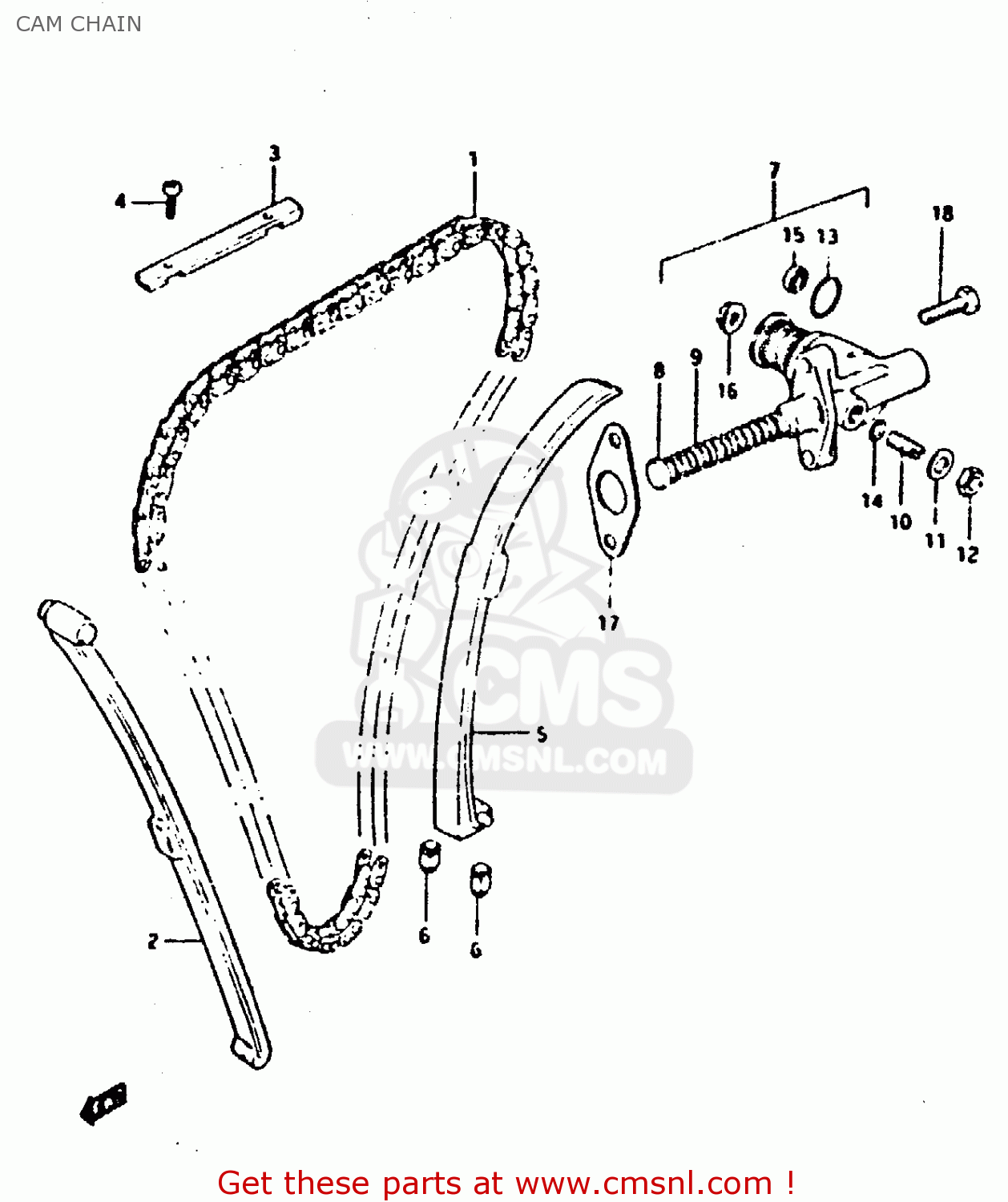

Cam chain diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

1276045040
ref: 1

CHAIN,CAMSHAFT DRIVE(120L)

€ 112.00

1277134200
ref: 2

GUIDE,CAM CHAIN

€ 35.00

1278249140
ref: 3

GUIDE,CAM CHAIN

€ 37.50

0211205108
ref: 4

SCREW

€ 2.00

1281034201
ref: 5

TENSIONER,CAM CHAIN

€ 60.00

1281444101
ref: 6

CUSHION,CAM CHAIN TENSIONER

€ 8.50

1283009300
ref: 7

ADJUSTER,CAM CHAIN TENSIONER

€ 167.00

1283347001
ref: 8

ROD,PUSH

€ 25.00

0944012017
ref: 9

SPRING

€ 2.50

1283845001
ref: 10

SCREW

€ 6.00

0832211088
ref: 11

WASHER

€ 2.00

0831012088
ref: 12

NUT

€ 2.00

0928021013
ref: 13

O RING(D:2.4,ID:20.8)

€ 4.50

0928006005
ref: 14

O RING(D:1.9,ID:5.7)

€ 2.50

0928410006
ref: 15

SEAL,OIL(10X16X4)

€ 4.00

0831616068
ref: 16

NUT

€ 2.50

1283747000
ref: 17

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

0912806024
ref: 18

SCREW (6X25)

€ 2.50
