ELECTRONIC CONTROL

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

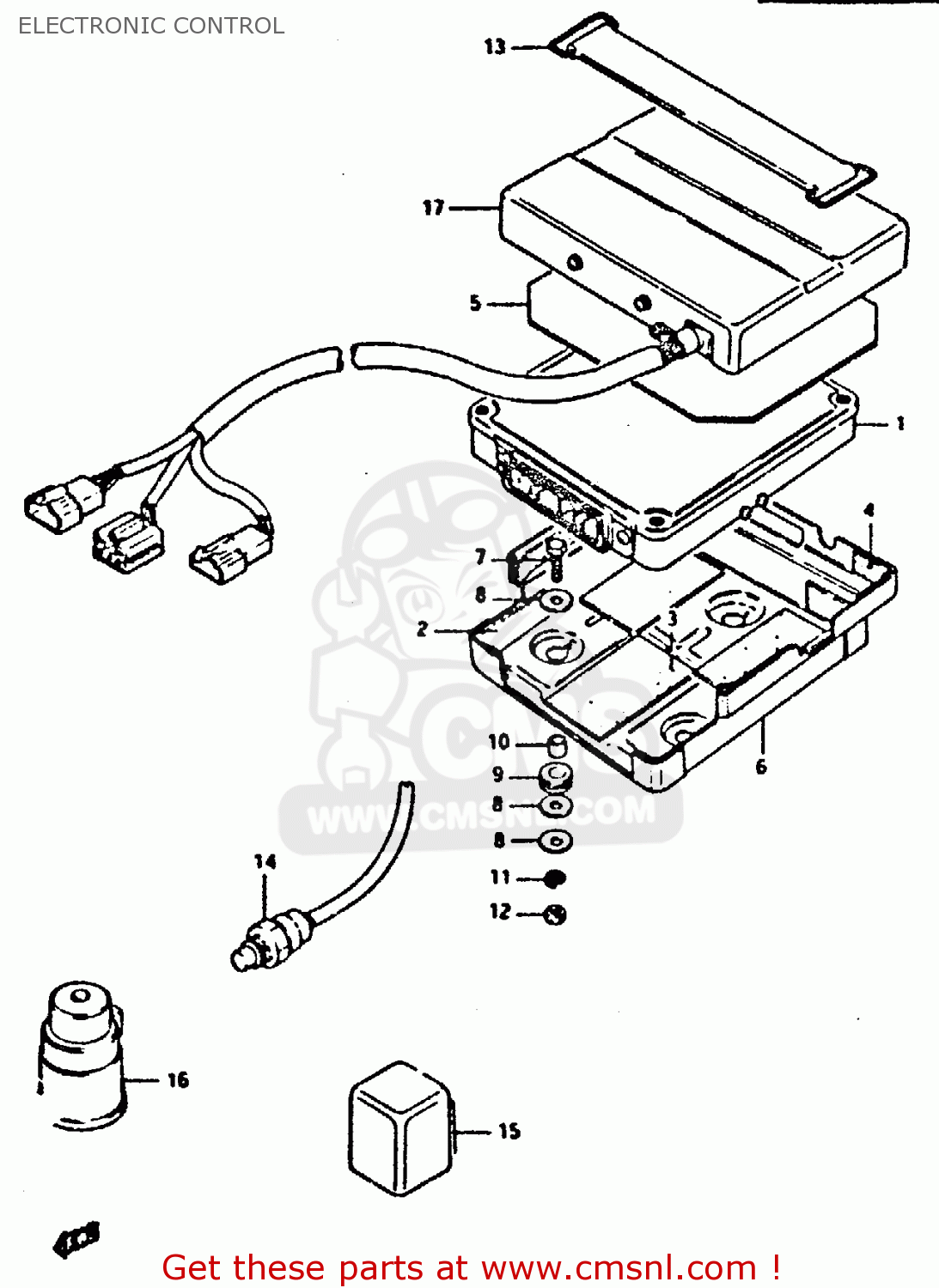

Electronic control diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

3390009300
ref: 1

ELECTRONIC CONTROL UNIT

€ 1,510.50

3365229100
ref: 2

PROTECTOR,20X9

€ 5.00

3390209310
ref: 3

CUSHION, NO. 2

€ 0.00

3390209320
ref: 4

CUSHION, NO. 3

€ 0.00

3390209300
ref: 5

CUSHION, NO. 5

€ 0.00

3390109300
ref: 6

HOLDER,CONTROL UNIT

€ 28.00

0110706258
ref: 7

BOLT

€ 2.00

0916006020
ref: 8

WASHER

€ 2.00

0932008007
ref: 9

CUSHION

€ 4.00

10-1

0918006038
ref: 10-1

SPACER(6.1X9X7.5)

€ 2.00

10-2

0918006027
ref: 10-2

SPACER (6.3X9.1X6.7)

€ 3.00

0832121068
ref: 11

LOCK WASHER

€ 2.50

0831011068
ref: 12

NUT

€ 2.50

0946200055A
ref: 13

BAND

€ 4.00

3392009300
ref: 14

SENSOR,OVER HEAT WARNING

€ 419.00

3873009300
ref: 15

SENSOR,IDLE POSITION

€ 76.00

3395009300
ref: 16

CIRCUIT,OPENING RELAY

€ 40.50

3290009300
ref: 17

CDI UNIT

€ 813.00
