FUEL COCK

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

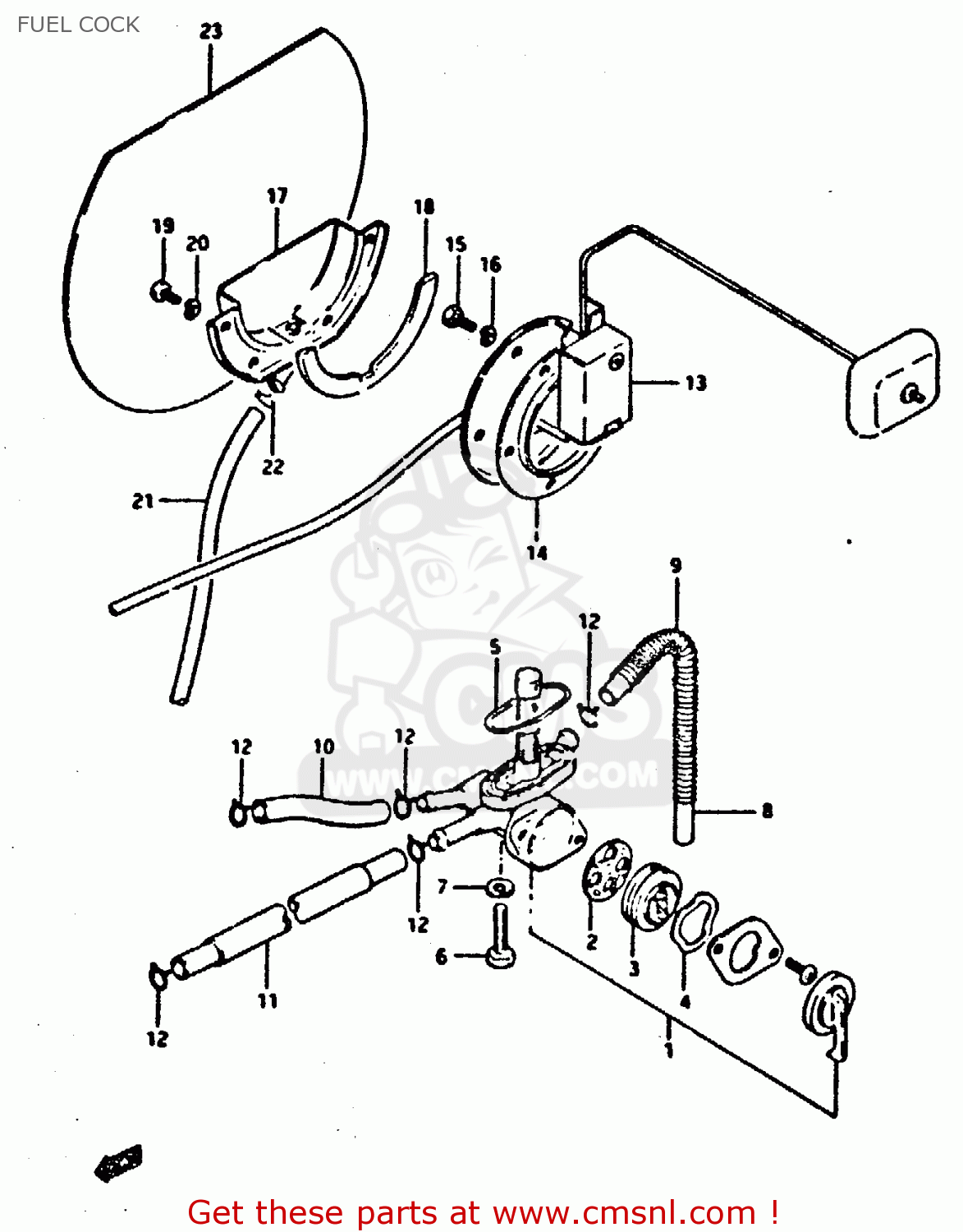

Fuel cock diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

FUEL COCK XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
FUEL COCK XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
FUEL COCK XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
prices are in EUR
ref
part #
description
quantity
1
4430009370
ref: 1
COCK ASSEMBLY,FUEL
€ 64.00
2
4434109370
ref: 2
GASKET,FUEL COCK
€ 8.00
3
4434509370
ref: 3
VALVE,FUEL COCK
€ 7.50
4
4435409370
ref: 4
WASHER, LEVER
€ 4.50
5
4434809370
ref: 5
GASKET,FUEL COCK
€ 4.50
6
0912806006
ref: 6
BOLT(6X20)
0912806006
€ 2.00
7
0916806010
ref: 7
GASKET
0916806010
€ 2.00
8
0934307114
ref: 8
HOSE
€ 0.00
9
0944019015
ref: 9
SPRING
€ 0.00
10
0934307115
ref: 10
HOSE
€ 0.00
11
0934307116
ref: 11
HOSE
€ 0.00
12
0940112401
ref: 12
CLAMP
€ 2.50
13
3481009300
ref: 13
GAUGE ASSEMBLY,FUEL LEVEL
€ 65.00
14
3482545100
ref: 14
GASKET,FUEL LEVEL GAUGE (NAS)
3482545100
€ 7.00
15
0110405108
ref: 15
BOLT
€ 1.50
16
0832121058
ref: 16
LOCK WASHER
0832121058
€ 2.00
17
3488534500
ref: 17
PLATE,FUEL DRAIN
3488534500
€ 20.50
18
3488834500
ref: 18
GASKET (NAS)
3488834500
€ 8.50
19
0211205088
ref: 19
SCREW
0211205088
€ 2.00
20
0832121058
ref: 20
LOCK WASHER
0832121058
€ 2.00
21
0934305165
ref: 21
HOSE,FUEL
0934305165
€ 13.00
22
0940108402
ref: 22
CLIP
0940108402
€ 1.50
23
3488909300
ref: 23
PROTECTOR, FUEL LEVEL GAUGE
€ 0.00
