Buy Suzuki XN Parts Online


FRONT DAMPER

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

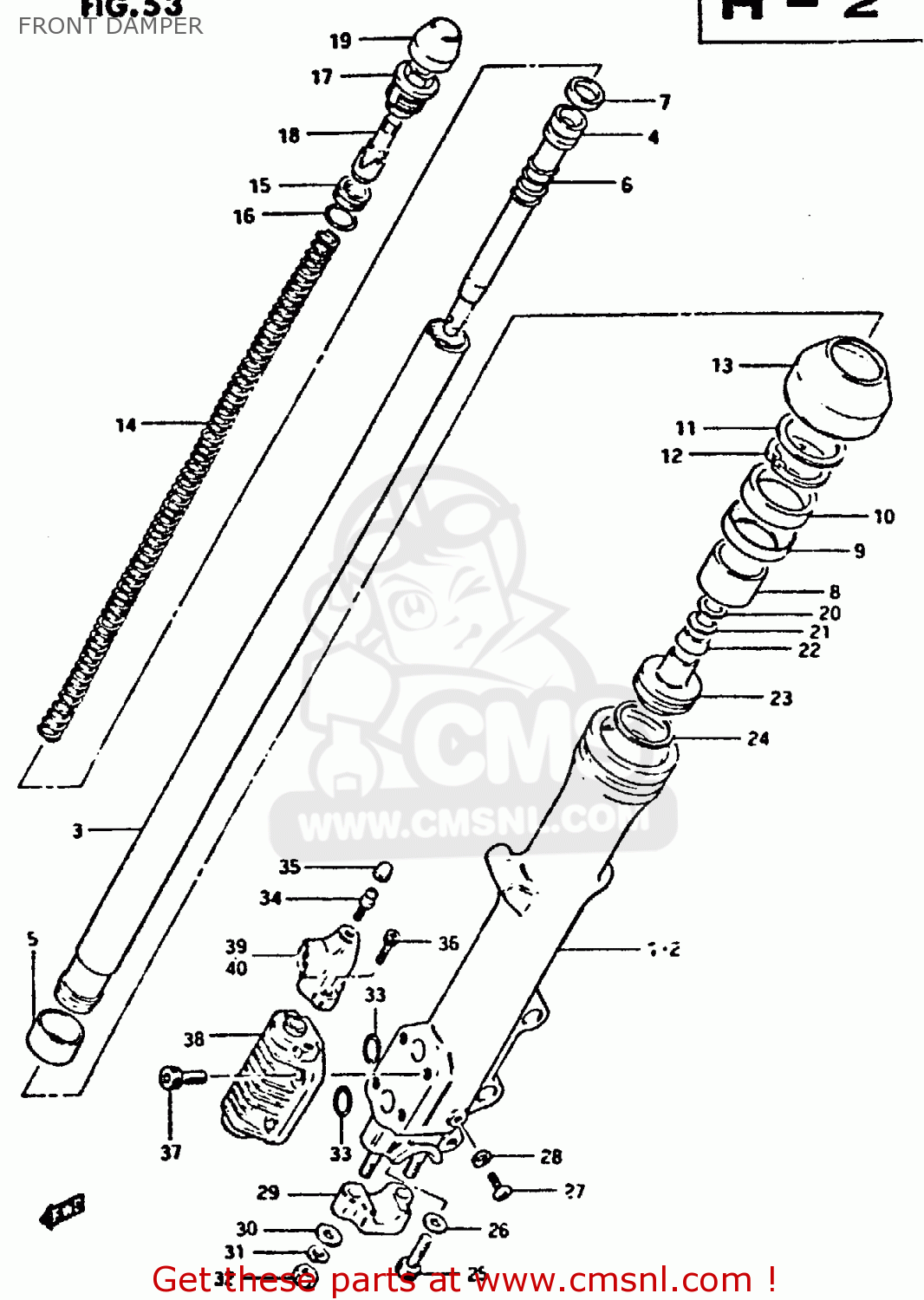

Front damper diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

FRONT DAMPER XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
FRONT DAMPER XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
FRONT DAMPER XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
prices are in EUR
ref
part #
description
quantity
0
5110309310
ref: 0
DAMPER ASSEMBLY,FRONT FORK,RIGHT
€ 0.00
0
5110409310
ref: 0
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5113009310
ref: 1
TUBE,OUTER,RIGHT
€ 238.50
2
5114009310
ref: 2
TUBE,FORK,LEFT,OUTER
€ 238.50
3
5111009310
ref: 3
TUBE,FORK,INNER
€ 212.00
4
5114609310
ref: 4
CYLINDER,FRONT FORK
€ 0.00
5
5112134210
ref: 5
PISTON
5112134210
€ 20.50
6
5177134210
ref: 6
SPRING REBOUND
€ 0.00
7
5119634210
ref: 7
RING,PISTON
5119634210
€ 6.50
8
5115234210
ref: 8
GUIDE,FORK INNER TUBE
5115234210
€ 17.50
9
5116834210
ref: 9
SPACER,SEAL
€ 5.50
10
5115334210
ref: 10
OIL SEAL,FRONT FORK
€ 15.00
11
5115834320
ref: 11
RING,BACKUP
5115834320
€ 4.00
12
5155634320
ref: 12
CIRCLIP,INNTERNAL
5155634320
€ 7.00
13
5157145200
ref: 13
BOOT
€ 20.50
14
5117109310
ref: 14
SPRING,FRONT
€ 28.50
15
5117234300
ref: 15
SEAT,FRONT FORK SPRING
5117234300
€ 7.50
16
5111734210
ref: 16
O RING
5111734210
€ 5.00
17
5135134301
ref: 17
CAP,FORK INNER TUBE
5135134301
€ 33.00
18
5118545451
ref: 18
ADJUSTER,SPRING
5118545451
€ 16.00
19
5118945450
ref: 19
CAP
5118945450
€ 7.00
20
5112634310
ref: 20
VALVE
5112634310
€ 2.50
21
5112734310
ref: 21
SPRING,VALVE
5112734310
€ 3.00
22
5112534310
ref: 22
VALVE,OIL LOCK PIEACE
€ 7.00
23
5119534320
ref: 23
PIECE,OIL LOCK
€ 24.00
24
5112334320
ref: 24
RING,PISTON
5112334320
€ 14.50
25
5114748130
ref: 25
BOLT(8X27)
5114748130
€ 3.50
26
5114831030
ref: 26
GASKET (NAS)
5114831030
€ 4.00
27
0211204068
ref: 27
SCREW 4X6
0211204068
€ 2.00
28
5118333030
ref: 28
GASKET (NAS)
5118333030
€ 6.50
29
5113231030
ref: 29
HOLDER,AXLE
5113231030
€ 31.50
30
0832221088
ref: 30
WASHER
0832221088
€ 2.00
31
0832121088
ref: 31
LOCK WASHER
0832121088
€ 2.00
32
0831012088
ref: 32
NUT
0831012088
€ 2.00
33
5179911420
ref: 33
O RING,FR FORK
€ 2.00
34
5177811420
ref: 34
BREATHER
5177811420
€ 8.50
35
5177911420
ref: 35
CAP
5177911420
€ 4.50
36
5179711420
ref: 36
BOLT
€ 2.50
37
5179611420
ref: 37
BOLT
€ 3.00
38
5170009810
ref: 38
MODULATOR PLANGER SET
€ 85.50
39
5170009820
ref: 39
MODULATOR PLANGER SET
€ 0.00
40
5170009830
ref: 40
MODULATOR PLANGER SET
€ 72.00
