FRONT MASTER CYLINDER

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

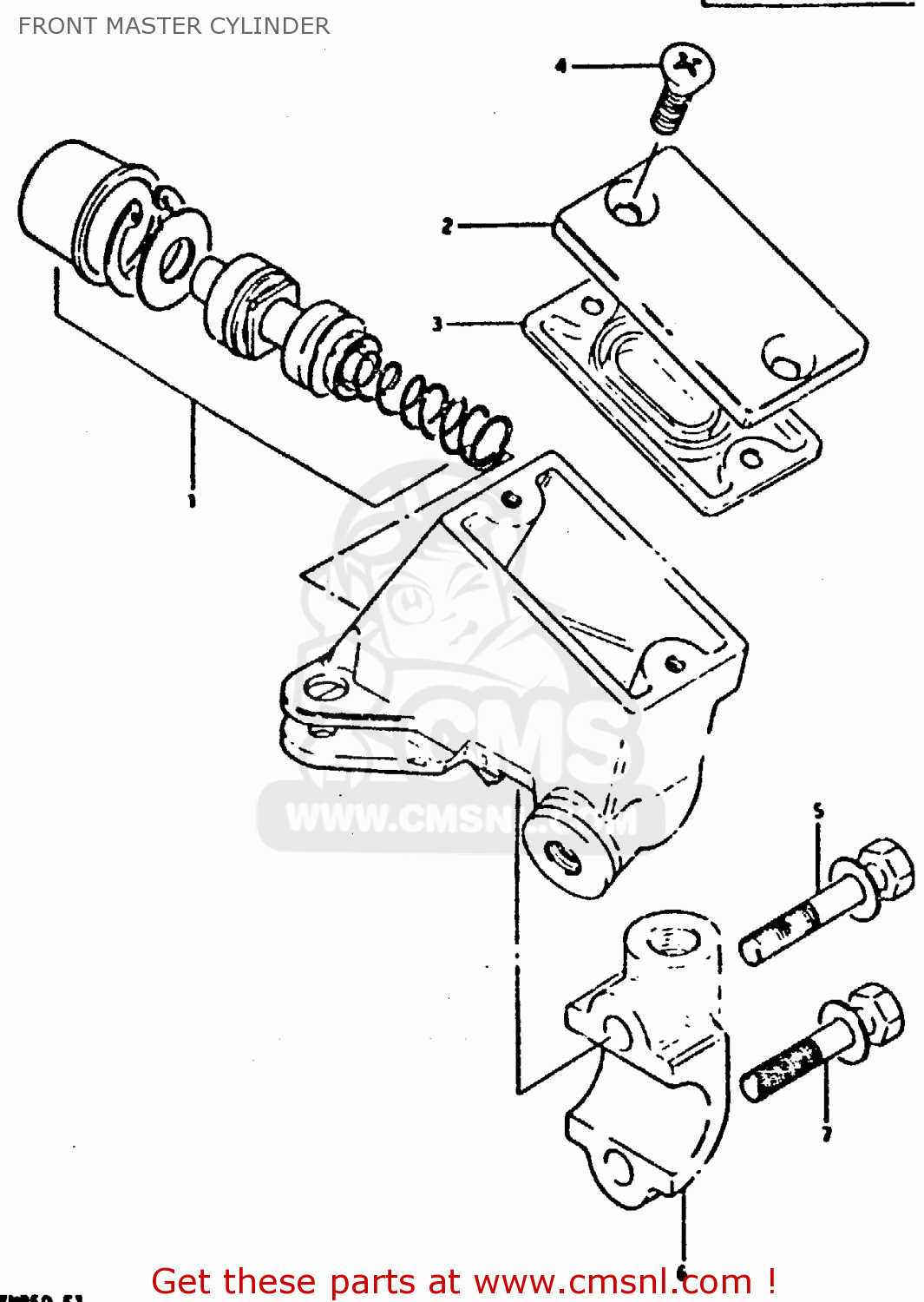

Front master cylinder diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

5960049310
ref: 0

CYLINDER ASSY, MASTER

€ 215.50

5960049360
ref: 0
E4

CYLINDER ASSEMBLY,FRONT MASTER

€ 0.00

5960049830
ref: 1

PISTON & CUP SET

€ 46.50

2-1

5966949300
ref: 2-1

CAP

€ 23.50

2-2

5966949350
ref: 2-2
E4

CAP,MASTER CYLINDER,REAR

€ 15.00

5966749300
ref: 3

DIAPHRAGM,MASTER CYLINDER

€ 15.50

5969149310
ref: 4

SCREW

€ 6.50

5969449310
ref: 5

BOLT,MASTER CYLINDER H

€ 3.50

5967149000
ref: 6

HOLDER

€ 22.50

5969349310
ref: 7

BOLT,MASTER CYLINDER H

€ 3.00
