STAND (E16, E18, E22, E26)

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

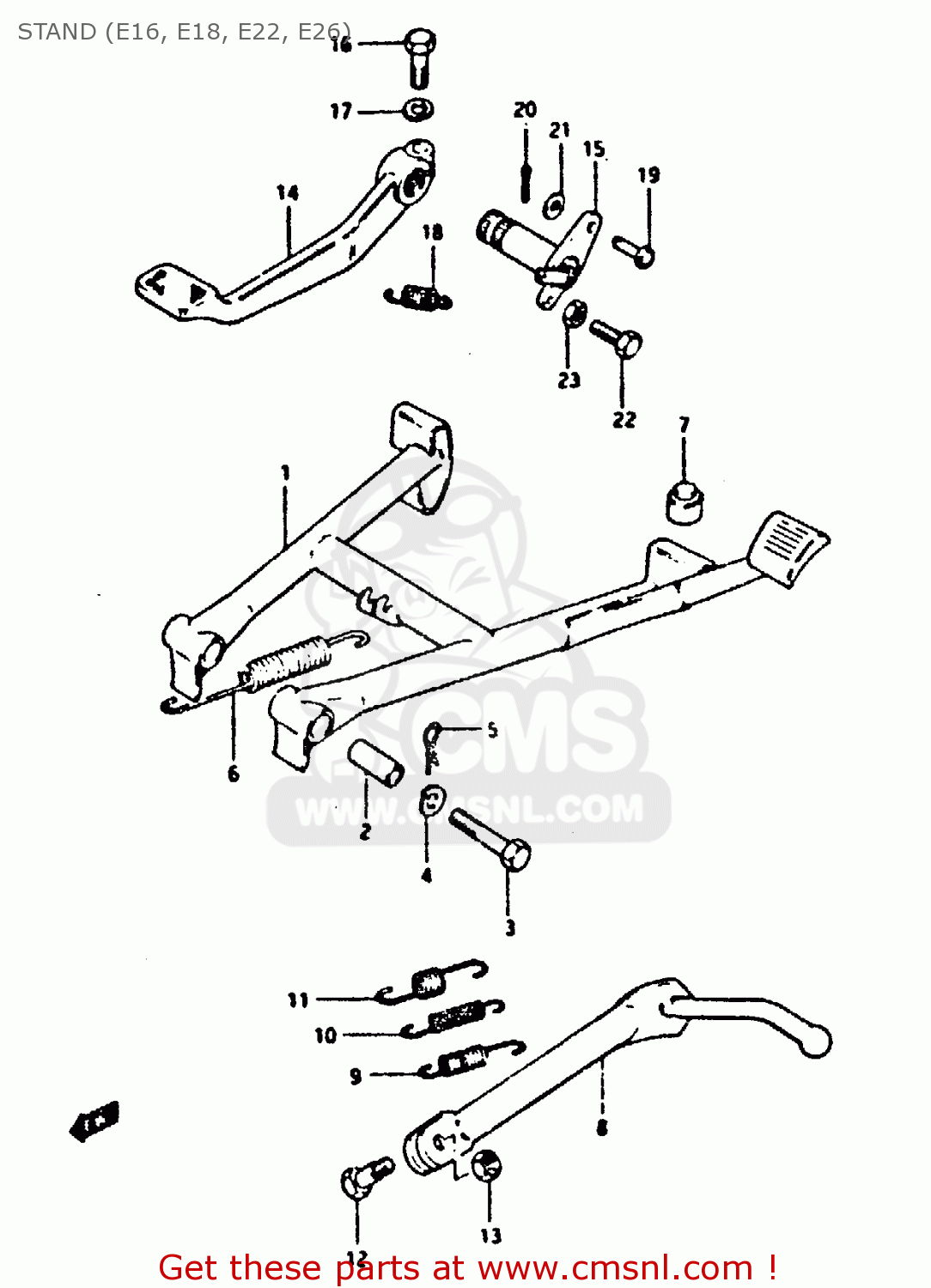

Stand (e16, e18, e22, e26) diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

1-1

4210009300
ref: 1-1
E16, E18

STAND,CENTER

€ 106.00

1-2

4210009310
ref: 1-2
E22, E26

STAND, CENTER

€ 0.00

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

0910110018
ref: 3

BOLT

€ 5.50

0832121108
ref: 4

LOCK WASHER

€ 2.00

0938510001
ref: 5

CLIP

€ 1.50

6-1

0944318006
ref: 6-1
E16, E18

SPRING

€ 5.50

6-2

0944318007
ref: 6-2
E2, E26

SPRING

€ 0.00

0932110001
ref: 7

CUSHION

€ 2.50

4231009310
ref: 8

STAND, PROP

€ 0.00

0944317006
ref: 9
E16, E18, E26

SPRING

€ 4.50

0944311008
ref: 10
E22

SPRING

€ 5.50

0944319002
ref: 11
E22

SPRING, OUTER

€ 4.00

0911110019
ref: 12

BOLT L:30

€ 4.50

0831022108
ref: 13

NUT

€ 2.50

4311109300
ref: 14

PEDAL,BRAKE

€ 60.50

4312009300
ref: 15

ARM,BRAKE PEDAL

€ 0.00

0120408257
ref: 16

BOLT

€ 2.00

0832121088
ref: 17

LOCK WASHER

€ 2.00

0944314013
ref: 18

SPRING

€ 21.50

0920006029
ref: 19

PIN

€ 1.50

0411120158
ref: 20

PIN

€ 1.50

0832221068
ref: 21

WASHER

€ 2.00

0910006055
ref: 22

BOLT(6X25)

€ 2.50

0831011068
ref: 23

NUT

€ 2.50
