GENERATOR

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

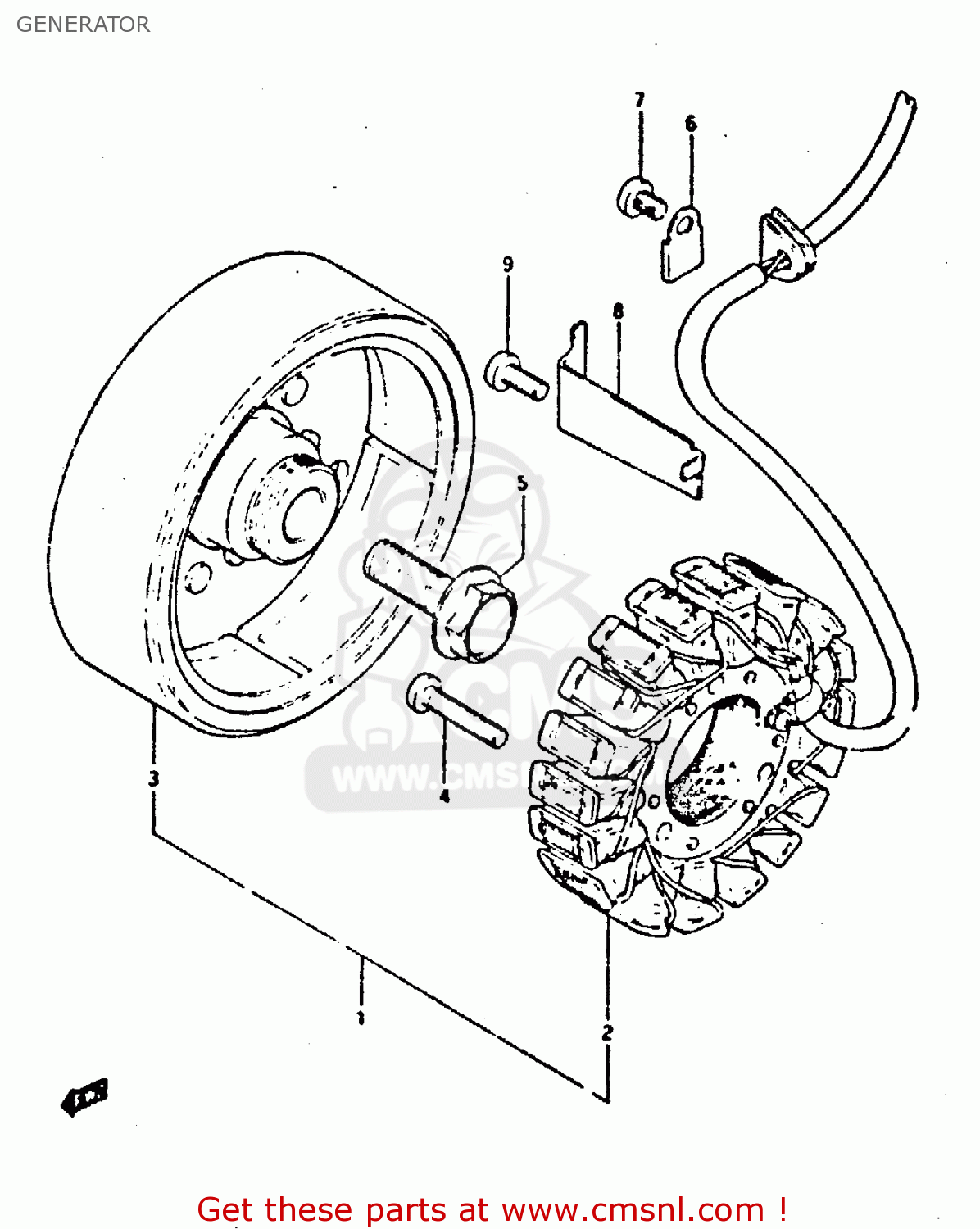

Generator diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

3140009300
ref: 1

ALTERNATOR ASSEMBLY

€ 405.50

3140109300
ref: 2

STARTER ASSY

€ 405.50

3140209300
ref: 3

ROTOR ASSEMBLY

€ 403.50

0211206308
ref: 4

SCREW 6X30

€ 2.50

0910314001
ref: 5

BOLT(14X43)

€ 7.00

3149745000
ref: 6

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205088
ref: 7

SCREW

€ 2.00

3149845000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206108
ref: 9

SCREW

€ 1.50
