SIGNAL GENERATOR

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

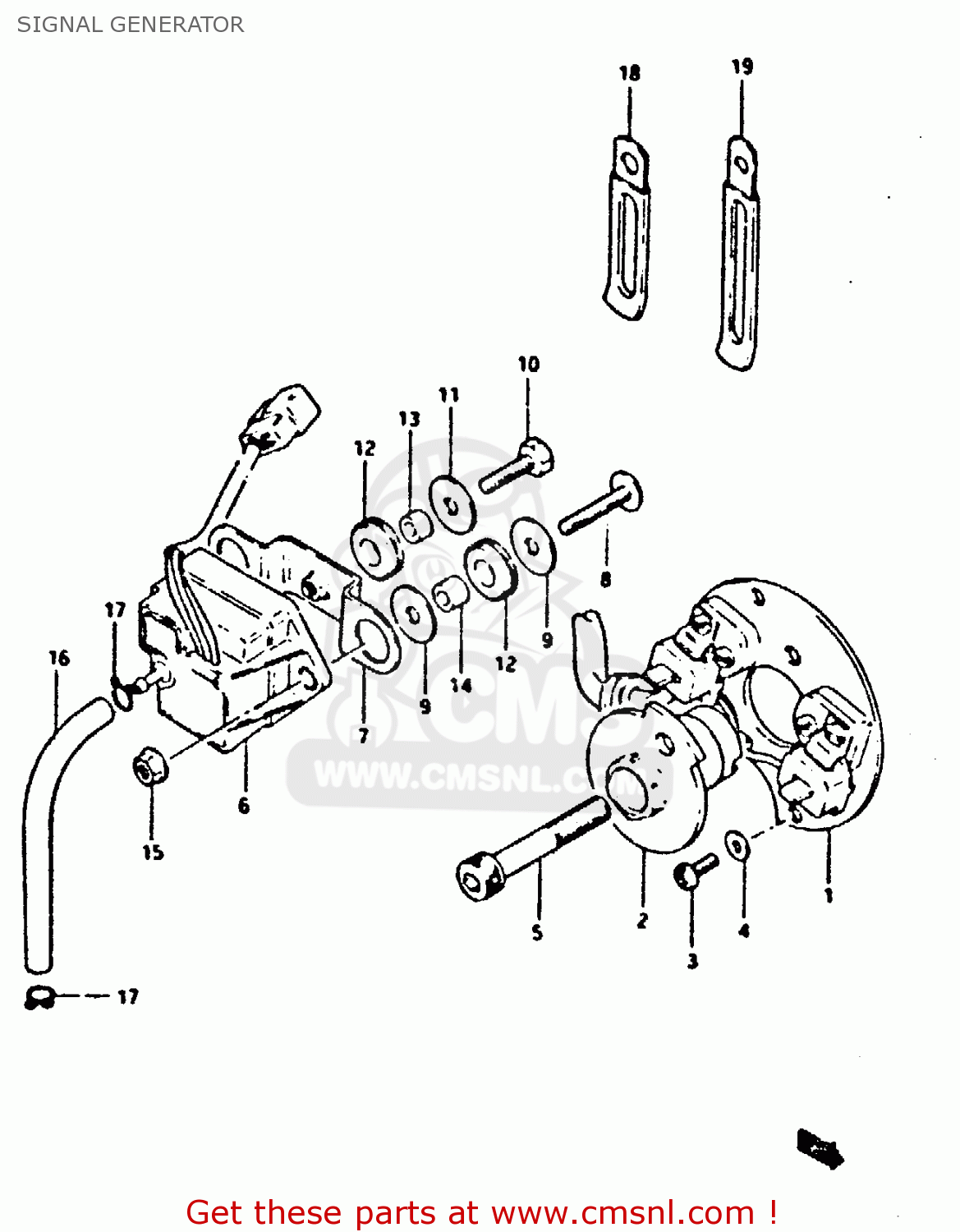

Signal generator diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

3311009300
ref: 1

GENERATOR ASSEMBLY,SIGNAL

€ 262.50

3312009300
ref: 2

GOVERNOR ASSEMBLY

€ 90.50

0912505024
ref: 3

SCREW(5X12)

€ 2.00

0916005028
ref: 4

WASHER(5.5X10X0.8)

€ 2.00

0910608011
ref: 5

BOLT

€ 3.00

3324009300
ref: 6

SENSOR ASSEMBLY,IGNITER

€ 660.50

3324109300
ref: 7

BRACKET,BOOST SENSOR

€ 0.00

0214206258
ref: 8

SCREW

€ 3.00

0916006020
ref: 9

WASHER

€ 2.00

0110706168
ref: 10

BOLT, UPPER

€ 3.00

0916006020
ref: 11

WASHER

€ 2.00

0932008007
ref: 12

CUSHION

€ 4.00

0918006038
ref: 13

SPACER(6.1X9X7.5)

€ 2.00

0918006011
ref: 14

SPACER (6.1X9X9)

€ 2.00

0831616068
ref: 15

NUT

€ 2.50

0934303043
ref: 16

HOSE

€ 12.50

0940105402
ref: 17

CLIP

€ 1.00

0940406401
ref: 18

CLAMP L:35

€ 2.50

0940408402
ref: 19

CLAMP

€ 3.50
