CYLINDER HEAD COVER

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

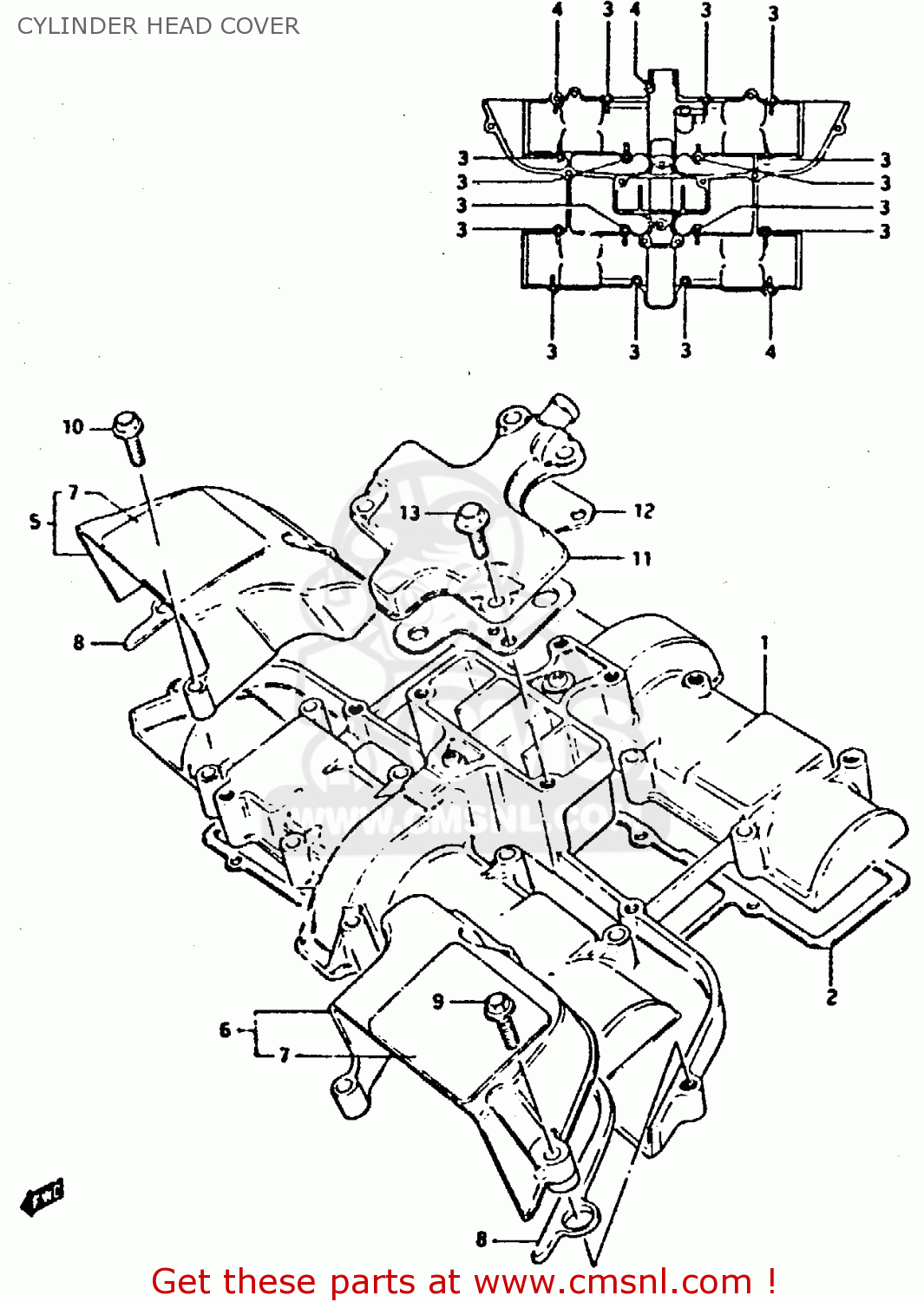

Cylinder head cover diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

1117109305
ref: 1

COVER,CYLINDER HEAD

€ 101.50

1117309300
ref: 2

GASKET,CYLINDER HEAD COVER (MCA)

€ 25.50

0151706408
ref: 3

BOLT

€ 2.50

0151706458
ref: 4

BOLT,UNDER

€ 2.50

1120009841
ref: 5

COVER,AIR GUIDE,RIGHT

€ 70.50

1120009851
ref: 6

CYLINDER

€ 0.00

1127409300
ref: 7

CAP,CYLINDER COVER NO

€ 0.00

1127309301
ref: 8

CUSHION

€ 0.00

0151706308
ref: 9

BOLT

€ 2.00

0151706358
ref: 10

BOLT 6X35

€ 2.50

1117647012
ref: 11

COVER,BREATHER

€ 32.50

1117747001
ref: 12

GASKET (MCA)

€ 19.50

0151706208
ref: 13

BOLT,REAR

€ 2.50
