FRAME

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

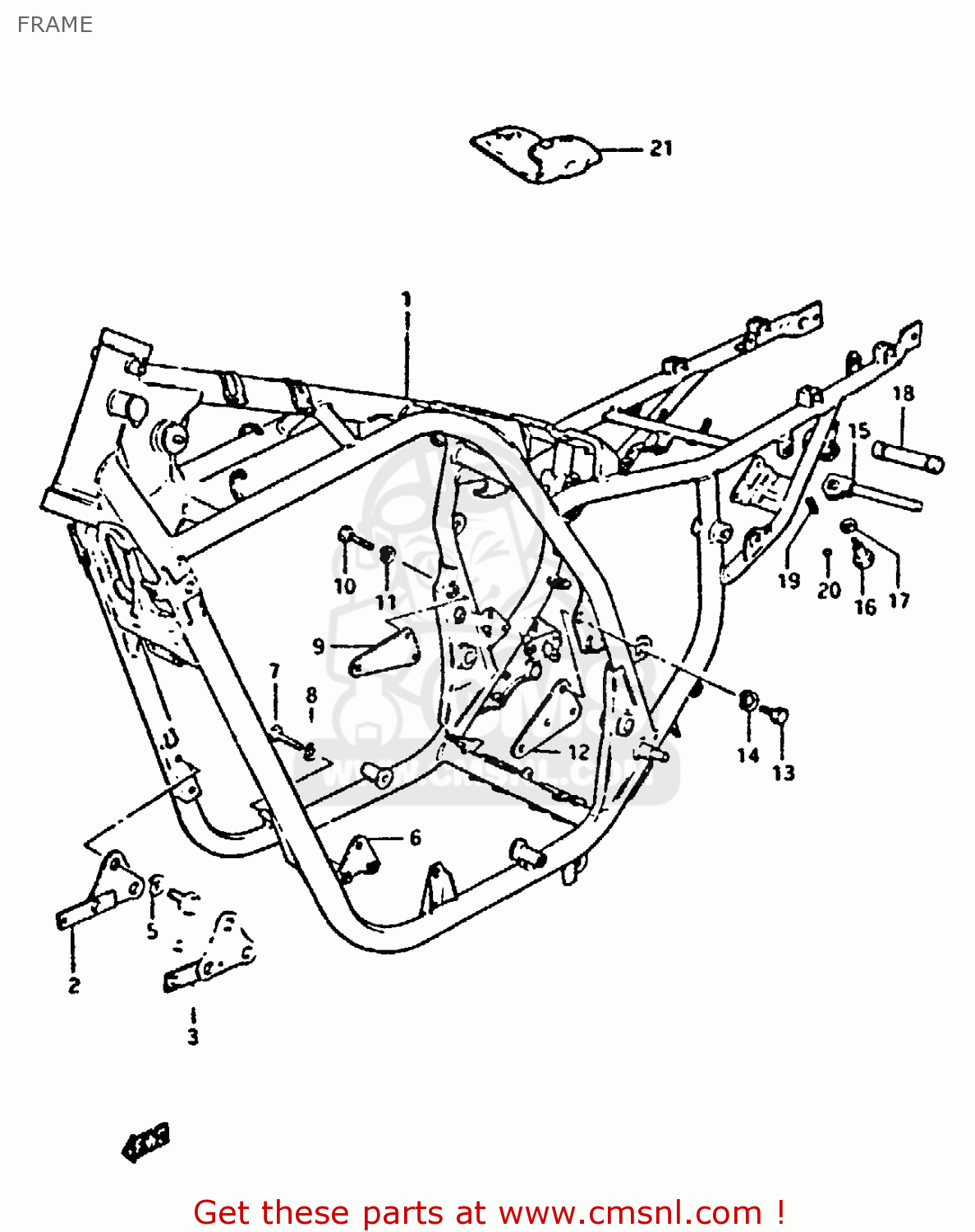

Frame diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

FRAME XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
FRAME XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
FRAME XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48
prices are in EUR
ref
part #
description
quantity
1-1
4110009301019
ref: 1-1
FRAME
€ 3.50
1-2
4110009341019
ref: 1-2
E15, E17
FRAME (BLACK)
€ 0.00
1-3
4110009330019
ref: 1-3
E16, E18
FRAME (BLACK)
€ 30.50
1-4
4110009320019
ref: 1-4
E22, E26
FRAME (BLACK)
€ 0.00
2
4191009300019
ref: 2
PLATE COMP,ENGINE MOUNTING
€ 0.00
3
4192009300019
ref: 3
PLATE,ENGINE MOUNTING
€ 0.00
4
0110708168
ref: 4
BOLT
€ 2.00
5
0832121088
ref: 5
LOCK WASHER
0832121088
€ 2.00
6
4193009300019
ref: 6
PLATE,ENGINE MOUNTING
€ 0.00
7
0110708508
ref: 7
BOLT 8X50
€ 3.00
8
0832121088
ref: 8
LOCK WASHER
0832121088
€ 2.00
9
4197109300019
ref: 9
PLATE,ENGINE MOUNTING
€ 0.00
10
0110708508
ref: 10
BOLT 8X50
€ 3.00
11
0832121088
ref: 11
LOCK WASHER
0832121088
€ 2.00
12
4198009300019
ref: 12
PLATE,ENGINE MOUNTING
€ 0.00
13
0110708168
ref: 13
BOLT
€ 2.00
14
0832121088
ref: 14
LOCK WASHER
0832121088
€ 2.00
15
4161009300
ref: 15
GRIP COMP,FRAME HANDLE
€ 10.00
16
0911108053
ref: 16
BOLT
€ 0.00
17
0832221108
ref: 17
WASHER
0832221108
€ 2.50
18
4161509300
ref: 18
RUBBER
€ 0.00
19
0944005003
ref: 19
SPRING
0944005003
€ 1.50
20
0611107004
ref: 20
BALL
0611107004
€ 1.50
21
0980000260
ref: 21
TOOL SET
€ 50.00
