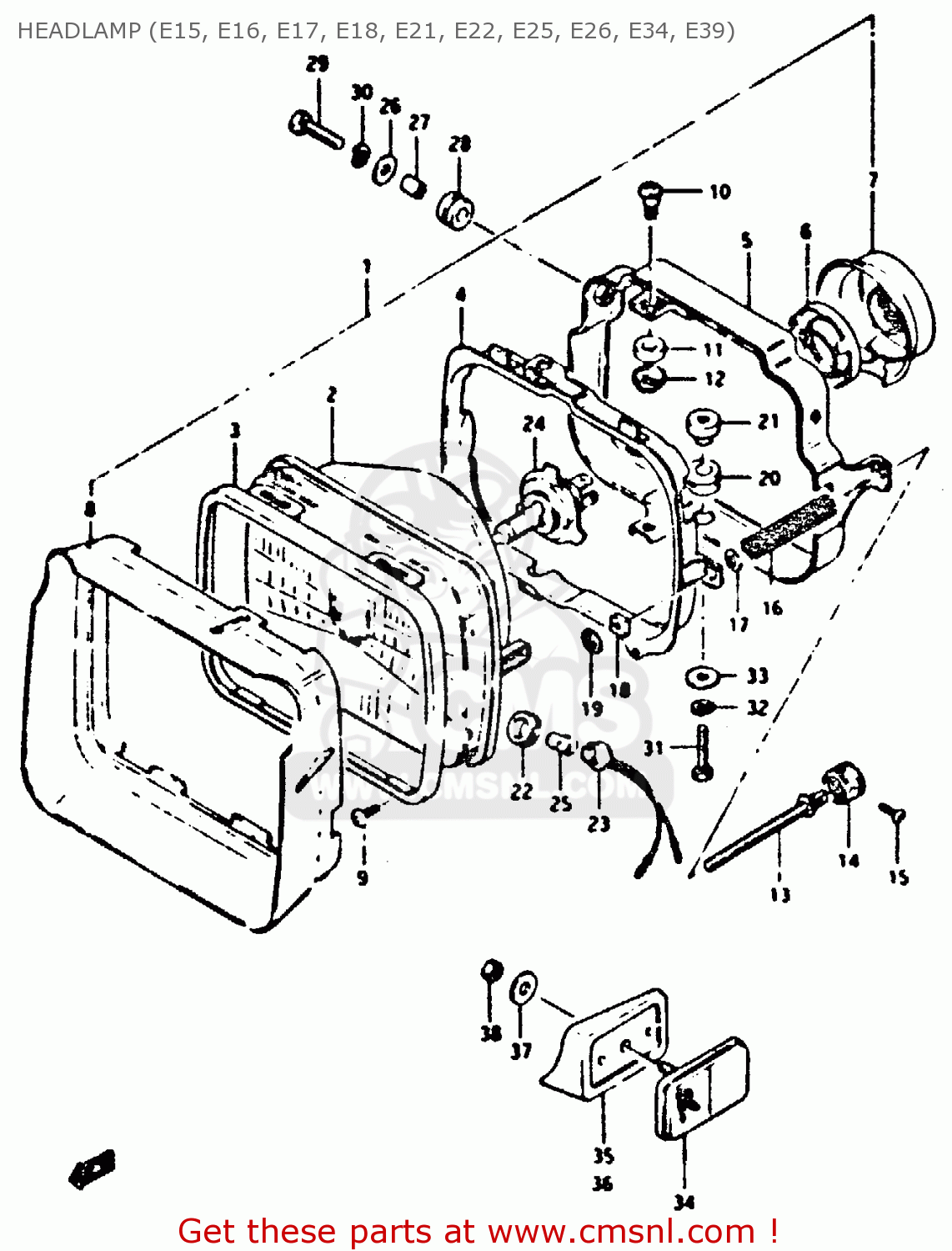

HEADLAMP (E15, E16, E17, E18, E21, E22, E25, E26, E34, E39)

ref

part #

description

quantity

1

3510009350999
ref: 1

HEADLAMP ASSY

€ 0.00

2

3512149240
ref: 2

LAMP UNIT

€ 159.00

3

3512749320
ref: 3

RETAINER

€ 37.50

4

3513049320
ref: 4

RING,MOUNTING

€ 30.00

5

3538149320
ref: 5

HOUSING

€ 42.50

6

3513649200
ref: 6

HOLDER

€ 8.50

7

3517349200
ref: 7

COVER,HEADLAMP SOCKET

€ 12.50

8

3512909300
ref: 8

SHADE,HEADLAMP UNIT

€ 31.50

9

0211203088
ref: 9

SCREW

€ 1.50

10

3513625611
ref: 10

SCREW

€ 4.00

11

3513345600
ref: 11

SPACER

€ 3.50

12

3513525611
ref: 12

NUT,ADJUSTING

€ 2.50

13

3515149320
ref: 13

SCREW,ADJUSTING

€ 16.50

14

3516149320
ref: 14

KNOB,ADJUSTER

€ 6.00

15

0211203108
ref: 15

SCREW

€ 1.50

16

3515449320
ref: 16

SPRING

€ 3.00

17

3515749320
ref: 17

WASHER

€ 2.00

18

3515249320
ref: 18

NUT

€ 0.00

19

3515249330
ref: 19

NUT,HEADLAMP ADJUSTER

€ 2.00

20

3538249321
ref: 20

CUSHION

€ 0.00

21

3538349321
ref: 21

NUT

€ 0.00

22

3611622630
ref: 22

JOINT,RUBBER

€ 5.00

23

3611849320
ref: 23

SOCKET

€ 12.00

24

0947112060
ref: 24
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

25

0947112063
ref: 25
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

26

0916006007
ref: 26

WASHER

€ 2.00

27

0918006044
ref: 27

SPACER (6.1X8X9.5)

€ 2.50

28

0932008001
ref: 28

CUSHION

€ 3.50

29

0110706258
ref: 29

BOLT

€ 2.00

30

0832121068
ref: 30

LOCK WASHER

€ 2.50

31

0912806030
ref: 31

SCREW(6X20)

€ 0.00

32

0832121068
ref: 32

LOCK WASHER

€ 2.50

33

0832221068
ref: 33

WASHER

€ 2.00

34

3595009330
ref: 34
E39

REFLECTOR,REFLEX

€ 0.00

35

3595409330
ref: 35
E39

SPACER,FRONT SIDE REFLECTOR

€ 0.00

36

3595509330
ref: 36
E39

SPACER,FRONT SIDE REFLECTOR

€ 0.00

37

0916005013
ref: 37
E39

WASHER(5.2X16X1)

€ 1.50

38

0831011058
ref: 38
E39

NUT

€ 2.50
