REAR COMBINATION LAMP (E2, E4, E21)

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

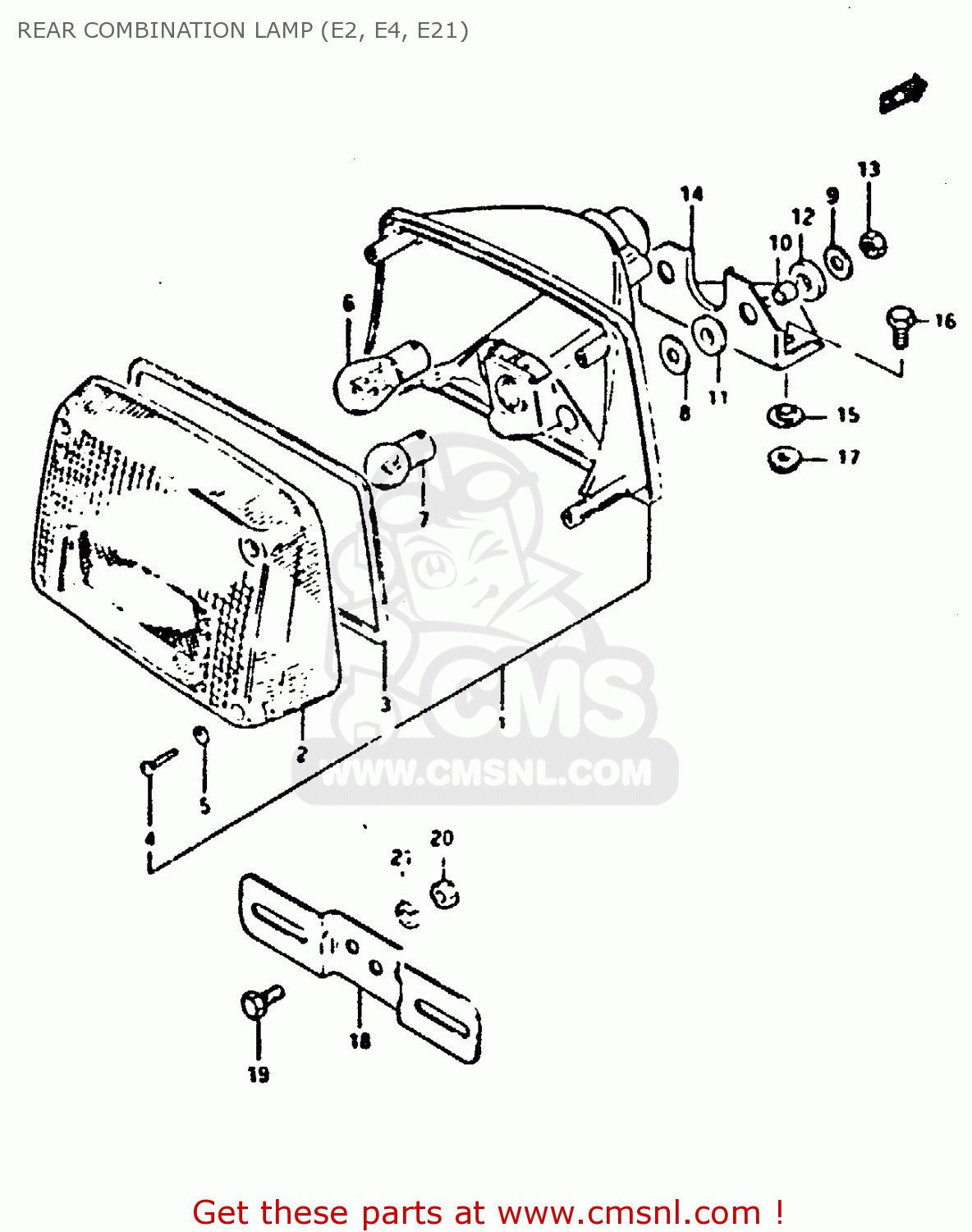

Rear combination lamp (e2, e4, e21) diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

3571049023
ref: 1

LAMP, REAR COMBINATION

€ 178.00

3571249084
ref: 2

LENS,RR COMBI

€ 43.50

3571349030
ref: 3

GASKET (NAS)

€ 12.50

3562749030
ref: 4

SCREW,REAR COMBINATION LAMP

€ 1.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

0947112057
ref: 6

BULB 12V21/5W

€ 6.00

0947112058
ref: 7

BULB

€ 4.00

0916006007
ref: 8

WASHER

€ 2.00

0916006012
ref: 9

WASHER(6,5X22X1.6)

€ 2.00

0918006038
ref: 10

SPACER(6.1X9X7.5)

€ 2.00

0932009003
ref: 11

CUSHION

€ 2.00

0932009004
ref: 12

CUSHION

€ 2.50

0831626068
ref: 13

NUT 6MM

€ 2.00

3572633200
ref: 14

BRACKET,RR COMBINATION LAMP

€ 6.50

0916906028
ref: 15

WASHER

€ 2.00

0110706168
ref: 16

BOLT, UPPER

€ 3.00

0831626068
ref: 17

NUT 6MM

€ 2.00

3592733200
ref: 18

BRACKET, LICENSE PLATE

€ 10.00

0151706208
ref: 19

BOLT,REAR

€ 2.50

0831011068
ref: 20

NUT

€ 2.50

0832121068
ref: 21

LOCK WASHER

€ 2.50

REAR COMBINATION LAMP (E2, E4, E21)

all assemblies
