REAR SWINGING ARM

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

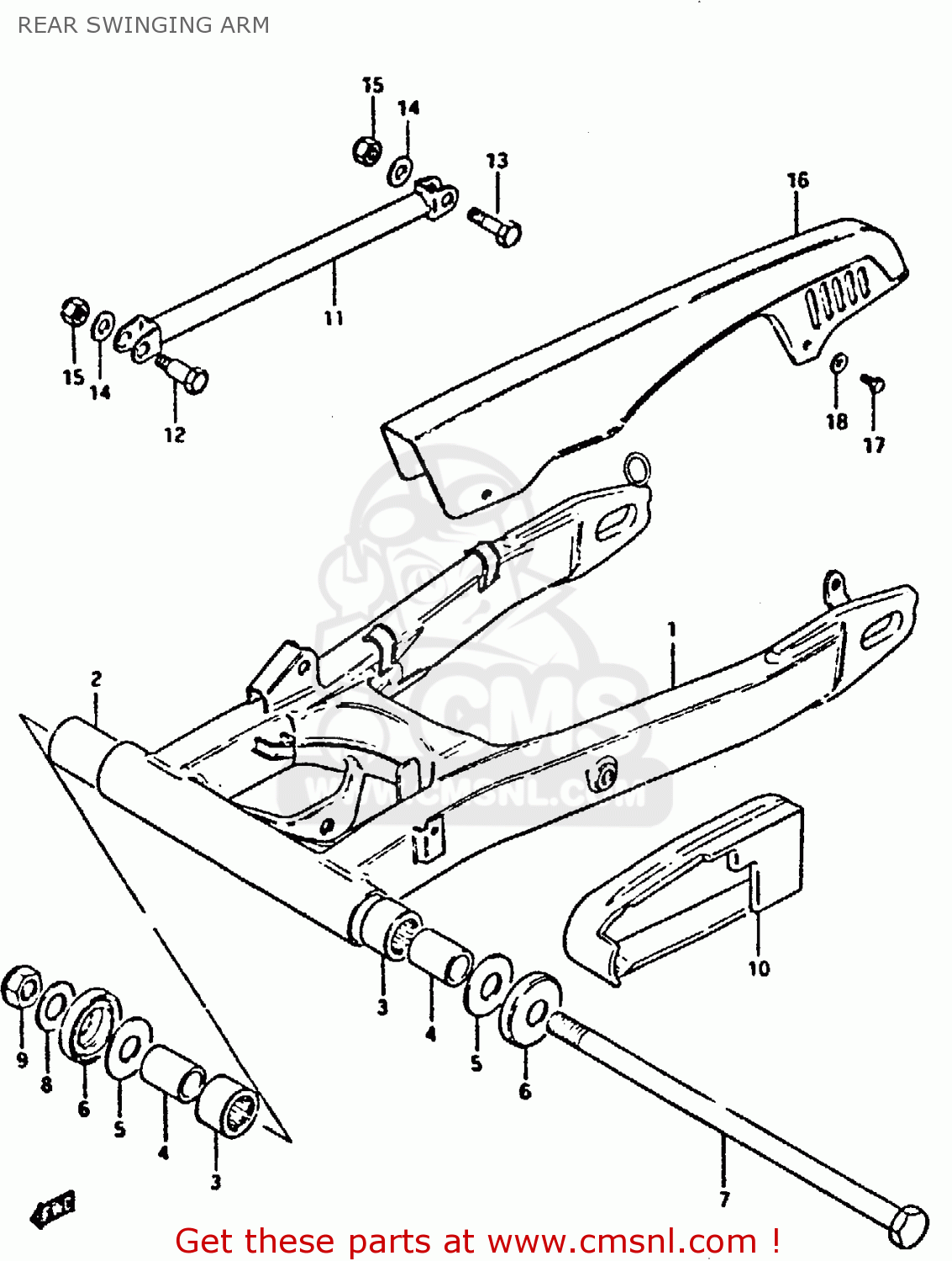

Rear swinging arm diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

610000930108C
ref: 1

ARM,REAR SWING

€ 248.00

6128209300
ref: 2

SPACER,SWING ARM,CENTER

€ 14.50

0926325024
ref: 3

BEARING(25X33X30)

€ 31.50

6125149000
ref: 4

SPACER,RR SWGARM PIVOT

€ 17.50

0821116381
ref: 5

WASHER

€ 2.50

6126249000
ref: 6

COVER,RR SWGARM DUST SEAL

€ 17.50

6121109300
ref: 7

SHAFT,REAR SWING ARM

€ 0.00

0832211168
ref: 8

WASHER

€ 2.00

0915916007
ref: 9

NUT

€ 10.50

6127309300
ref: 10

BUFFER,CHAIN TOUCH DEFLECTOR

€ 0.00

6431049000019
ref: 11

LINK,REAR TORQUE

€ 16.00

0911110011
ref: 12

BOLT

€ 8.00

0910110017
ref: 13

BOLT(10X39)

€ 5.00

0832211108
ref: 14

WASHER

€ 2.50

0831921108
ref: 15

NUT

€ 3.00

6131009301291
ref: 16

CASE,CHAIN

€ 49.50

0910006107
ref: 17

BOLT

€ 0.00

0832221068
ref: 18

WASHER

€ 2.00

REAR SWINGING ARM

all assemblies
