TURBOCHARGER

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

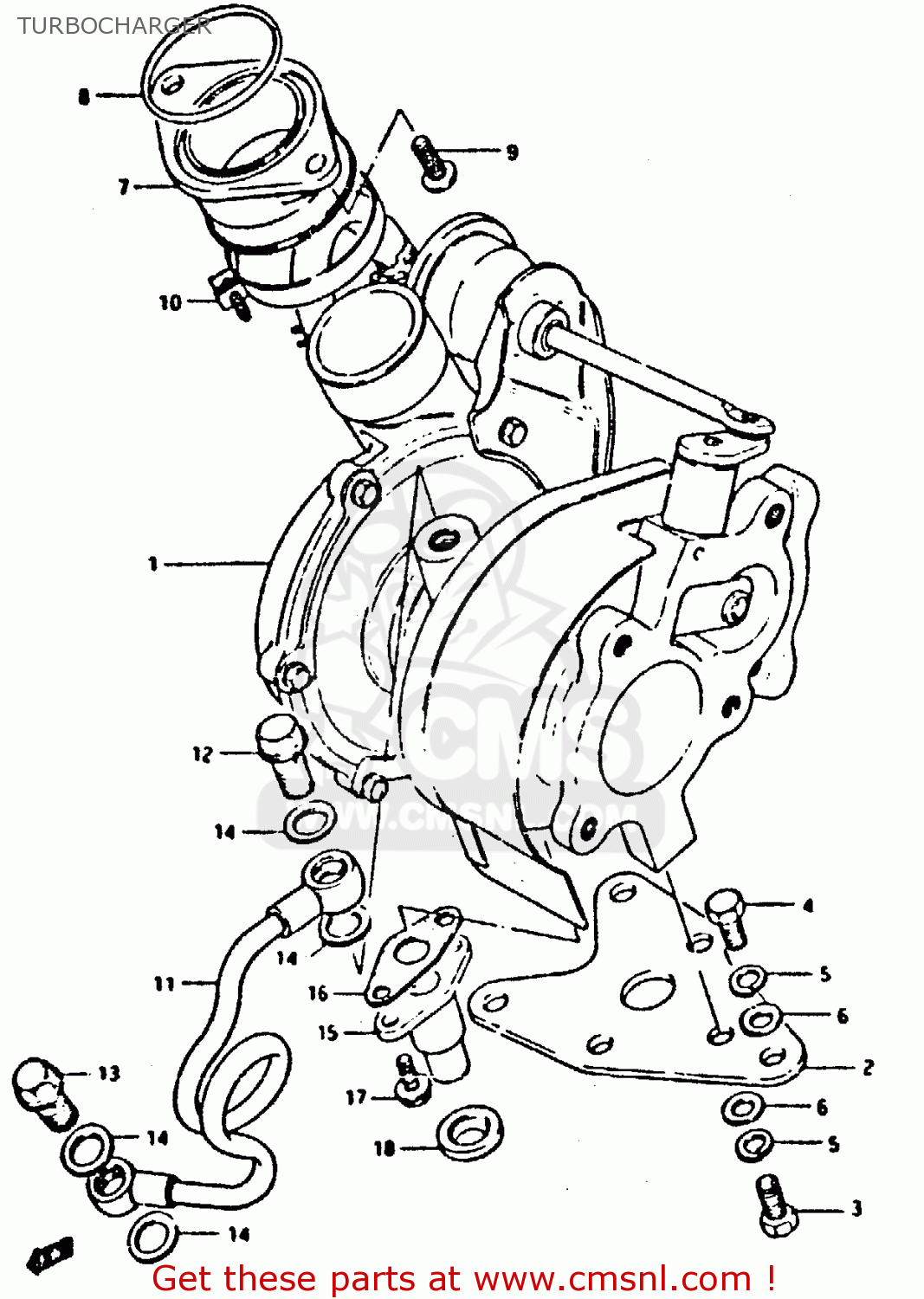

Turbocharger diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

1390009300
ref: 1

CHARGER ASSEMBLY,TURBO

€ 3,284.50

1391009310
ref: 2

CHARGER ASSEMBLY,TURBO

€ 23.50

0110708168
ref: 3

BOLT

€ 2.00

0110708208
ref: 4

BOLT

€ 3.00

0832121088
ref: 5

LOCK WASHER

€ 2.00

0832211088
ref: 6

WASHER

€ 2.00

1392009300
ref: 7

COVER

€ 0.00

0928040007
ref: 8

O-RING

€ 3.00

0211206168
ref: 9

SCREW

€ 2.50

0940250306
ref: 10

CLAMP

€ 6.00

1393009301
ref: 11

TANK COMP,OIL CATCH

€ 0.00

0936010011
ref: 12

BOLT UNION

€ 0.00

0936010012
ref: 13

BOLT UNION

€ 0.00

0916810028
ref: 14

GASKET(10X15X1)

€ 2.00

1395109310
ref: 15

CONNECTOR, OIL OUTLET

€ 81.50

1395209300
ref: 16

GASKET (MCA)

€ 1.50

0151706168
ref: 17

BOLT

€ 1.50

0928220004
ref: 18

OIL SEAL

€ 10.00
