FUEL TANK

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

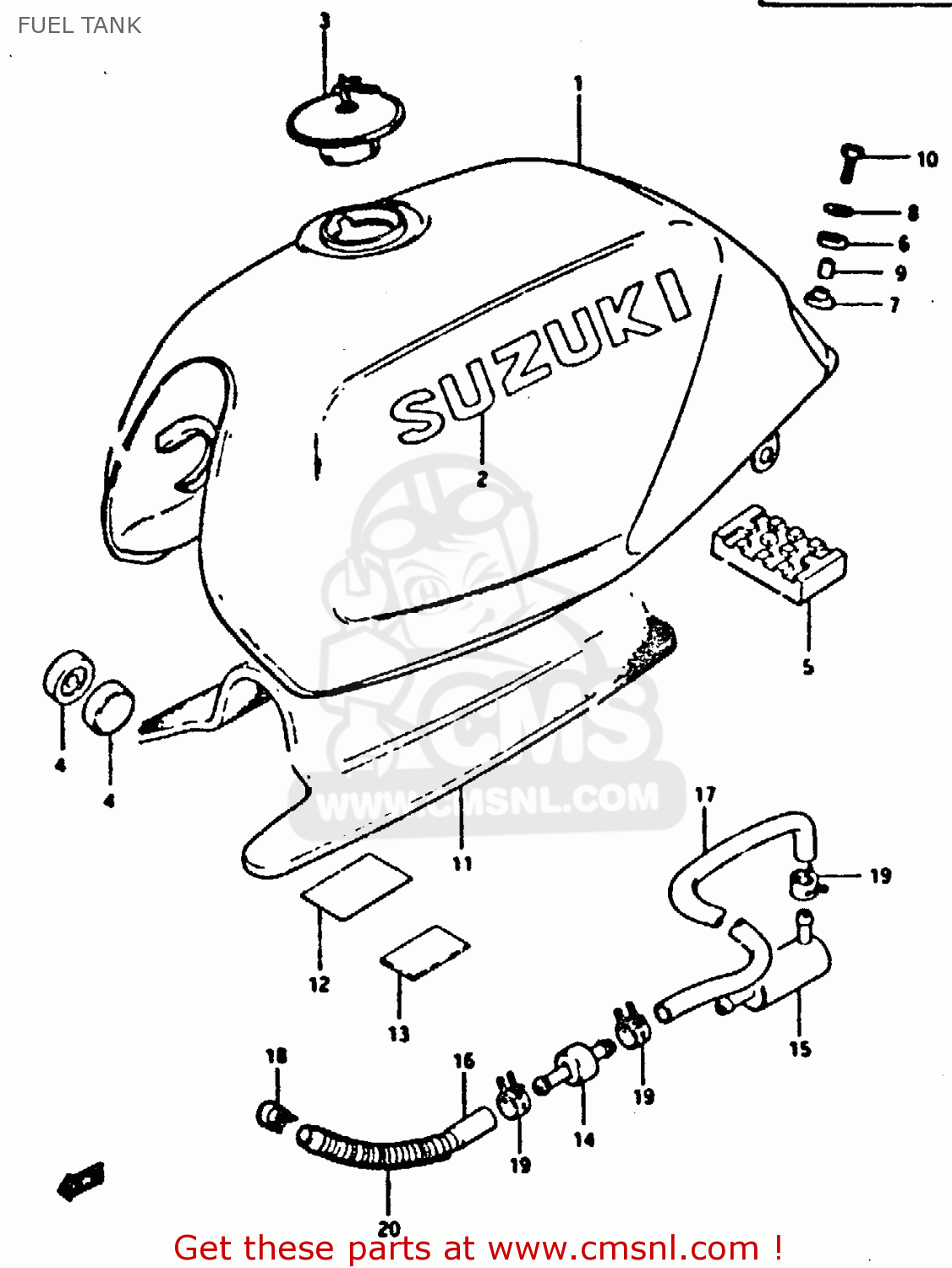

Fuel tank diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

1-1

441000986015K
ref: 1-1

TANK ASSEMBLY,FUEL

€ 447.50

1-2

441000987015K
ref: 1-2
E4

TANK, FUEL (SILVER)

€ 0.00

6811109300765
ref: 2

EMBLEM

€ 19.50

4420009300KEY
ref: 3

CAP ASSEMBLY,FUEL TANK

€ 85.00

0932910007
ref: 4

CUSHION

€ 3.00

4454134500
ref: 5

CUSHION,FUEL TANK CTR

€ 13.00

0932014013
ref: 6

CUSHION

€ 3.00

0932010020
ref: 7

CUSHION

€ 4.00

0916006004
ref: 8

WASHER (6.5X24X1.6)

€ 1.50

0918006072
ref: 9

SPACER

€ 2.00

0110706308
ref: 10

BOLT

€ 2.50

4455509300
ref: 11

CUSHION, FUEL TANK INNER

€ 0.00

4451409300
ref: 12

TAPE,FUEL TANK CUSHION

€ 0.00

4451809300
ref: 13

PLATE,FUEL TANK CUSHION

€ 0.00

4449009300
ref: 14

CHECK VALVE,BREATHER

€ 18.00

4474009300
ref: 15

CANISTER, BRETHER HOSE

€ 19.50

0934305226
ref: 16

HOSE

€ 22.00

0934307118
ref: 17

HOSE

€ 0.00

0940111405
ref: 18

CLAMP

€ 2.50

0940112401
ref: 19

CLAMP

€ 2.50

0944013016
ref: 20

SPRING

€ 14.50
