FRAME COVER

XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

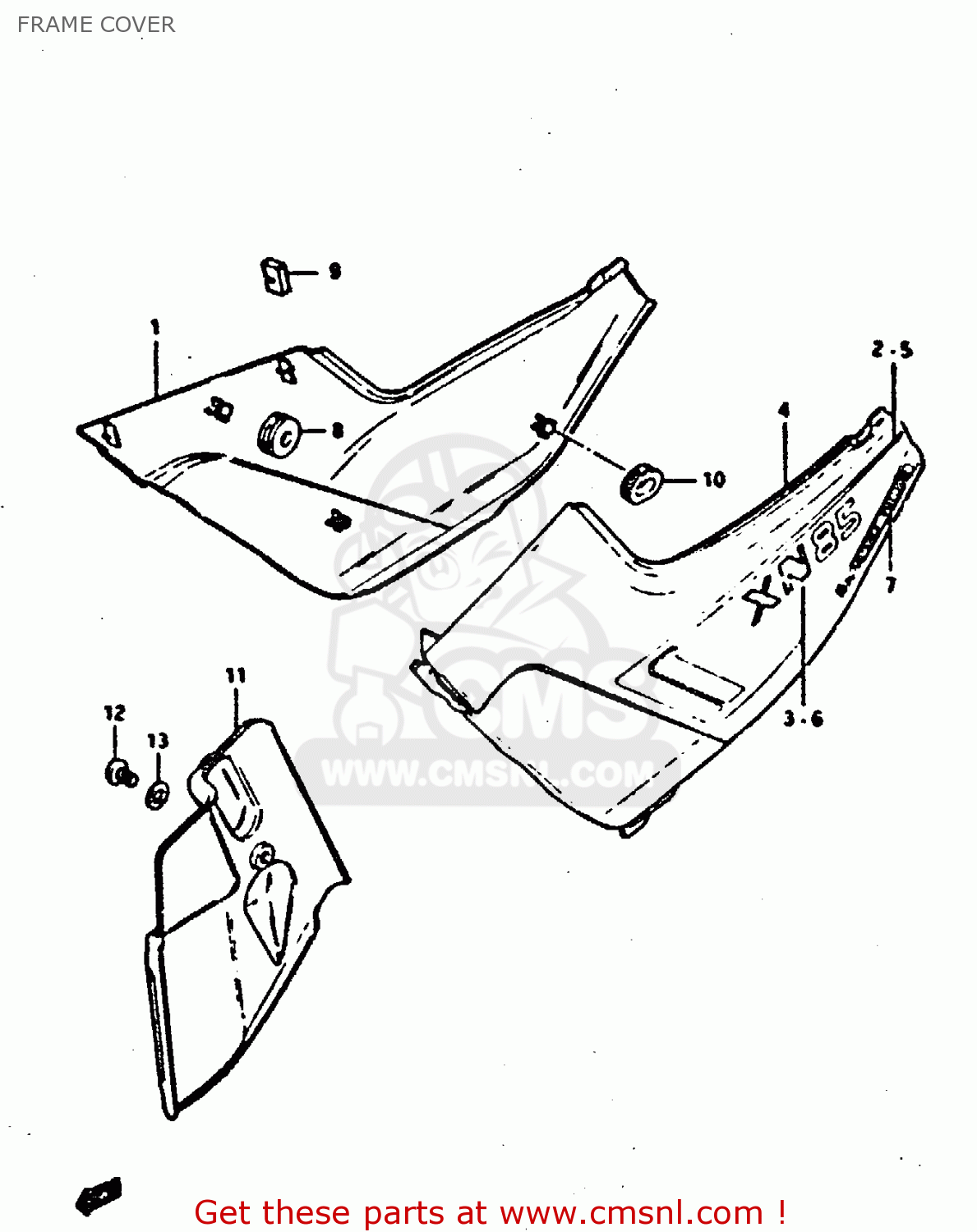

Frame cover diagram XN85 1983 (D) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39 48

prices are in EUR

ref

part #

description

quantity

471100930015K
ref: 1

COVER,FRAME,RIGHT

€ 86.50

681300930073E
ref: 2

TAPE SET,FRAME COVER

€ 29.00

6813109300765
ref: 3

EMBLEM (XN85)

€ 8.00

472100930015K
ref: 4

COVER,FRAME,LEFT

€ 121.00

681400930073E
ref: 5

TAPE SET,FRAME COVER

€ 0.00

6813109300765
ref: 6

EMBLEM (XN85)

€ 8.00

682360930091V
ref: 7

EMBLEM,ADJUSTER

€ 0.00

0932008018
ref: 8

CUSHION

€ 4.00

0932902002
ref: 9

CUSHION

€ 1.50

0932908003
ref: 10

CUSHION

€ 3.50

4732109300019
ref: 11

COVER,FUEL PUMP

€ 23.50

0211206128
ref: 12

SCREW 6X12

€ 2.00

0832221068
ref: 13

WASHER

€ 2.00
