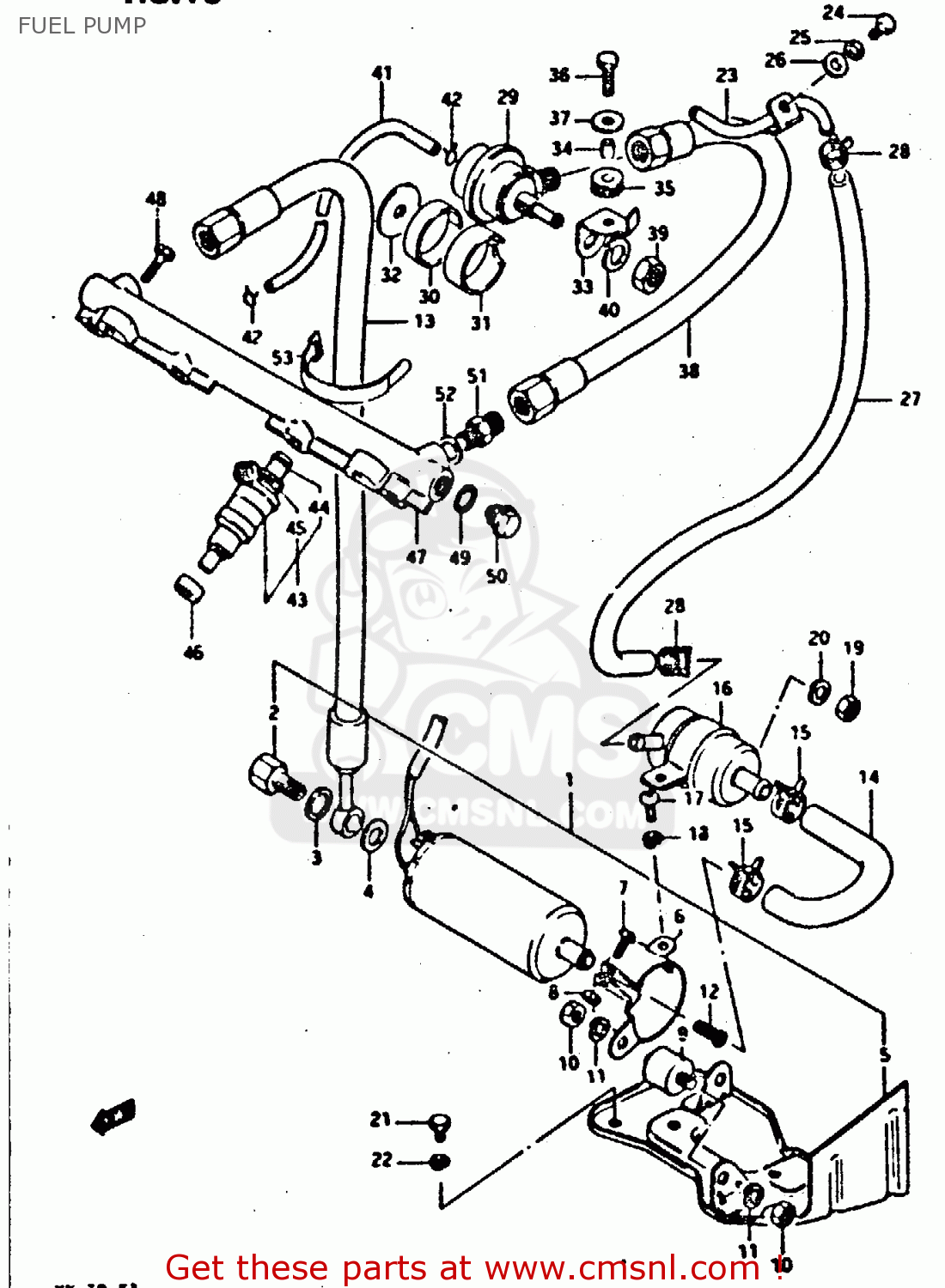

FUEL PUMP

ref

part #

description

quantity

1

1511009300
ref: 1

PUMP ASSEMBLY,FUEL

€ 628.50

2

1511509300
ref: 2

NUT,FUEL PUMP

€ 0.00

3

1511609300
ref: 3

GASKET,FUEL PUMP

€ 4.00

4

1511709300
ref: 4

WASHER,FUEL PUMP

€ 0.00

5

1512009300
ref: 5

BRACKET,FUEL PUMP

€ 0.00

6

1512109300
ref: 6

CLAMP,FUEL PUMP

€ 0.00

7

0211206208
ref: 7

SCREW

€ 2.00

8

0831011068
ref: 8

NUT

€ 2.50

9

1513009300
ref: 9

CUSHION,FUEL PUMP

€ 0.00

10

0831012088
ref: 10

NUT

€ 2.00

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

1511809300
ref: 12

FILTER

€ 15.00

13

1566009301
ref: 13

HOSE, OUTLET

€ 188.50

14

1568409310
ref: 14

HOSE,FUEL PUMP INLET N

€ 16.50

15

0940118401
ref: 15

CLAMP

€ 2.00

16

1569009300
ref: 16

FILTER ASSEMBLY,FUEL

€ 91.00

17

0211206128
ref: 17

SCREW 6X12

€ 2.00

18

0832121068
ref: 18

LOCK WASHER

€ 2.50

19

0831012088
ref: 19

NUT

€ 2.00

20

0832121088
ref: 20

LOCK WASHER

€ 2.00

21

0110706108
ref: 21

BOLT

€ 2.00

22

0832121068
ref: 22

LOCK WASHER

€ 2.50

23

1568009320
ref: 23

PIPE, PUMP INLET

€ 17.00

24

0110706128
ref: 24

BOLT

€ 2.00

25

0832121068
ref: 25

LOCK WASHER

€ 2.50

26

0832221068
ref: 26

WASHER

€ 2.00

27

1568609310
ref: 27

HOSE, PUMP INLET (2)

€ 22.50

28

0940112401
ref: 28

CLAMP

€ 2.50

29

1576009300
ref: 29

REGULATOR ASSEMBLY,FUEL PRESSURE

€ 156.50

30

1576509300
ref: 30

PROTECTOR,PRESSURE REGULATOR

€ 0.00

31

1576609300
ref: 31

PROTECTOR,PRESSURE REGULATOR

€ 0.00

32

1576709300
ref: 32

PROTECTOR,FUEL REGULATOR

€ 0.00

33

1579009310
ref: 33

BRACKET

€ 3.50

34

0918006038
ref: 34

SPACER(6.1X9X7.5)

€ 2.00

35

0932008007
ref: 35

CUSHION

€ 4.00

36

0110706208
ref: 36

BOLT

€ 2.00

37

0916006027
ref: 37

WASHER (6.5X20X1.2)

€ 2.00

38

1567009302
ref: 38

HOSE,FUEL PRESSURE REGULATOR

€ 144.50

39

0831022128
ref: 39

NUT 12MM

€ 3.00

40

0832121128
ref: 40

WASHER,LOCK 12

€ 2.50

41

0934303034
ref: 41
L:800@r310

HOSE

€ 18.50

42

0940107301
ref: 42

CLAMP

€ 3.00

43

1570009300
ref: 43

INJECTOR ASSEMBLY,FUEL

€ 265.00

44

1571009300
ref: 44

O RING

€ 4.00

45

1572009300
ref: 45

GROMMET

€ 4.50

46

1574109300
ref: 46

SEAL RING,FUEL INJECTOR

€ 14.50

47

1575009301
ref: 47

HOLDER, INJECTOR

€ 79.50

48

0912806024
ref: 48

SCREW (6X25)

€ 2.50

49

0916814011
ref: 49

GASKET(14X20X1.5) (NAS)

€ 2.00

50

0924714026
ref: 50

PLUG(14X12)

€ 3.50

51

0936014004
ref: 51

BOLT UNION

€ 0.00

52

0916812010
ref: 52

GASKET(12X16.5X1.5) (NAS)

€ 7.00

53

0940718301
ref: 53

CLAMP

€ 6.00

all assemblies
