1 CYLINDER HEAD COVER

GS750C

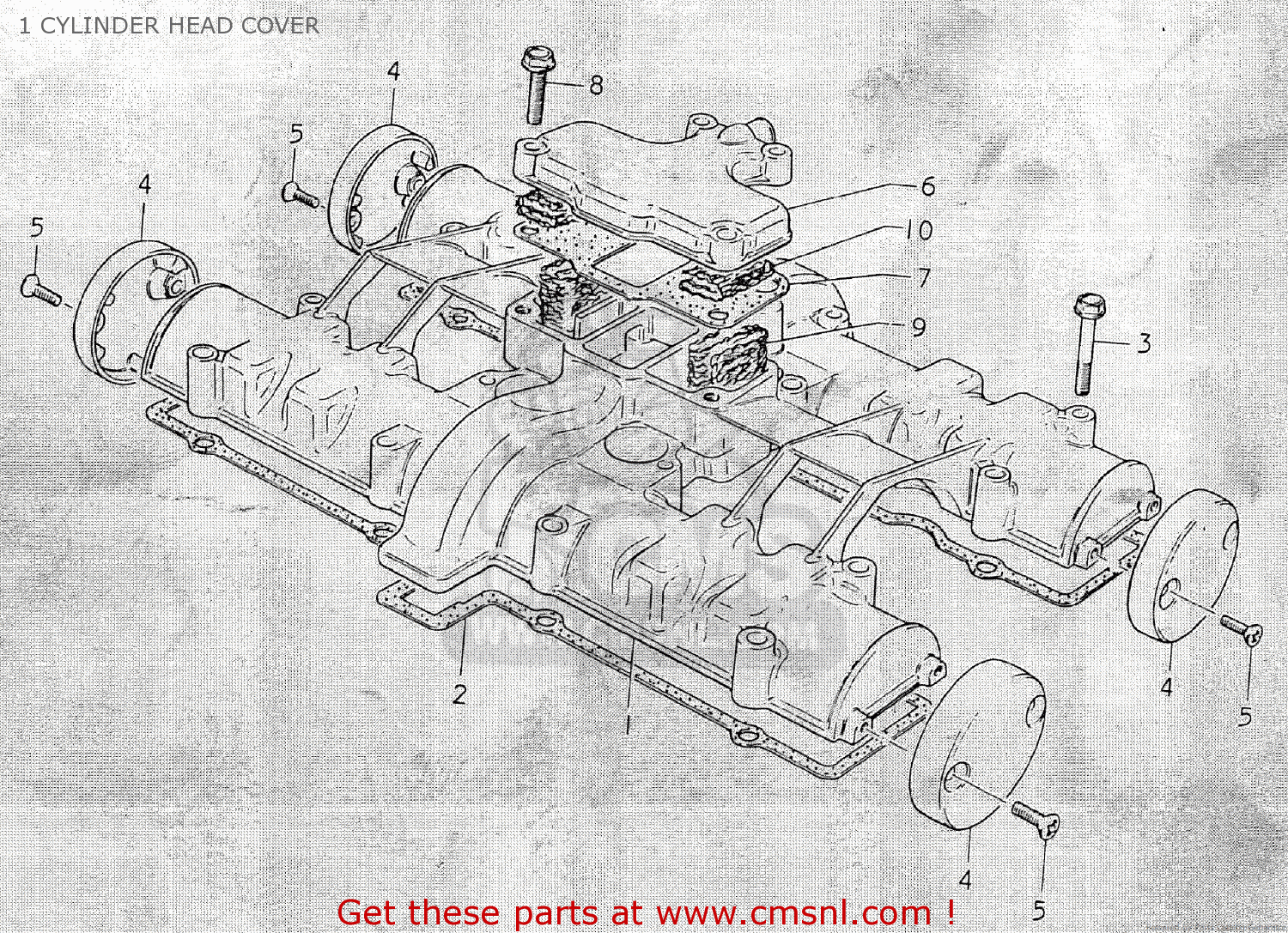

1 cylinder head cover diagram GS750C

1 CYLINDER HEAD COVER GS750C

1 CYLINDER HEAD COVER GS750C

prices are in EUR

ref

part #

description

quantity

1

1117145000
ref: 1

COVER,CYLINDER HEAD

€ 270.50

2

1117345002
ref: 2

GASKET,CYLINDER HEAD COVER (MCA)

€ 227.50

3

0151706408
ref: 3

BOLT

€ 2.50

4

1117445000
ref: 4

CAP,CYLINDER HEAD COVER

€ 38.00

5

0213205128
ref: 5

SCREW

€ 2.50

6

1117645000
ref: 6

COVER,BREATHER

€ 32.50

7

1117745000
ref: 7

GASKET (MCA)

€ 9.00

8

0151706258
ref: 8

BOLT

€ 2.50

9

1118645000
ref: 9

COVER,BREATHER

€ 5.50

10

1118745000
ref: 10

SEPARATOR,OIL BREATHER

€ 6.50
