5 CRANKCASE RH COVER

GS750C

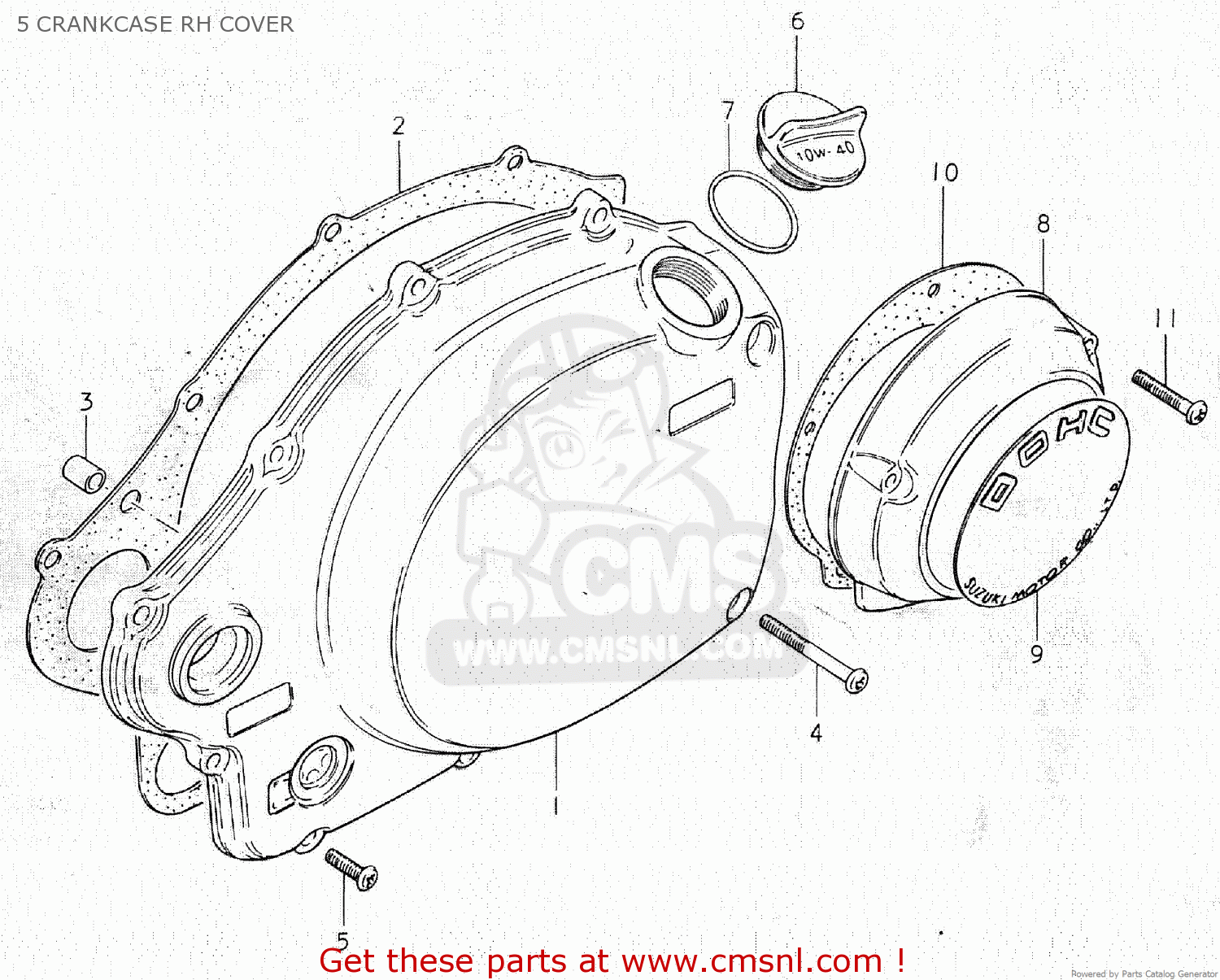

5 crankcase rh cover diagram GS750C

5 CRANKCASE RH COVER GS750C

5 CRANKCASE RH COVER GS750C

prices are in EUR

ref

part #

description

quantity

1

1134045000
ref: 1

COVER,CLUTCH

€ 115.00

2

1148245000
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 20.50

3

0421109129
ref: 3

PIN

€ 2.00

4

0211206557
ref: 4

SCREW

€ 2.50

5

0211206208
ref: 5

SCREW

€ 2.00

6

0925930001
ref: 6

CAP

€ 8.50

7

0928032005
ref: 7

O RING(D:2.2,ID:32)

€ 2.00

8

1138145000
ref: 8

COVER,CONTACT BREAKER

€ 57.00

9

6823545000
ref: 9

EMBLEM

€ 25.00

10

1149145000
ref: 10

GASKET,CONTACT BREAKER COVER (NAS)

€ 5.50

11

0211205308
ref: 11

SCREW

€ 1.50
