14 MUFFLER
GS750C

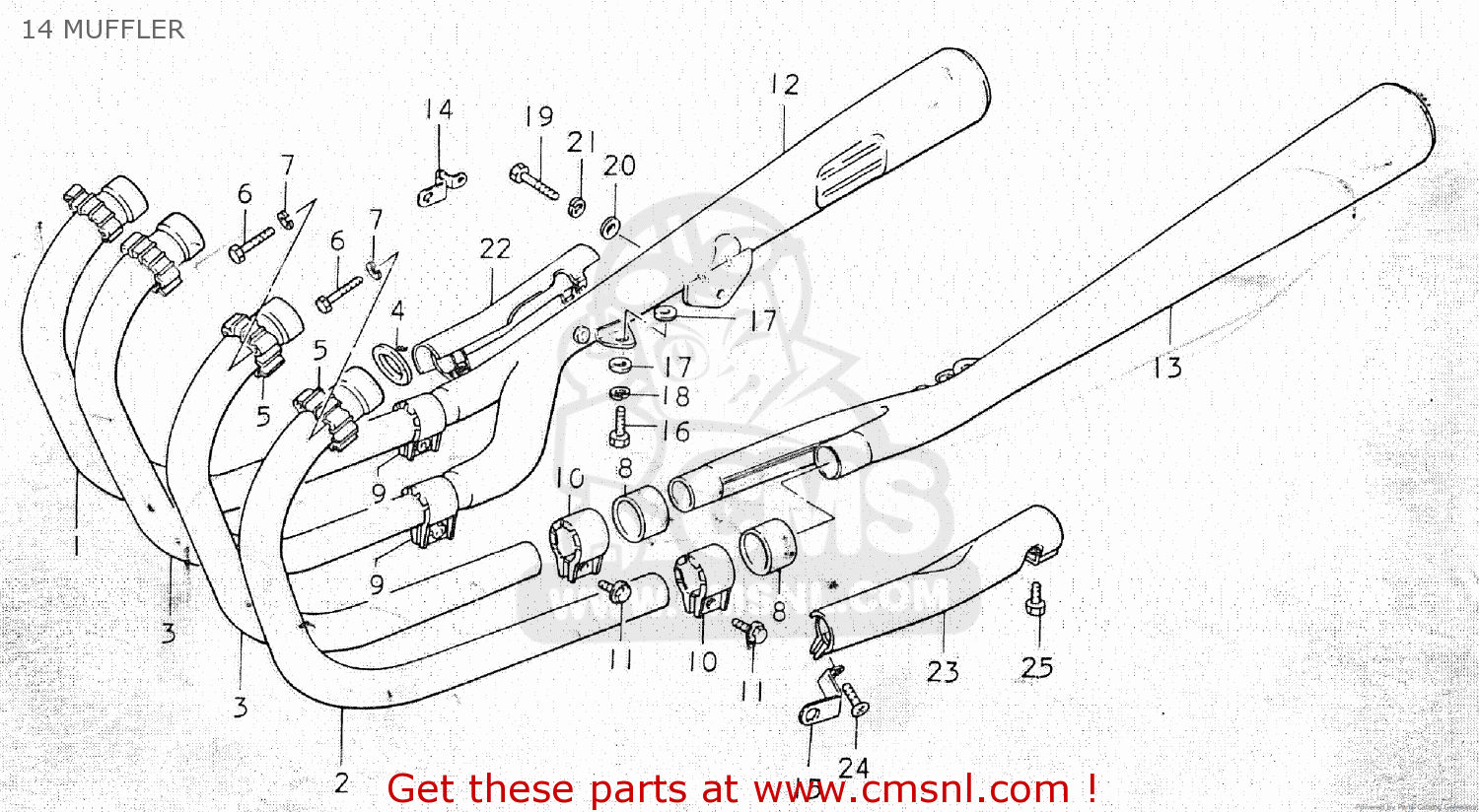

14 muffler diagram GS750C
14 MUFFLER GS750C
×
prices are in EUR
ref
part #
description
quantity
1
1415045000
ref: 1
PIPE,EXHAUST,RIGHT
€ 97.50
2
1416045000
ref: 2
PIPE,EXHAUST,LEFT
€ 125.00
3
1417045000
ref: 3
PIPE,EXHAUST CTR
€ 125.00
4
1418111010
ref: 4
GASKET,EXHAUST PIPE (NAS)
€ 8.00
5
1418244000
ref: 5
CLAMP,EXHAUST PIPE
€ 108.00
6
0110708358
ref: 6
BOLT
€ 3.50
7
0832121088
ref: 7
LOCK WASHER
€ 2.00
8
1477144010
ref: 8
CONNECTOR,MUFFLER
€ 24.00
9
0940241701
ref: 9
CLAMP
€ 15.50
10
0940241702
ref: 10
CLAMP
€ 15.50
11
0151708258
ref: 11
BOLT
€ 2.50
12
1431045001
ref: 12
BODY,MUFFLER
€ 471.50
13
1434045001
ref: 13
BODY,MUFFLER
€ 471.50
14
1447545000
ref: 14
PLATE, CONNECTOR RH
€ 2.50
15
1448545000
ref: 15
PLATE, CONNECTOR LH
€ 3.50
16
0110708168
ref: 16
BOLT
€ 2.00
17
0916008010
ref: 17
WASHER (8.2X20X1.6)
€ 1.50
18
0832121088
ref: 18
LOCK WASHER
€ 2.00
19
0110710308
ref: 19
BOLT 10X30
€ 3.00
20
0832221108
ref: 20
WASHER
€ 2.50
21
0832121108
ref: 21
LOCK WASHER
€ 2.00
22
1478045000
ref: 22
COVER,MUFFLER
€ 81.50
23
1479045000
ref: 23
COVER,MUFFLER
€ 26.50
24
0211205208
ref: 24
SCREW 5X20
€ 3.00
25
0211205068
ref: 25
SCREW
€ 4.00
