6 CRANKCASE LH COVER

GS750C

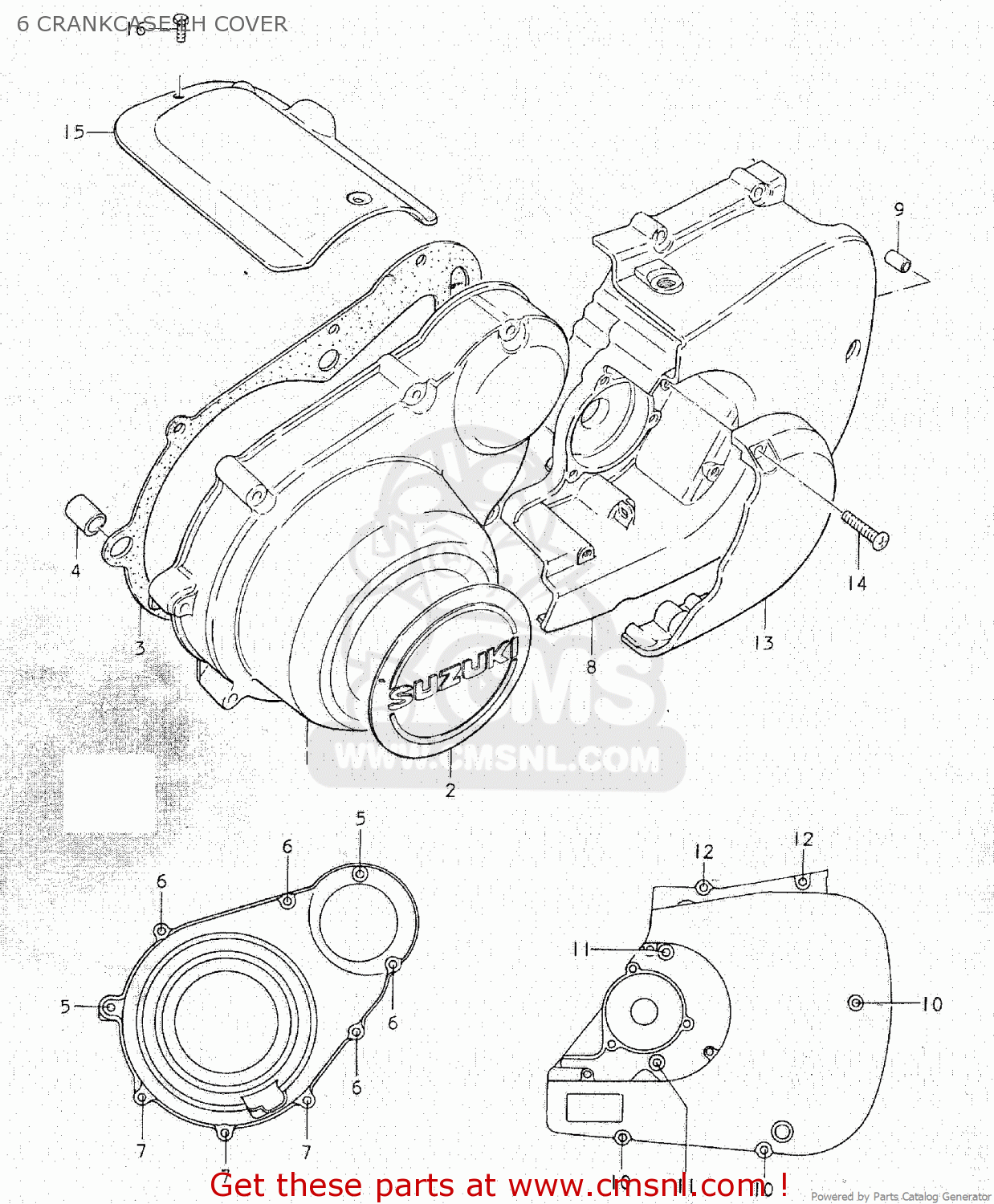

6 crankcase lh cover diagram GS750C

6 CRANKCASE LH COVER GS750C

6 CRANKCASE LH COVER GS750C

prices are in EUR

ref

part #

description

quantity

1

1135145000
ref: 1

COVER

€ 204.00

2

6823345000
ref: 2

EMBLEM

€ 25.00

3

1148345000
ref: 3

GASKET,MAGNETO COVER (MCA)

€ 12.50

4

0920613001
ref: 4

PIN

€ 2.50

5

0211206458
ref: 5

SCREW (6X45)

€ 2.00

6

0211206408
ref: 6

SCREW

€ 2.00

7

0211206358
ref: 7

SCREW (6X35)

€ 2.50

8

1136145002
ref: 8

COVER,ENGINE SPROCKET

€ 113.50

9

0421109129
ref: 9

PIN

€ 2.00

10

0211206858
ref: 10

SCREW 6X85

€ 2.50

11

0211206458
ref: 11

SCREW (6X45)

€ 2.00

12

0211206258
ref: 12

SCREW

€ 2.00

13

1138745000
ref: 13

CAP,CLUTCH RELEASE ADJUST

€ 25.00

14

0211205258
ref: 14

SCREW

€ 2.00

15

1138245000
ref: 15

COVER,STARTER MOTOR

€ 43.00

16

0110705108
ref: 16

BOLT 5X10

€ 1.50
