13 AIR CLEANER
GS750C

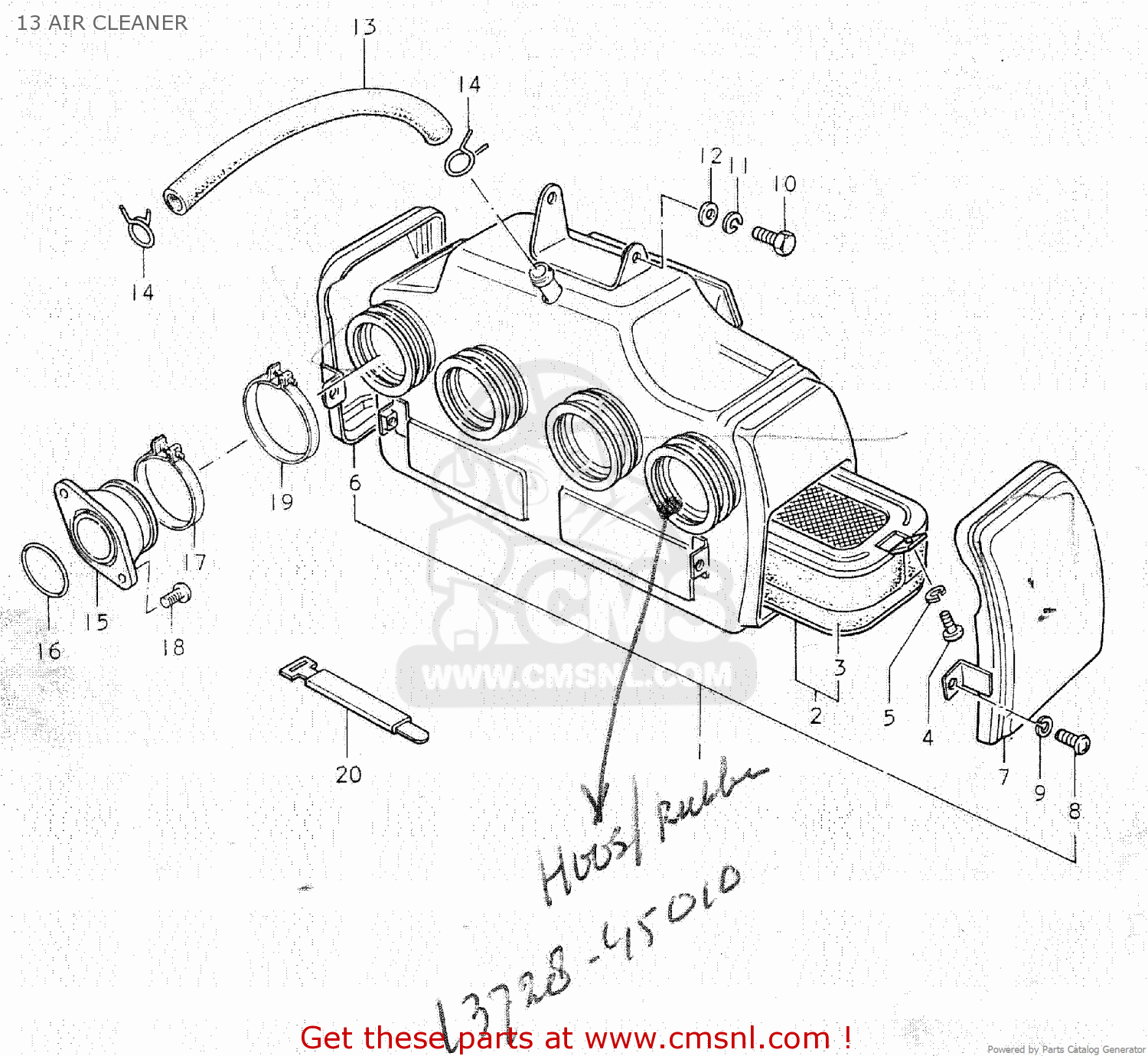

13 air cleaner diagram GS750C
13 AIR CLEANER GS750C
×
prices are in EUR
ref
part #
description
quantity
1
1370045011
ref: 1
CLEANER ASSEMBLY,AIR
€ 277.00
2
1378045010
ref: 2
FILTER ASSY,AIR CLEANER
€ 67.50
3
1378145010
ref: 3
FILTER
€ 37.50
4
0211206108
ref: 4
SCREW
€ 1.50
5
0832121068
ref: 5
LOCK WASHER
€ 2.50
6
1377145010
ref: 6
CAP,AIR CLEANER
€ 54.00
7
1377245010
ref: 7
COVER,AIR CLEANER,LEFT
€ 54.00
8
0211205108
ref: 8
SCREW
€ 2.00
9
0832121058
ref: 9
LOCK WASHER
€ 2.00
10
0110706128
ref: 10
BOLT
€ 2.00
11
0832121068
ref: 11
LOCK WASHER
€ 2.50
12
0832221068
ref: 12
WASHER
€ 2.00
13
0934311001
ref: 13
HOSE
€ 30.00
14
0940115301
ref: 14
CLIP
€ 2.50
15
1311045010
ref: 15
PIPE,INTAKE
€ 42.50
16
0928032006
ref: 16
O RING(D:2.4,ID:31.7)
€ 2.50
17
0940246306
ref: 17
CLAMP
€ 4.50
18
0211206168
ref: 18
SCREW
€ 2.50
19
0940252306
ref: 19
CLAMP
€ 6.00
20
0940712402
ref: 20
CLAMP(L:120)
€ 3.00
