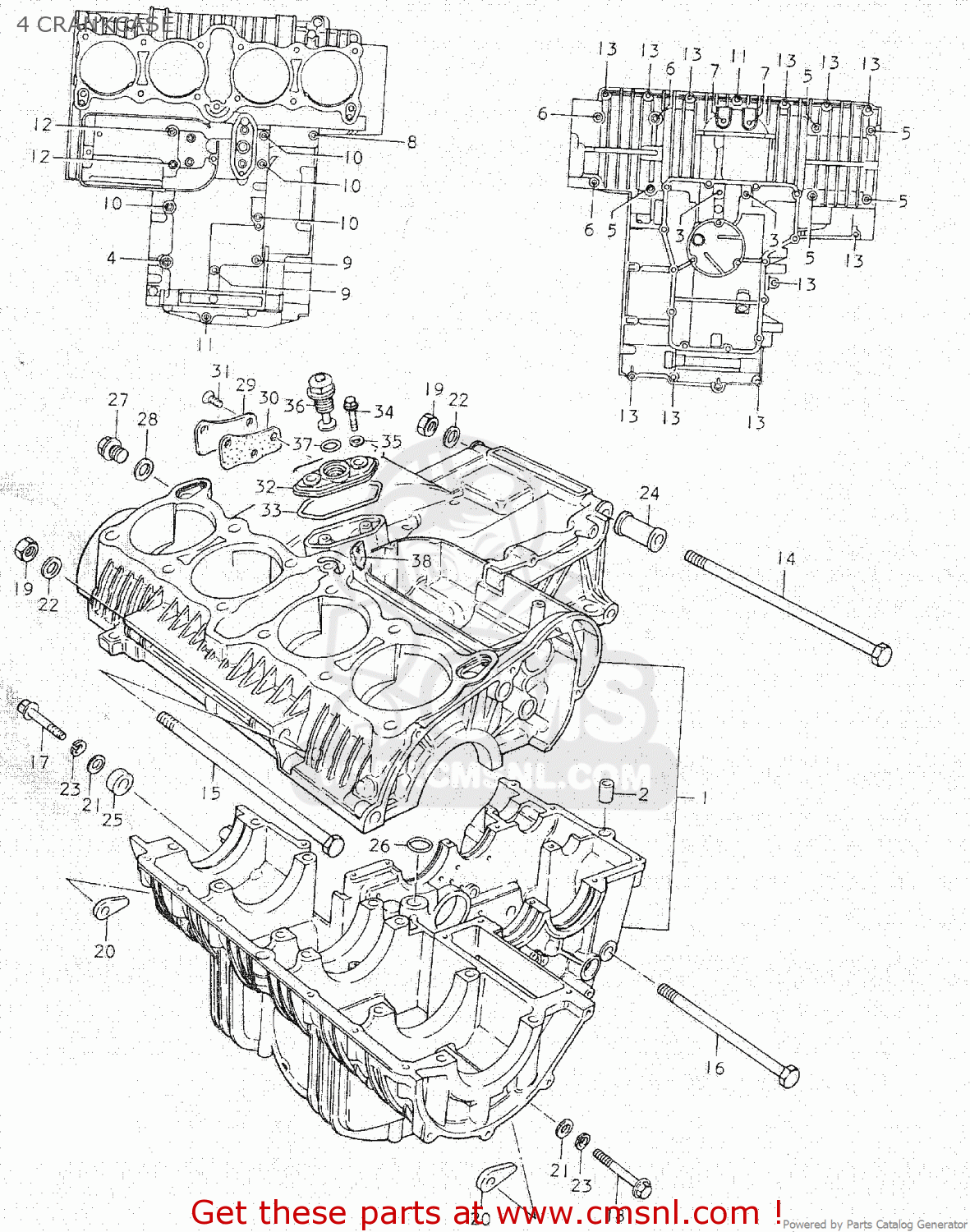

4 CRANKCASE

ref

part #

description

quantity

1

1130045810
ref: 1

CRANKCASE SET

€ 723.50

2

0920613001
ref: 2

PIN

€ 2.50

3

0910308020
ref: 3

BOLT

€ 8.00

4

0151708958
ref: 4

BOLT (8X95)

€ 3.50

5

0151708908
ref: 5

BOLT 8X90

€ 3.50

6

0151708658
ref: 6

BOLT 8X65

€ 3.00

7

0151708608
ref: 7

BOLT

€ 3.50

8

0910306020
ref: 8

BOLT 6X100

€ 2.50

9

0151706908
ref: 9

BOLT (6X90)

€ 2.00

10

0151706808
ref: 10

BOLT (6X80)

€ 3.00

11

0151706558
ref: 11

BOLT

€ 2.50

12

0151706458
ref: 12

BOLT,UNDER

€ 2.50

13

0151706408
ref: 13

BOLT

€ 2.50

14

0910110010
ref: 14

BOLT 10X250

€ 49.50

15

0910010108
ref: 15

BOLT 10X235

€ 8.50

16

0910010092
ref: 16

BOLT 10X160

€ 28.50

17

0151710658
ref: 17

BOLT 10X65

€ 3.50

18

0151710558
ref: 18

BOLT 10X55

€ 3.00

19

0915910011
ref: 19

NUT

€ 3.00

20

0915910020
ref: 20

NUT

€ 7.50

21

0916010005
ref: 21

WASHER(10.5X20X3.2)

€ 2.00

22

0832211108
ref: 22

WASHER

€ 2.50

23

0832121108
ref: 23

LOCK WASHER

€ 2.00

24

0918010046
ref: 24

SPACER

€ 12.00

25

0918010051
ref: 25

SPACER (10.2X24X11)

€ 6.00

26

0928013001
ref: 26

O RING(D:3.2,ID:12.9)

€ 4.00

27

0924714012
ref: 27

PLUG (14X12)

€ 3.50

28

0916814004
ref: 28

GASKET(14X19.2X2) (NAS)

€ 2.50

29

1139445000
ref: 29

CAP,OIL GALLERY

€ 6.50

30

1149745000
ref: 30

GASKET,OIL GALLERY (MCA)

€ 13.00

31

0212206168
ref: 31

SCREW

€ 2.00

32

1644545000
ref: 32

HOUSING,OIL PRESSURE SWITCH

€ 28.00

33

1644845000
ref: 33

O RING,PRESSURE SWITCH HOUSING

€ 10.50

34

0151706258
ref: 34

BOLT

€ 2.50

35

0916806009
ref: 35

GASKET (NAS)

€ 2.00

36

3782045050
ref: 36

SWITCH ASSEMBLY

€ 30.00

37

0928019001
ref: 37

O RING(D:1.9,ID:18.8)

€ 1.50

38

3127145000
ref: 38

GROMMET,STARTING MOTOR

€ 5.50
