48 FRONT MASTER CYLINDER (GS750C)

GS750C

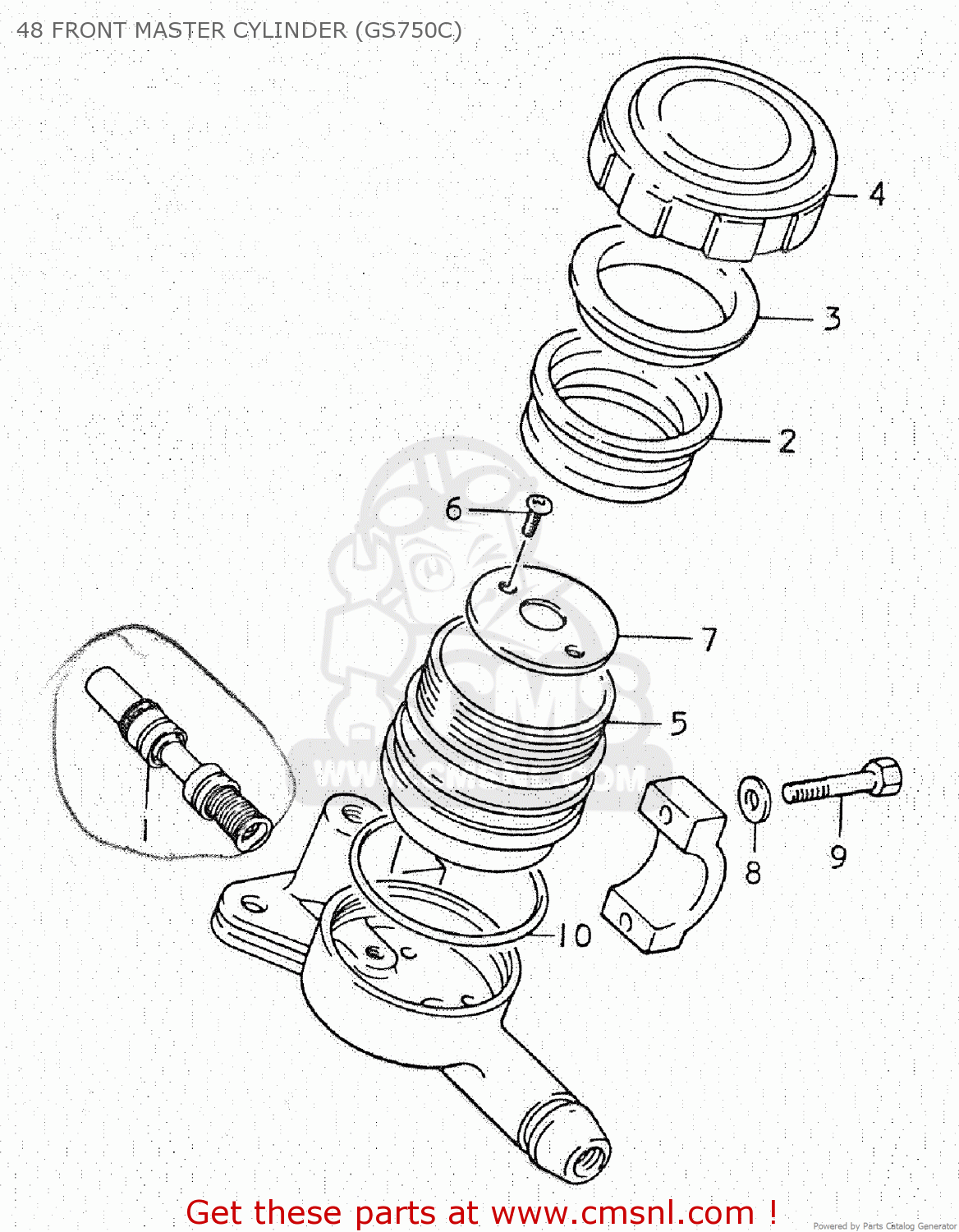

48 front master cylinder (gs750c) diagram GS750C

48 FRONT MASTER CYLINDER (GS750C) GS750C

48 FRONT MASTER CYLINDER (GS750C) GS750C

prices are in EUR

ref

part #

description

quantity

1

5960018824
ref: 1

CYLINDER ASSEMBLY,FRONT MASTER

€ 44.50

2

5966718440
ref: 2

DIAPHRAGM,MASTER CYLINDER

€ 8.50

3

5966818441
ref: 3

PLATE,DIAPHRAGM

€ 3.50

4

5966918604
ref: 4

CAP

€ 16.50

5

5968745000
ref: 5

RESERVOIR

€ 28.50

6

0912503105
ref: 6

SCREW

€ 2.50

7

5968533600
ref: 7

PLATE

€ 54.00

8

0832221068
ref: 8

WASHER

€ 2.00

9

0110706208
ref: 9

BOLT

€ 2.00

10

5968633600
ref: 10

O RING

€ 14.00
