3 CYLINDER
GS750C

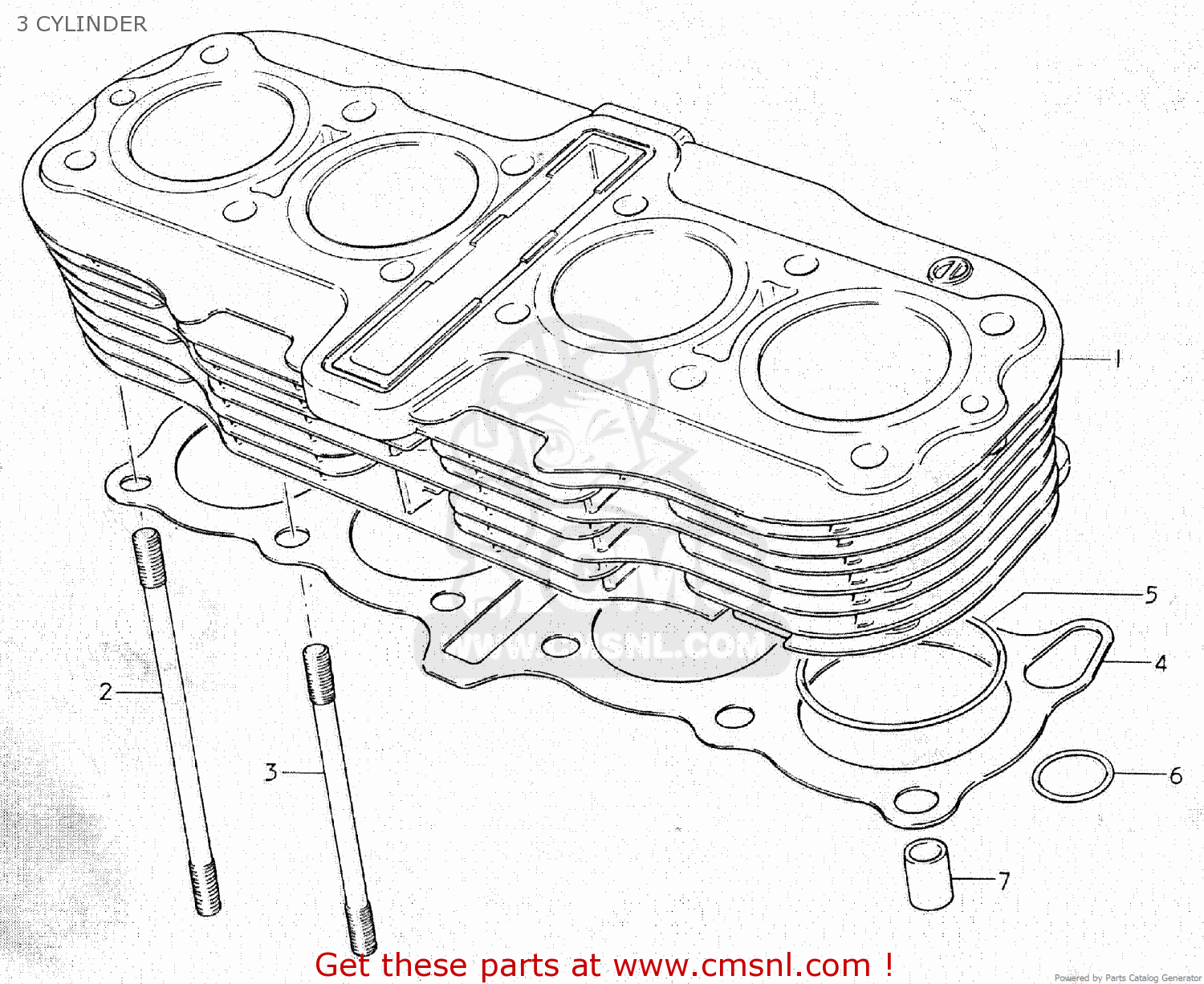

3 cylinder diagram GS750C
3 CYLINDER GS750C
×
prices are in EUR
ref
part #
description
quantity
1
1121045001
ref: 1
CYLINDER
€ 492.50
2
0910810019
ref: 2
STUD
€ 12.00
3
0910810020
ref: 3
STUD
€ 9.00
4
1124145080
ref: 4
GASKET,CYLINDER (MCA)
€ 12.50
5
0928070001
ref: 5
O RING(D:2,ID:70)
€ 7.50
6
0928021004
ref: 6
O RING(D:3.05)
€ 4.00
7
0920613001
ref: 7
PIN
€ 2.50
