21 STARING MOTOR
GS750C

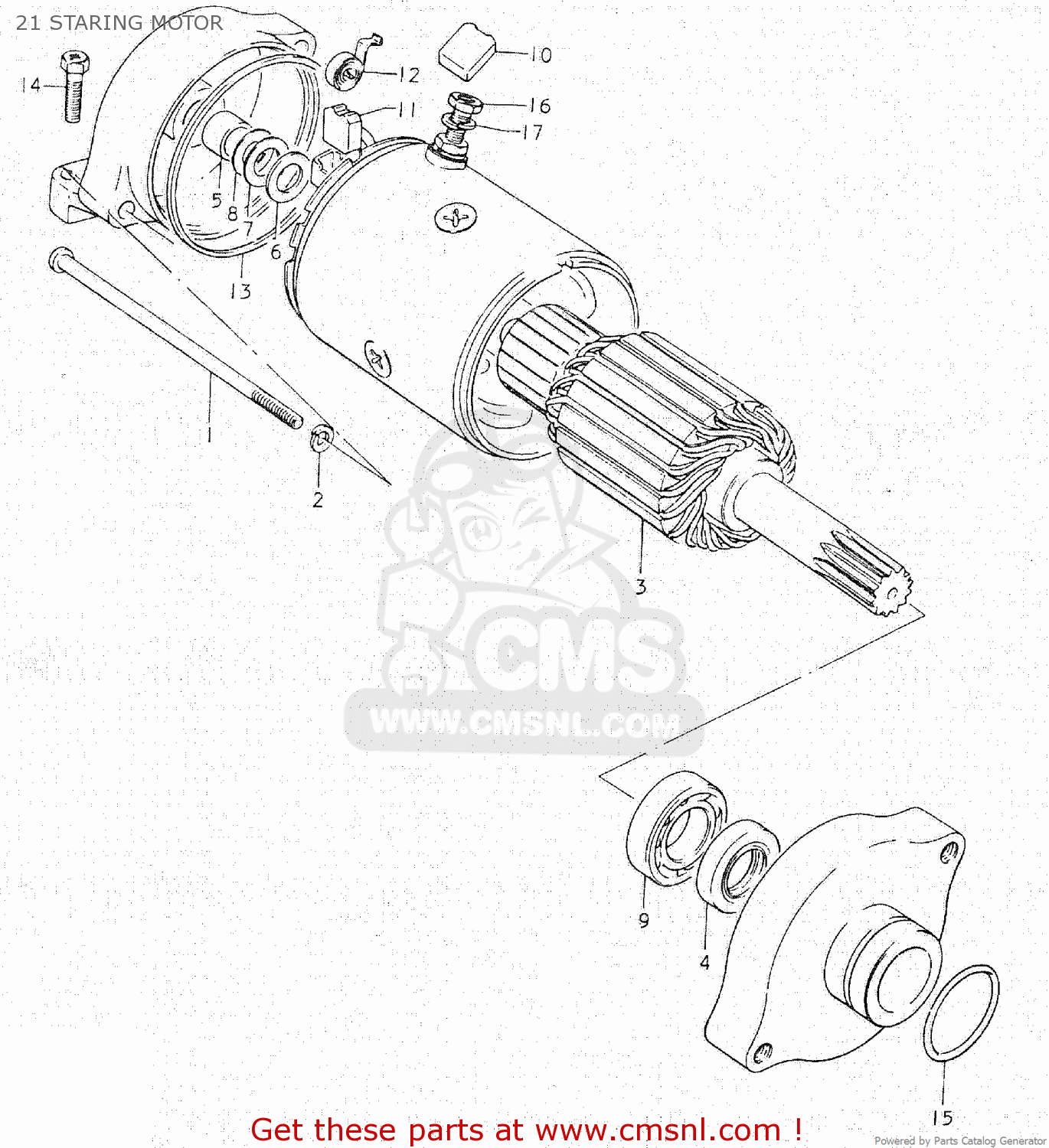

21 staring motor diagram GS750C
21 STARING MOTOR GS750C
×
prices are in EUR
ref
part #
description
quantity
1
3128131010
ref: 1
BOLT
€ 10.50
2
0832121058
ref: 2
LOCK WASHER
€ 2.00
3
3131145010
ref: 3
ARMATURE
€ 163.00
4
3115345010
ref: 4
SEAL,OIL
€ 19.50
5
3115265010
ref: 5
BUSHING
€ 5.50
6
3136165010
ref: 6
SHIM, (1)
€ 0.00
7
3136251010
ref: 7
SHIM, (2)
€ 0.00
8
3136351010
ref: 8
SHIM, (3)
€ 0.00
9
3115545010
ref: 9
BEARING
€ 21.00
10
3113165011
ref: 10
BRUSH(-)
€ 12.50
11
3113165011
ref: 11
BRUSH(-)
€ 12.50
12
3113565010
ref: 12
SPRING
€ 3.00
13
3126465010
ref: 13
GASKET
€ 0.00
14
0912806012
ref: 14
SCREW
€ 2.50
15
0928024001
ref: 15
O RING(D:2,ID:24.5)
€ 2.00
16
0831022068
ref: 16
NUT 6MM
€ 2.50
17
0832121068
ref: 17
LOCK WASHER
€ 2.50
