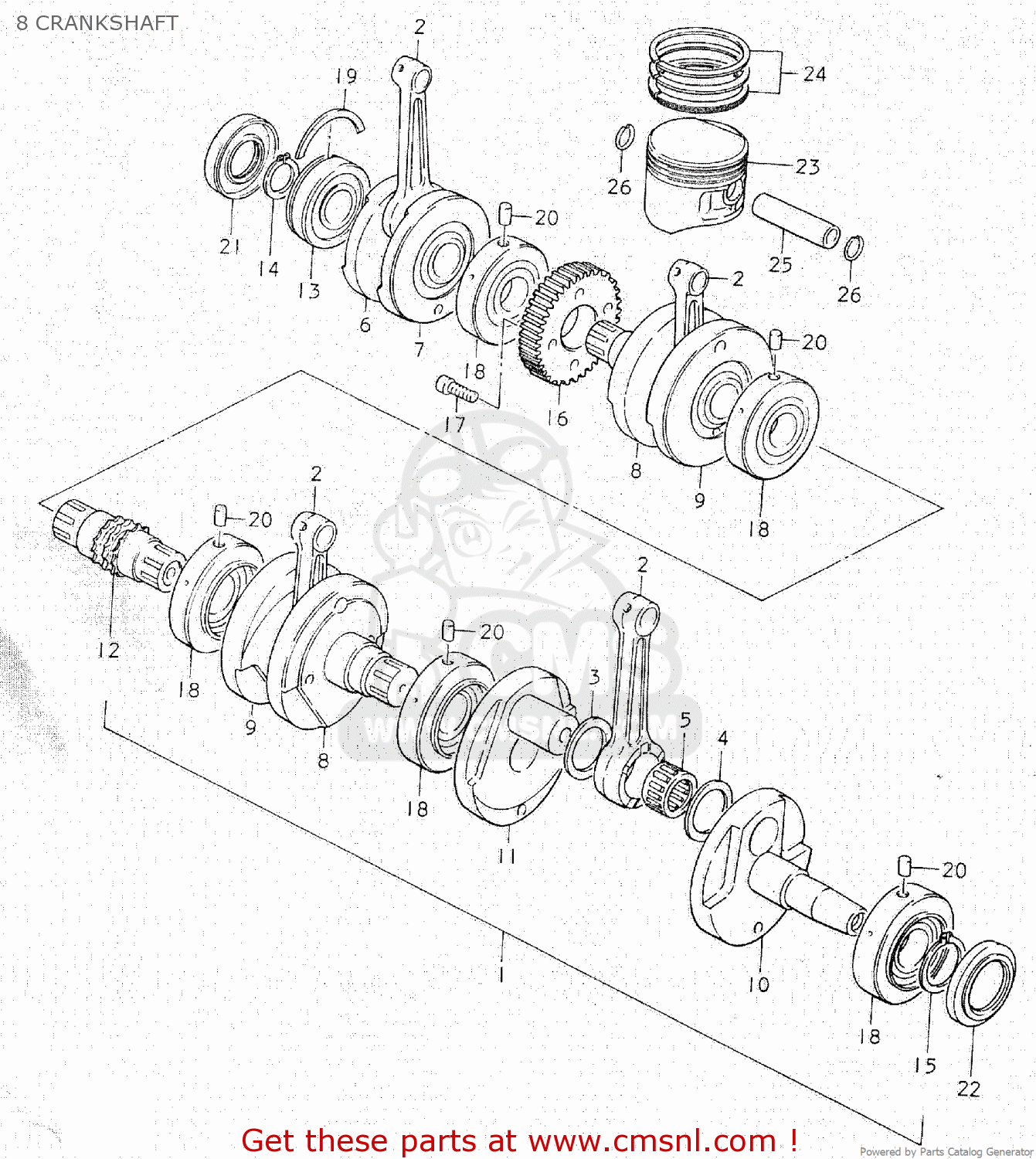

8 CRANKSHAFT

ref

part #

description

quantity

1

1220045002
ref: 1

CRANKSHAFT ASSEMBLY

€ 773.50

2

1216145000
ref: 2

CONNECTING ROD

€ 106.50

3

0916028009
ref: 3

WASHER (28X48X2)

€ 5.50

4

0916028010
ref: 4

WASHER(28X48X1)

€ 6.00

5

0926328010
ref: 5

BEARING(28X38X19.8)

€ 22.00

6

1222045001
ref: 6

CRANKSHAFT

€ 80.50

7

1223045000
ref: 7

WEB,CRANK

€ 70.00

8

1224145001
ref: 8

CRANKSHAFT

€ 86.50

9

1225045000
ref: 9

WEB,CRANK,MIDDLE

€ 87.50

10

1226145000
ref: 10

CRANKSHAFT,LEFT

€ 89.50

11

1223045000
ref: 11

WEB,CRANK

€ 70.00

12

1228145000
ref: 12

SHAFT,TIMING CHAIN DRIVE

€ 53.50

13

0926230033
ref: 13

BEARING(30X72X19)

€ 47.00

14

0833111308
ref: 14

CIRCLIP,30MM

€ 3.00

15

0833131329
ref: 15

CIRCLIP.32MM

€ 2.00

16

2111145001
ref: 16

GEAR,PRIMARY DRIVE

€ 102.50

17

0910608006
ref: 17

BOLT

€ 3.00

18

0926432001
ref: 18

BEARING

€ 75.50

19

0939072004
ref: 19

C RING

€ 3.00

20

0422107129
ref: 20

PIN

€ 1.50

21

0928330021
ref: 21

SEAL,OIL(30X72X11)

€ 22.00

22

0928948001
ref: 22

OIL SEAL

€ 12.00

23

1211145001
ref: 23

PISTON

€ 49.00

23

1211145701
ref: 23

PISTON

€ 101.00

23

1211145711
ref: 23

PISTON

€ 133.00

24

1210045811
ref: 24

PISTON RING SET

€ 59.00

24

1210045821
ref: 24

PISTON RING SET

€ 48.00

24

1210045831
ref: 24

PISTON RING SET

€ 68.00

25

1215129001
ref: 25

PIN,PISTON

€ 9.00

26

0938116002
ref: 26

CIRCLIP

€ 1.50
