31 WIRING HARNESS
GS750C

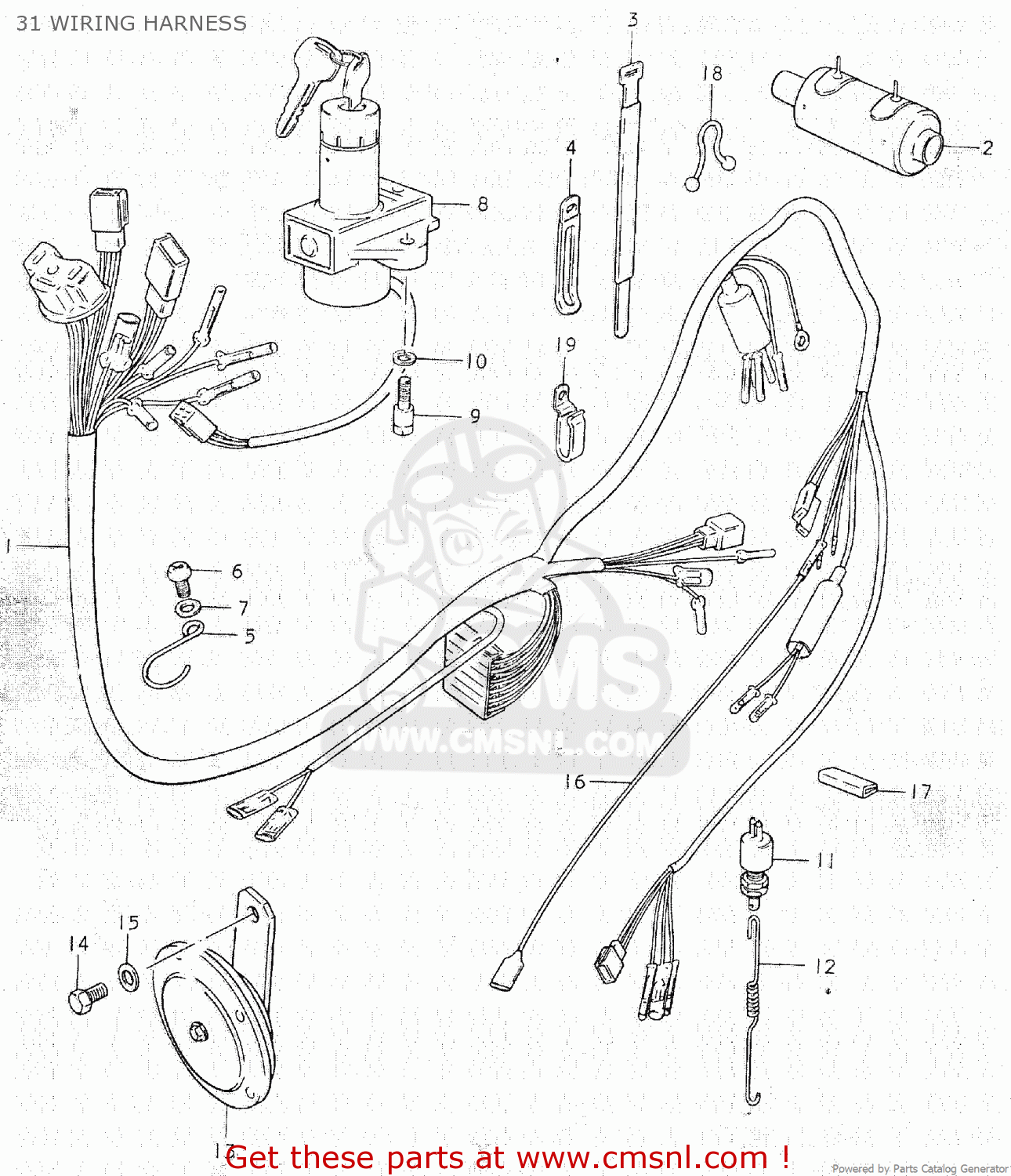

31 wiring harness diagram GS750C
31 WIRING HARNESS GS750C
×
prices are in EUR
ref
part #
description
quantity
1
3661045003
ref: 1
HARNESS,WIRING
€ 255.00
2
3661830610
ref: 2
BOOT,WIRING HARNESS
€ 9.50
3
0940718301
ref: 3
CLAMP
€ 6.00
4
0940406414
ref: 4
CLAMP
€ 3.00
5
3661944000
ref: 5
GUIDE,WIRING HARNESS
€ 2.50
6
0211206128
ref: 6
SCREW 6X12
€ 2.00
7
0832221068
ref: 7
WASHER
€ 2.00
8
3710047010
ref: 8
LOCK ASSEMBLY,STEERING
€ 127.50
9
3715247010
ref: 9
BOLT
€ 3.00
10
0832121068
ref: 10
LOCK WASHER
€ 2.50
11
3761053011
ref: 11
SWITCH ASSY,BRAKE LAMP
€ 34.50
12
0944306018
ref: 12
SPRING
€ 4.50
13
3850064130
ref: 13
HORN ASSY
€ 77.00
14
0110708128
ref: 14
BOLT 8X12
€ 2.50
15
0832211088
ref: 15
WASHER
€ 2.00
16
3685345000
ref: 16
WIRE
€ 9.50
17
3661138000
ref: 17
PROTECTOR,WIRING HARNESS
€ 2.50
18
0940306307
ref: 18
CLAMP
€ 4.50
19
0940800011
ref: 19
CLAMP
€ 2.00
