25 BATTERY

GS750C

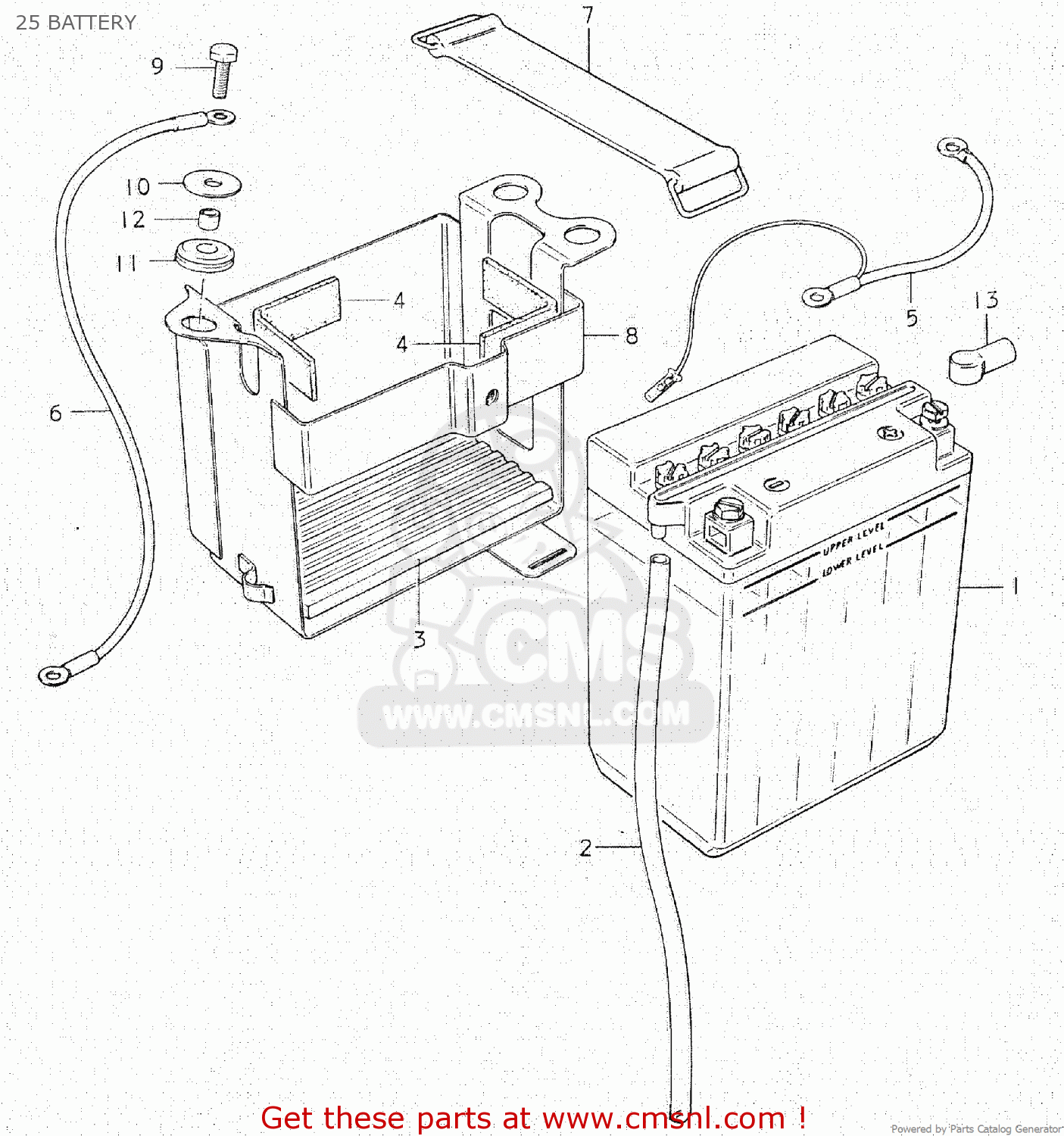

25 battery diagram GS750C

25 BATTERY GS750C

25 BATTERY GS750C

prices are in EUR

ref

part #

description

quantity

1

3361031010
ref: 1

BATTERY ASSEMBLY

€ 110.00

2

3368031003
ref: 2

HOSE,BATTERY EXHAUST

€ 4.50

3

3365131000
ref: 3

PROTECTOR,BATTERY

€ 29.00

4

3365229100
ref: 4

PROTECTOR,20X9

€ 5.00

5

3382045001
ref: 5

WIRE,BATTERY PLUS

€ 19.50

6

3385006200
ref: 6

WIRE,STARTER MOTOR LEAD

€ 8.50

7

0946200007
ref: 7

BAND

€ 5.00

8

4154045001
ref: 8

HOLDER,BATTERY

€ 27.00

9

0110706168
ref: 9

BOLT, UPPER

€ 3.00

10

0916006012
ref: 10

WASHER(6,5X22X1.6)

€ 2.00

11

0932008013
ref: 11

CUSHION

€ 4.00

12

0918006001
ref: 12

SPACER(6.2X8.3X5.7)

€ 2.00

13

3362445000
ref: 13

CAP,TERMINAL

€ 5.50
