7 OIL PAN

GS750C

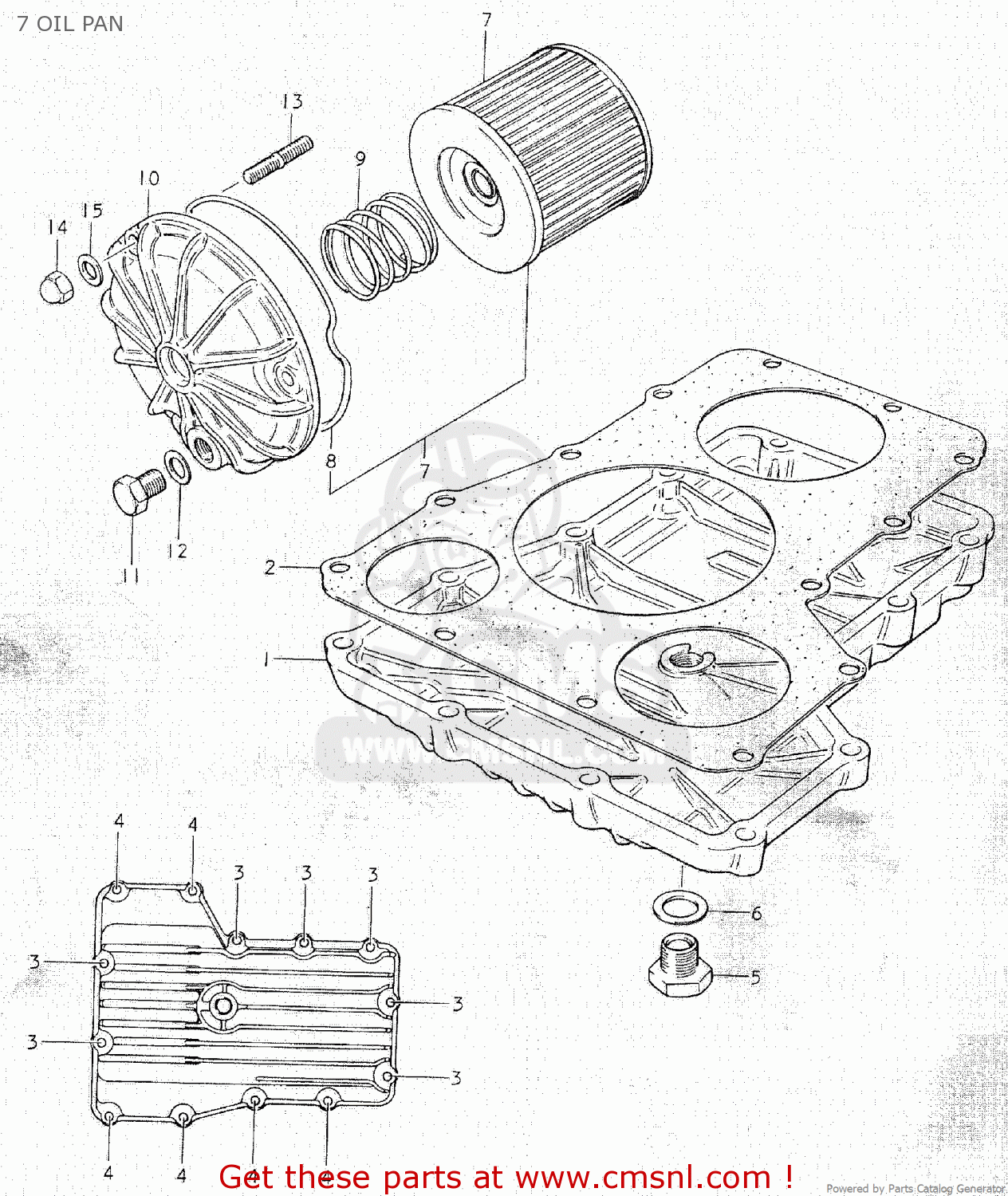

7 oil pan diagram GS750C

7 OIL PAN GS750C

7 OIL PAN GS750C

prices are in EUR

ref

part #

description

quantity

1

1151145000
ref: 1

PAN,OIL

€ 143.50

2

1148945000
ref: 2

GASKET,OIL PAN (MCA)

€ 15.50

3

0151706308
ref: 3

BOLT

€ 2.00

4

0151706258
ref: 4

BOLT

€ 2.50

5

0924714001
ref: 5

PLUG

€ 5.00

6

0916814004
ref: 6

GASKET(14X19.2X2) (NAS)

€ 2.50

7

1650045810
ref: 7

ENGINE OIL FILTER SET

€ 11.50

8

1651845000
ref: 8

O RING,OIL FILTER CHAMBER CAP

€ 7.50

9

0944032004
ref: 9

SPRING

€ 13.50

10

1651245000
ref: 10

CAP,OIL FILTER

€ 37.50

11

0924710001
ref: 11

PLUG

€ 3.00

12

0916810002
ref: 12

GASKET(10X14X3.6) (NAS)

€ 2.00

13

0142106208
ref: 13

STUD 6X20

€ 2.50

14

0831311068
ref: 14

NUT

€ 2.00

15

0832211068
ref: 15

WASHER 6MM

€ 2.00
