56 REAR BRAKE HOSE

GS750C

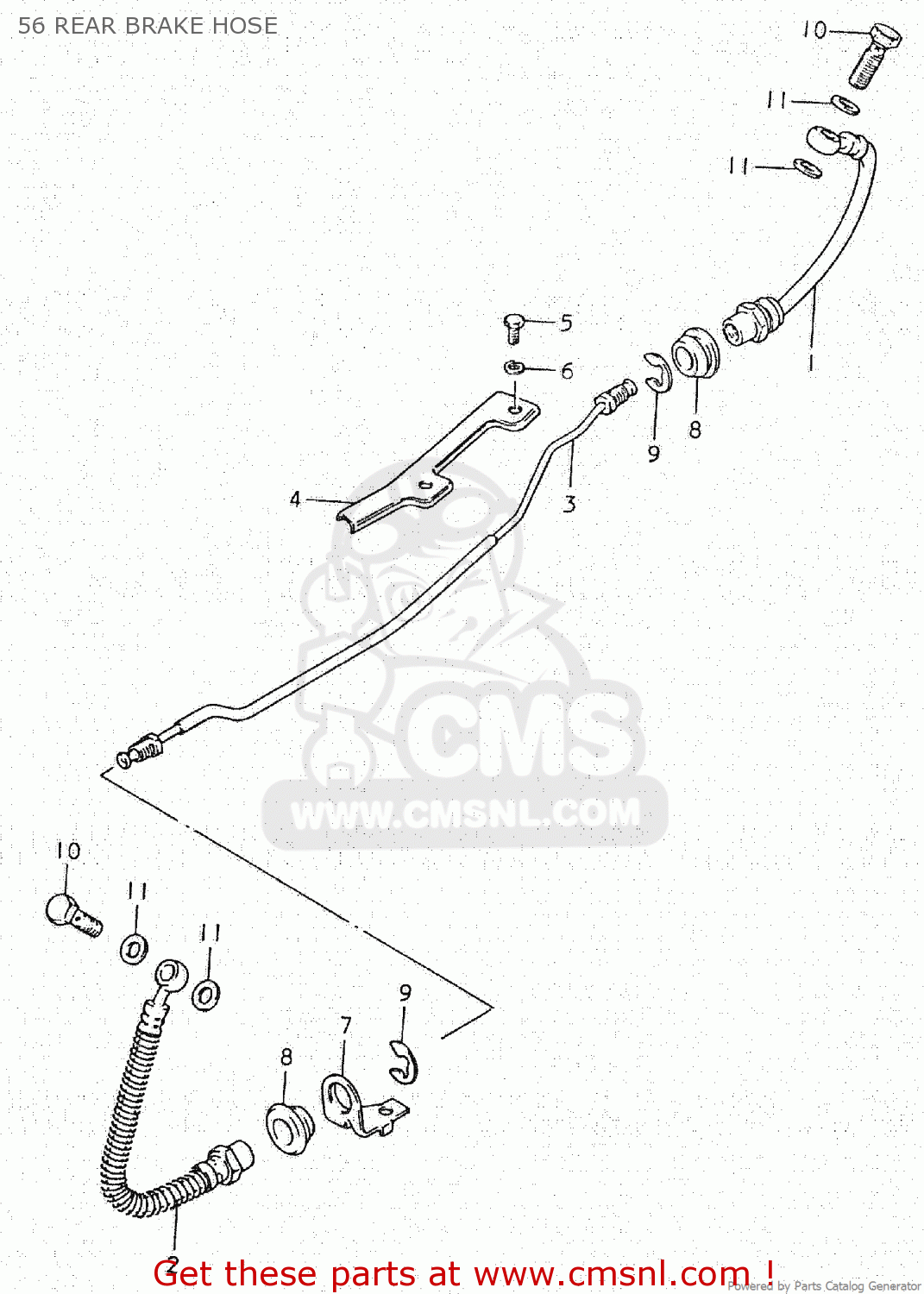

56 rear brake hose diagram GS750C

56 REAR BRAKE HOSE GS750C

56 REAR BRAKE HOSE GS750C

prices are in EUR

ref

part #

description

quantity

1

6948045000
ref: 1

HOSE,REAR BRAKE NO.1

€ 47.00

2

6924045000
ref: 2

HOSE,RR BRAKE NO.2

€ 47.00

3

6925045002
ref: 3

PIPE,REAR BRAKE

€ 22.00

4

6924545000
ref: 4

COVER,REAR BRAKE PIPE

€ 10.50

5

0910006011
ref: 5

BOLT(6X8)

€ 2.50

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

6924345001
ref: 7

GUIDE,BRAKE HOSE

€ 15.50

8

5924436200
ref: 8

GROMMET,BRAKE HOSE GUIDE

€ 4.00

9

0833211098
ref: 9

E RING

€ 1.50

10

0936010003
ref: 10

BOLT UNION

€ 6.50

11

0916110005
ref: 11

WASHER

€ 2.00
