50 FRONT BREAK HOSE

GS750C

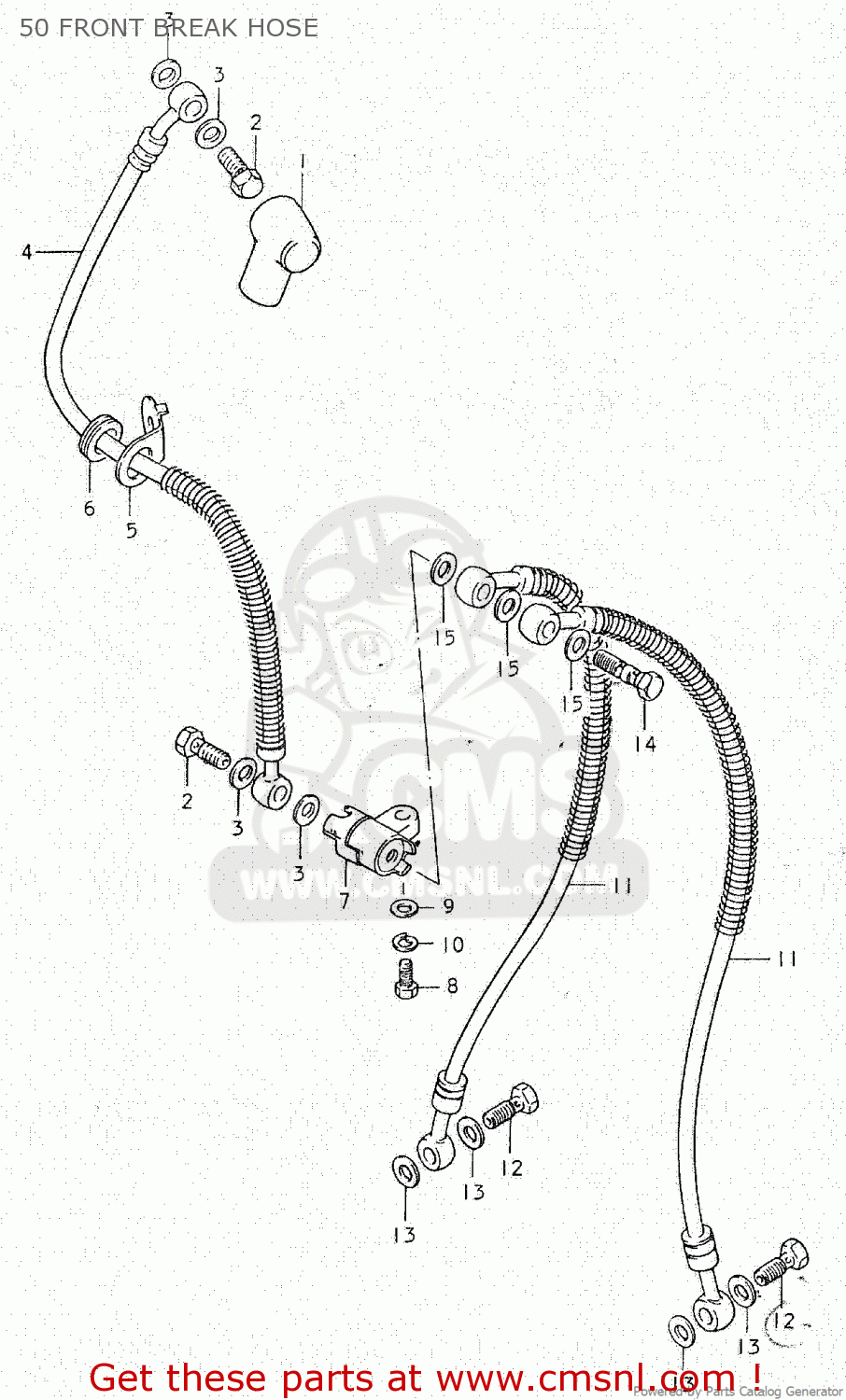

50 front break hose diagram GS750C

50 FRONT BREAK HOSE GS750C

50 FRONT BREAK HOSE GS750C

prices are in EUR

ref

part #

description

quantity

1

5971118400
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2

0936010003
ref: 2

BOLT UNION

€ 6.50

3

0916110005
ref: 3

WASHER

€ 2.00

4

5948045000
ref: 4

HOSE,BRAKE NO.1

€ 65.50

5

5924331000
ref: 5

GUIDE,BRAKE HOSE

€ 11.50

6

0930814007
ref: 6

GROMMET

€ 4.00

7

5949145000
ref: 7

JOINT,BRAKE HOSE

€ 29.00

8

0110706208
ref: 8

BOLT

€ 2.00

9

0832221068
ref: 9

WASHER

€ 2.00

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

5924045000
ref: 11

HOSE,FRONT BRAKE

€ 66.50

12

0936010003
ref: 12

BOLT UNION

€ 6.50

13

0916110005
ref: 13

WASHER

€ 2.00
