12 CARBURETOR
GS750C

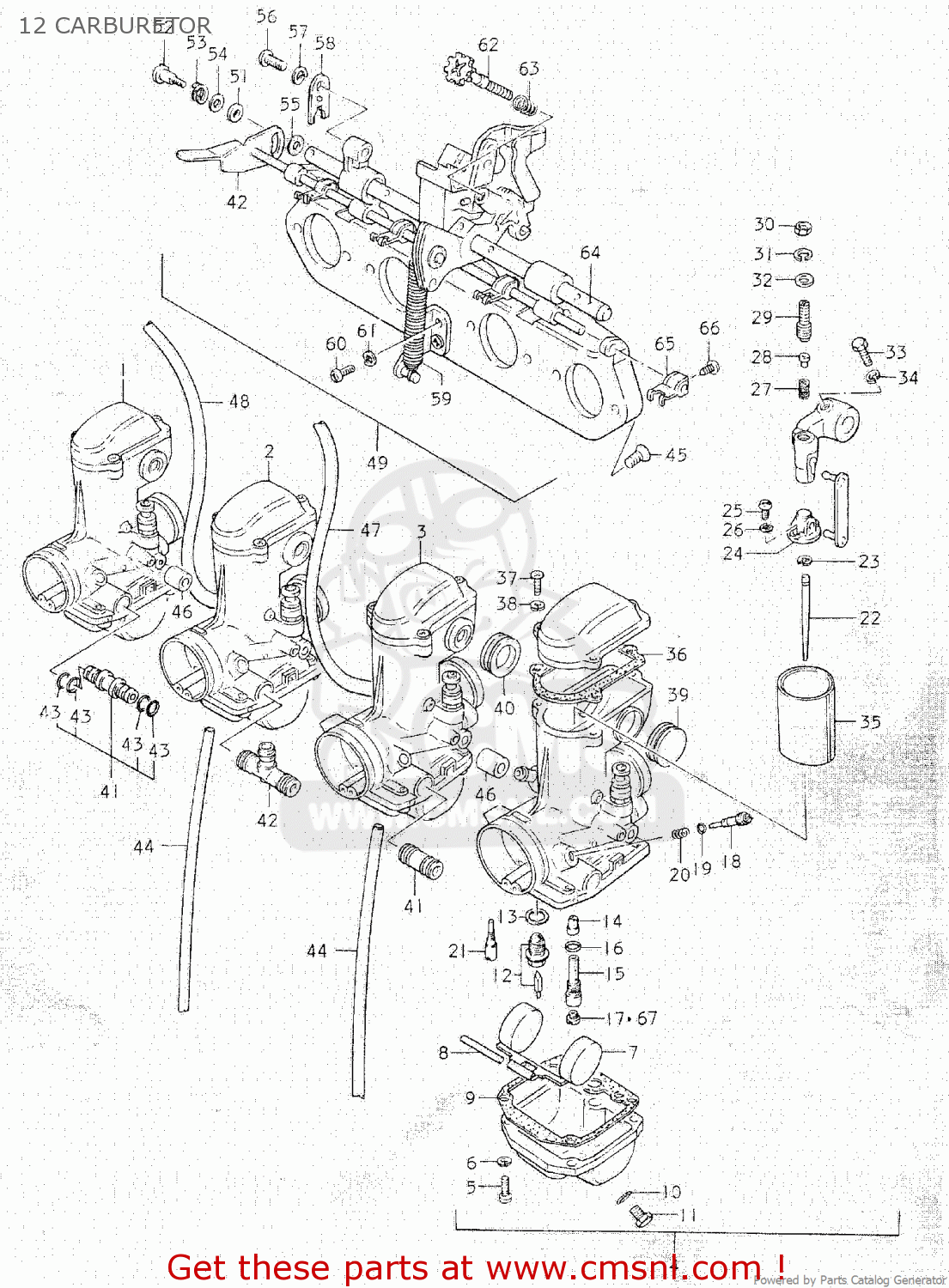

12 carburetor diagram GS750C
12 CARBURETOR GS750C
×
prices are in EUR
ref
part #
description
quantity
1
1320145013
ref: 1
CARBURETOR ASSEMBLY
€ 157.00
2
1320245013
ref: 2
CARBURETOR ASSEMBLY
€ 127.50
3
1320345013
ref: 3
CARBURETOR ASSEMBLY
€ 126.00
4
1320445013
ref: 4
CARBURETOR ASSEMBLY
€ 134.00
5
0211204168
ref: 5
SCREW
€ 1.00
6
0832121048
ref: 6
LOCK WASHER
€ 2.00
7
1325243010
ref: 7
FLOAT
€ 41.00
8
1325401010
ref: 8
PIN,FLOAT
€ 3.00
9
1325143010
ref: 9
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
10
1324643010
ref: 10
O RING
€ 4.00
11
1324745010
ref: 11
SCREW
€ 7.50
12
1337045010
ref: 12
VALVE ASSEMBLY,NEEDLE
€ 51.50
13
1339258600
ref: 13
GASKET,VALVE SEAT (NAS)
€ 2.00
14
0949400182
ref: 14
JET,NEEDLE
€ 0.00
15
1338545010
ref: 15
PIPE,BLEEDER
€ 36.00
16
1324643010
ref: 16
O RING
€ 4.00
17
0949120003
ref: 17
JET
€ 10.50
18
1326945010
ref: 18
SCREW,PILOT AIR
€ 11.50
19
1329533010
ref: 19
O RING
€ 4.50
20
1326801010
ref: 20
SPRING
€ 3.50
21
0949215004
ref: 21
JET
€ 15.00
22
1338325110
ref: 22
NEEDLE JET
€ 9.50
23
1338445010
ref: 23
E-RING
€ 4.50
24
1339845010
ref: 24
CONNECTOR
€ 18.00
25
0211103148
ref: 25
SCREW
€ 1.50
26
0832121038
ref: 26
LOCK WASHER
€ 1.50
27
1354345010
ref: 27
SPRING
€ 2.50
28
1354443010
ref: 28
PIN,CARBURETOR
€ 2.50
29
1354845010
ref: 29
SCREW
€ 10.00
30
0831011058
ref: 30
NUT
€ 2.50
31
0832121058
ref: 31
LOCK WASHER
€ 2.00
32
0832221058
ref: 32
WASHER
€ 2.50
33
0110405168
ref: 33
BOLT
€ 1.50
34
0832121058
ref: 34
LOCK WASHER
€ 2.00
35
1355145011
ref: 35
VALVE,THROTTLE
€ 30.00
36
1326643010
ref: 36
GASKET (NAS)
€ 7.00
37
0212104167
ref: 37
SCREW
€ 2.00
38
0832121048
ref: 38
LOCK WASHER
€ 2.00
39
1367843010
ref: 39
PIPE,DELIVERY
€ 4.50
40
1355645010
ref: 40
SEAL
€ 15.50
41
1368545010
ref: 41
NIPPLE
€ 26.00
42
1368545020
ref: 42
NIPPLE
€ 44.00
43
1367943010
ref: 43
O-RING
€ 7.00
44
1368345010
ref: 44
HOSE
€ 10.00
45
0212206168
ref: 45
SCREW
€ 2.00
46
1368345030
ref: 46
HOSE
€ 18.00
47
1368345040
ref: 47
HOSE
€ 14.00
48
1368345050
ref: 48
HOSE 4.5X8X390
€ 14.00
49
1321045010
ref: 49
CARBURETOR ASSEMBLY
€ 214.00
51
1343233110
ref: 51
WASHER
€ 5.00
52
1343333110
ref: 52
SCREW,STARTER LEVER
€ 5.50
53
1342643010
ref: 53
SPRING
€ 4.50
54
1361543010
ref: 54
WASHER,STARTER SHAFT
€ 2.50
55
1361545010
ref: 55
WASHER,STARTER SHAFT
€ 3.50
56
0211105158
ref: 56
SCREW
€ 2.50
57
0832121058
ref: 57
LOCK WASHER
€ 2.00
58
1355733110
ref: 58
GASKET
€ 3.50
59
1357345010
ref: 59
SPRING,THROTTLE RETURN
€ 23.00
60
0211105158
ref: 60
SCREW
€ 2.50
61
0832121058
ref: 61
LOCK WASHER
€ 2.00
62
1326745010
ref: 62
ADJUSTER
€ 10.00
63
1326833110
ref: 63
SPRING,THROTTLE SCREW
€ 4.00
64
1355043010
ref: 64
SHAFT ASSEMBLY
€ 44.50
65
1342243010
ref: 65
LEVER, STARTER
€ 5.50
66
1360531210
ref: 66
SCREW
€ 3.00
67
0949192001
ref: 67
JET
€ 8.50
67
0949195003
ref: 67
JET
€ 8.50
67
0949197001
ref: 67
JET
€ 8.50
67
0949120004
ref: 67
JET
€ 8.50
67
0949121003
ref: 67
JET
€ 9.50
67
0949121006
ref: 67
JET
€ 8.50
