20 KICK STARTER
GS750C

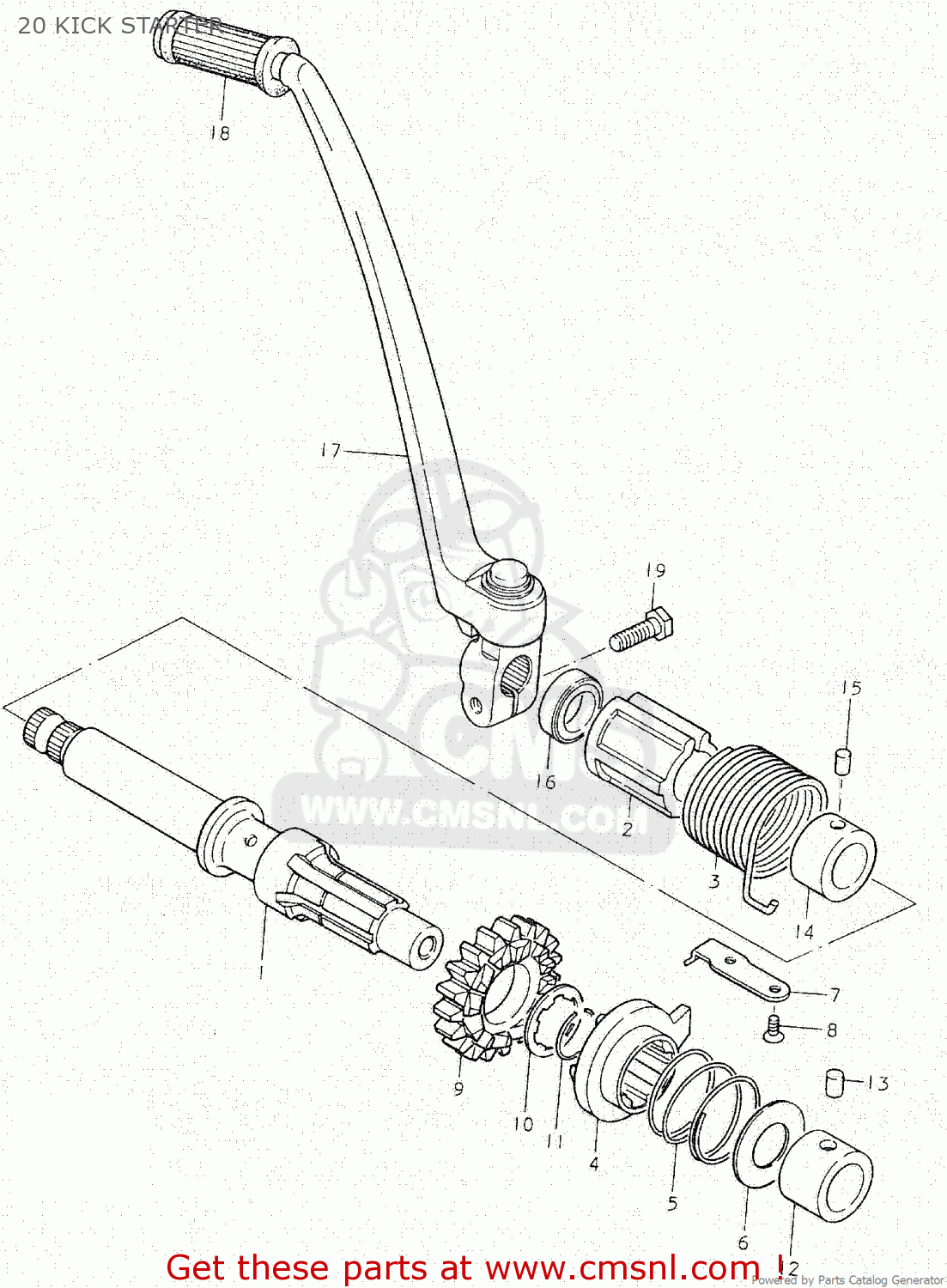

20 kick starter diagram GS750C
20 KICK STARTER GS750C
×
prices are in EUR
ref
part #
description
quantity
1
2621045001
ref: 1
SHAFT,KICK STARTER
€ 33.00
2
2622145001
ref: 2
GUIDE,KICK SHAFT SPRING
€ 6.00
3
0944845009
ref: 3
SPRING
€ 6.00
4
2623130000
ref: 4
STARTER,KICK
€ 47.50
5
0944032002
ref: 5
SPRING
€ 2.00
6
0821217342
ref: 6
WASHER
€ 0.00
7
2623245000
ref: 7
GUIDE,STARTING SPRING
€ 0.00
8
0212206168
ref: 8
SCREW
€ 2.00
9
2624045000
ref: 9
GEAR,KICK STARTER DRIVE
€ 40.00
10
0916722007
ref: 10
WASHER,LOCK
€ 3.50
11
0938022003
ref: 11
CIRCLIP
€ 13.50
12
0930017002
ref: 12
BUSHING
€ 4.50
13
0422107129
ref: 13
PIN
€ 1.50
14
0930020019
ref: 14
BUSHING
€ 13.00
15
0422107129
ref: 15
PIN
€ 1.50
16
0928320031
ref: 16
SEAL,OIL(20X27X5)
€ 5.00
17
2630045000
ref: 17
LEVER ASSEMBLY,KICK STARTER
€ 110.00
18
2635201000
ref: 18
RUBBER,KICK STARTER PEDAL
€ 3.50
19
0110708258
ref: 19
BOLT
€ 2.50
