15 OIL PUMP

GS750C

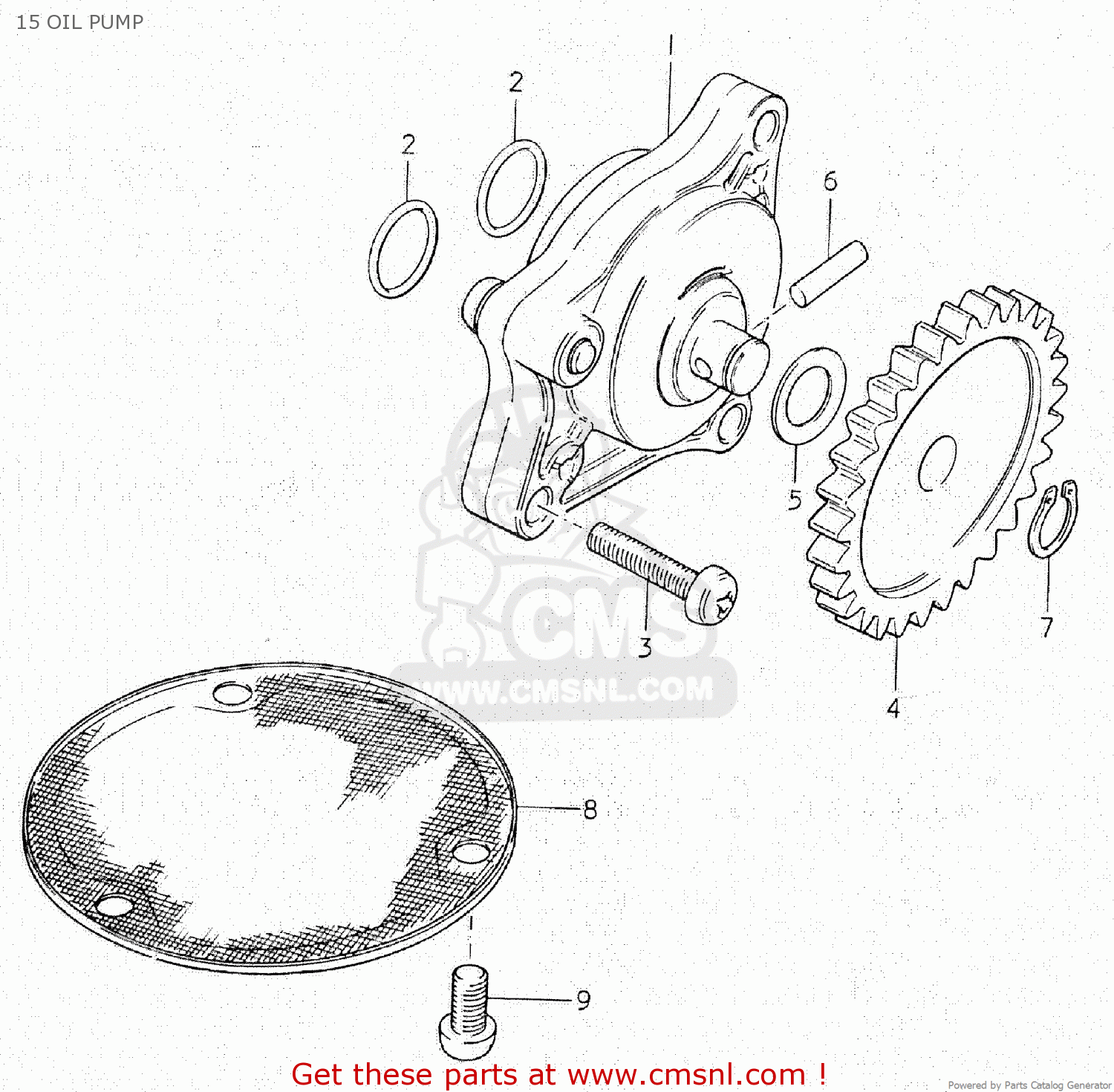

15 oil pump diagram GS750C

15 OIL PUMP GS750C

15 OIL PUMP GS750C

prices are in EUR

ref

part #

description

quantity

1

1640045011
ref: 1

PUMP ASSEMBLY,OIL

€ 185.00

2

0928013004
ref: 2

O RING(D:1.9,ID:13)

€ 2.50

3

0211206258
ref: 3

SCREW

€ 2.00

4

1633145000
ref: 4

GEAR,ENG OIL PUMP DRIVEN

€ 135.50

5

0822110185
ref: 5

SHIM

€ 2.00

6

0926104009
ref: 6

PIN(4X15.8)

€ 1.50

7

0833131109
ref: 7

CIRCLIP

€ 2.00

8

1652045000
ref: 8

STRAINER,ENGINE OIL

€ 12.00

9

0211206128
ref: 9

SCREW 6X12

€ 2.00
