Buy Suzuki GS Parts Online
home
10 CAM SHAFT - VALVE
GS750C

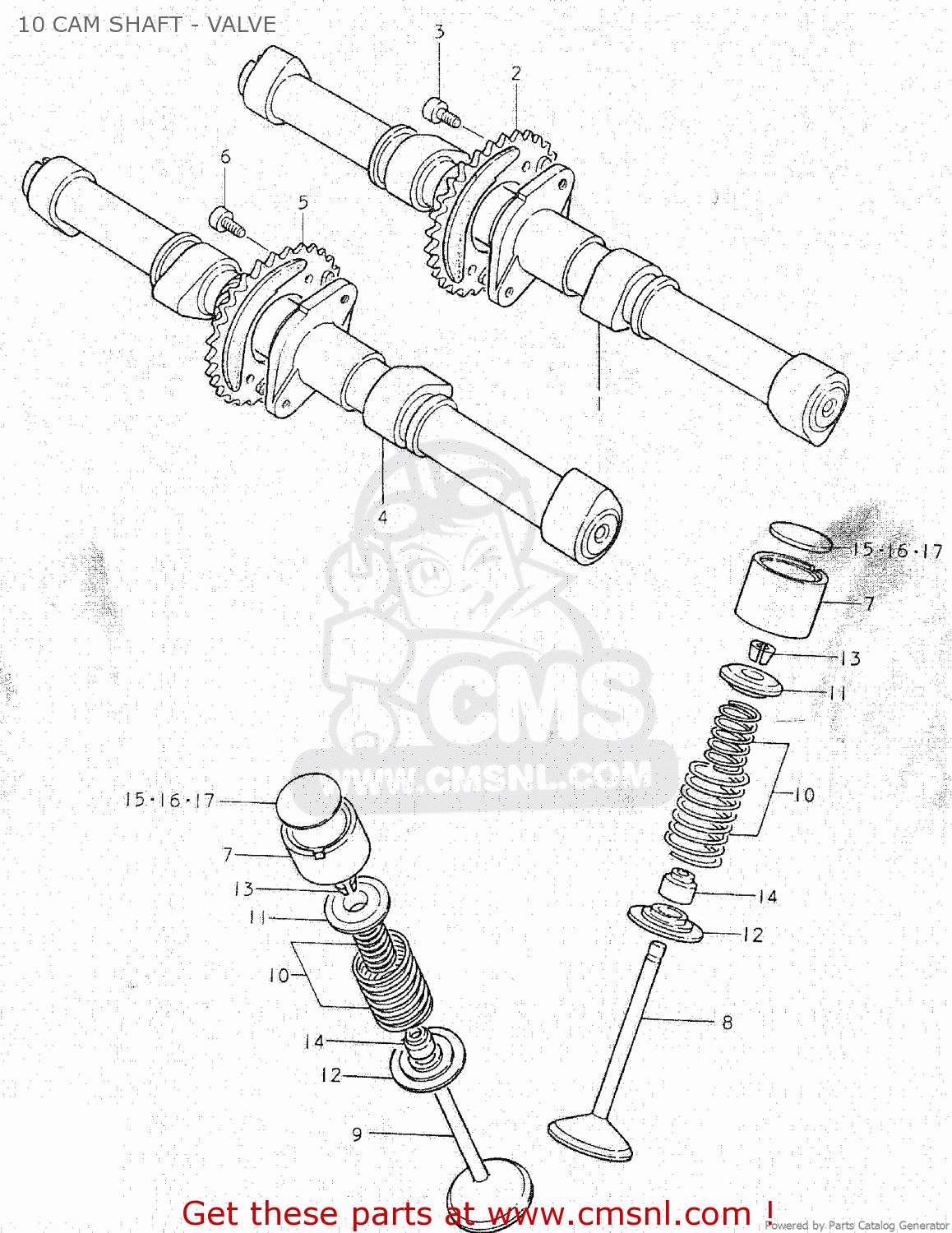

10 cam shaft - valve diagram GS750C
10 CAM SHAFT - VALVE GS750C
×
prices are in EUR
ref
part #
description
quantity
1
1271145001
ref: 1
CAMSHAFT
€ 243.50
2
1274045040
ref: 2
SPROCKET,CAMSHAFT
€ 67.00
3
0910606024
ref: 3
BOLT 6X11
€ 2.50
4
1272145001
ref: 4
CAMSHAFT,EXHAUST
€ 243.50
5
1275045040
ref: 5
SPROCKET,EXHAUST CAMSHAFT
€ 65.00
6
0910606024
ref: 6
BOLT 6X11
€ 2.50
7
1289145000
ref: 7
TAPPET
€ 45.00
8
1291145011
ref: 8
VALVE,INTAKE
€ 28.00
9
1291245011
ref: 9
VALVE,EXHAUST
€ 51.50
10
1290045810
ref: 10
SPRING SET,VALVE
€ 17.00
11
1293145000
ref: 11
RETAINER,VALVE SPRING
€ 6.00
12
1293345001
ref: 12
SEAT,VALVE SPRING
€ 5.50
13
1293245000
ref: 13
COTTER,VALVE
€ 2.50
14
0928907002
ref: 14
SEAL,OIL(7X14.4X9)
€ 3.00
15
1289245000
ref: 15
SHIM,TAPPET
€ 17.00
15
1289245001
ref: 15
SHIM,TAPPET
€ 16.50
15
1289245002
ref: 15
SHIM,TAPPET
€ 17.00
15
1289245003
ref: 15
SHIM,TAPPET
€ 16.00
15
1289245004
ref: 15
SHIM,TAPPET
€ 16.50
15
1289245005
ref: 15
SHIM,TAPPET
€ 17.00
15
1289245006
ref: 15
SHIM,TAPPET
€ 17.00
15
1289245007
ref: 15
SHIM,TAPPET
€ 16.00
15
1289245008
ref: 15
SHIM,TAPPET
€ 16.50
16
1289245009
ref: 16
SHIM,TAPPET
€ 16.00
16
1289245010
ref: 16
SHIM,TAPPET
€ 17.00
16
1289245011
ref: 16
SHIM,TAPPET
€ 17.00
16
1289245012
ref: 16
SHIM,TAPPET
€ 17.00
16
1289245013
ref: 16
SHIM,TAPPET
€ 16.50
16
1289245014
ref: 16
SHIM,TAPPET
€ 17.00
16
1289245015
ref: 16
SHIM,TAPPET
€ 17.00
16
1289245016
ref: 16
SHIM,TAPPET
€ 17.00
16
1289245017
ref: 16
SHIM,TAPPET
€ 17.00
17
1289245018
ref: 17
SHIM,TAPPET
€ 16.50
17
1289245019
ref: 17
SHIM,TAPPET
€ 17.00
