17 CLUTCH RELEASE
GS750C

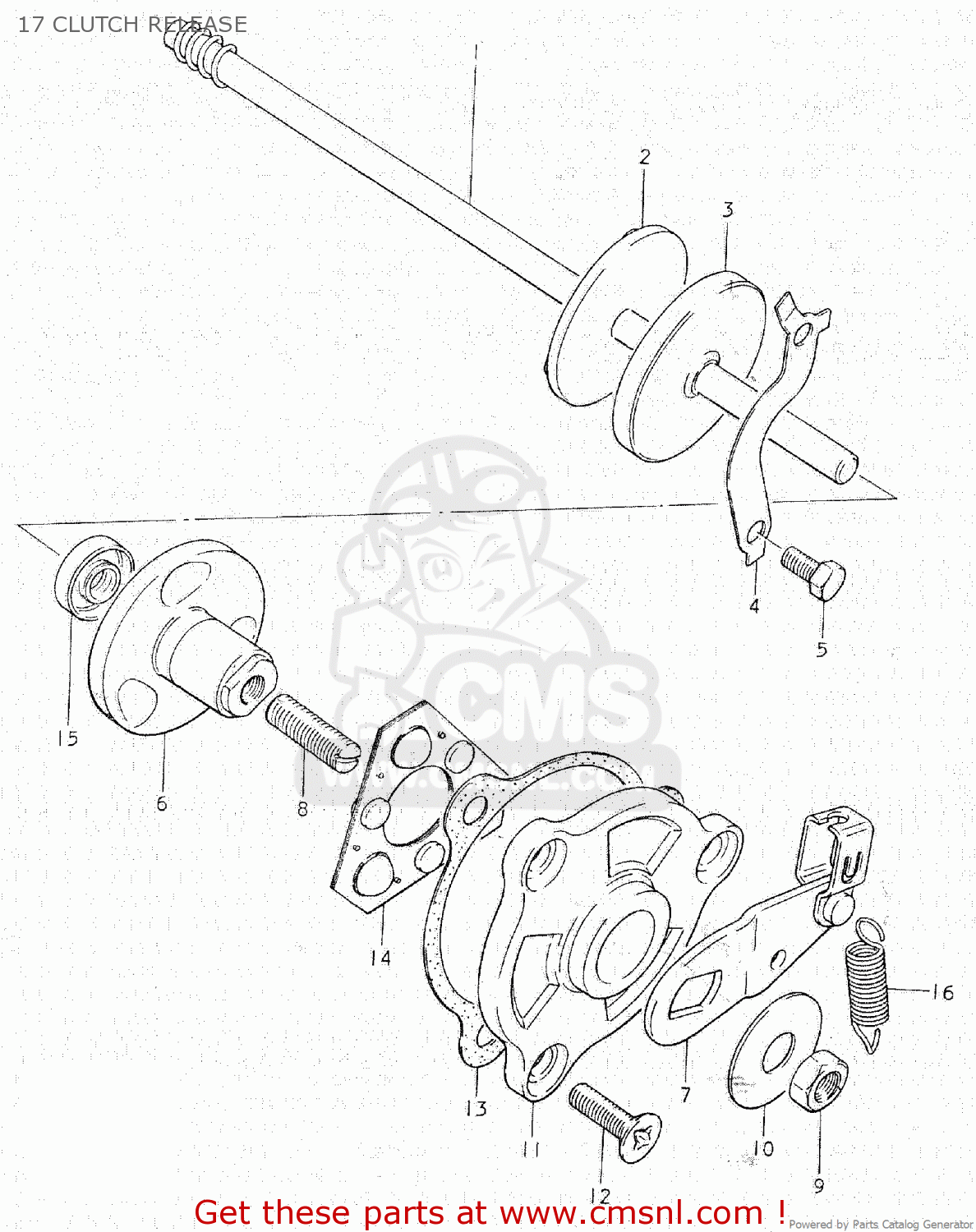

17 clutch release diagram GS750C
17 CLUTCH RELEASE GS750C
×
prices are in EUR
ref
part #
description
quantity
1
2311045001
ref: 1
ROD ASSY,CLUTCH RELEASE
€ 66.50
2
2311545000
ref: 2
HOLDER,CLUTCH PUSH ROD
€ 17.50
3
0928308001
ref: 3
SEAL,OIL(8X47X8)
€ 14.50
4
2311745000
ref: 4
RETAINER,CL PUSH ROD OIL SEAL
€ 14.00
5
0110706128
ref: 5
BOLT
€ 2.00
6
2321134001
ref: 6
GUIDE,CLUTCH RELEASE,OUTER
€ 37.00
7
2322045000
ref: 7
ARM,CLUTCH RELEASE
€ 7.50
8
0913408006
ref: 8
SCREW
€ 6.00
9
0831022088
ref: 9
NUT 8MM
€ 2.00
10
0916008032
ref: 10
WASHER(8.5X26X1.2)
€ 3.50
11
2323134001
ref: 11
GUIDE,CLUTCH RELEASE,INNER
€ 34.50
12
0212206208
ref: 12
SCREW
€ 2.00
13
2329134000
ref: 13
GASKET,BALL GUIDE (MCA)
€ 6.50
14
2325031001
ref: 14
BALL,CLUTCH RELEASE
€ 23.00
15
0928508006
ref: 15
SEAL,OIL(8X20X7)
€ 17.50
16
0944308001
ref: 16
SPRING
€ 3.00
