30 ELECTRICAL
GS750C

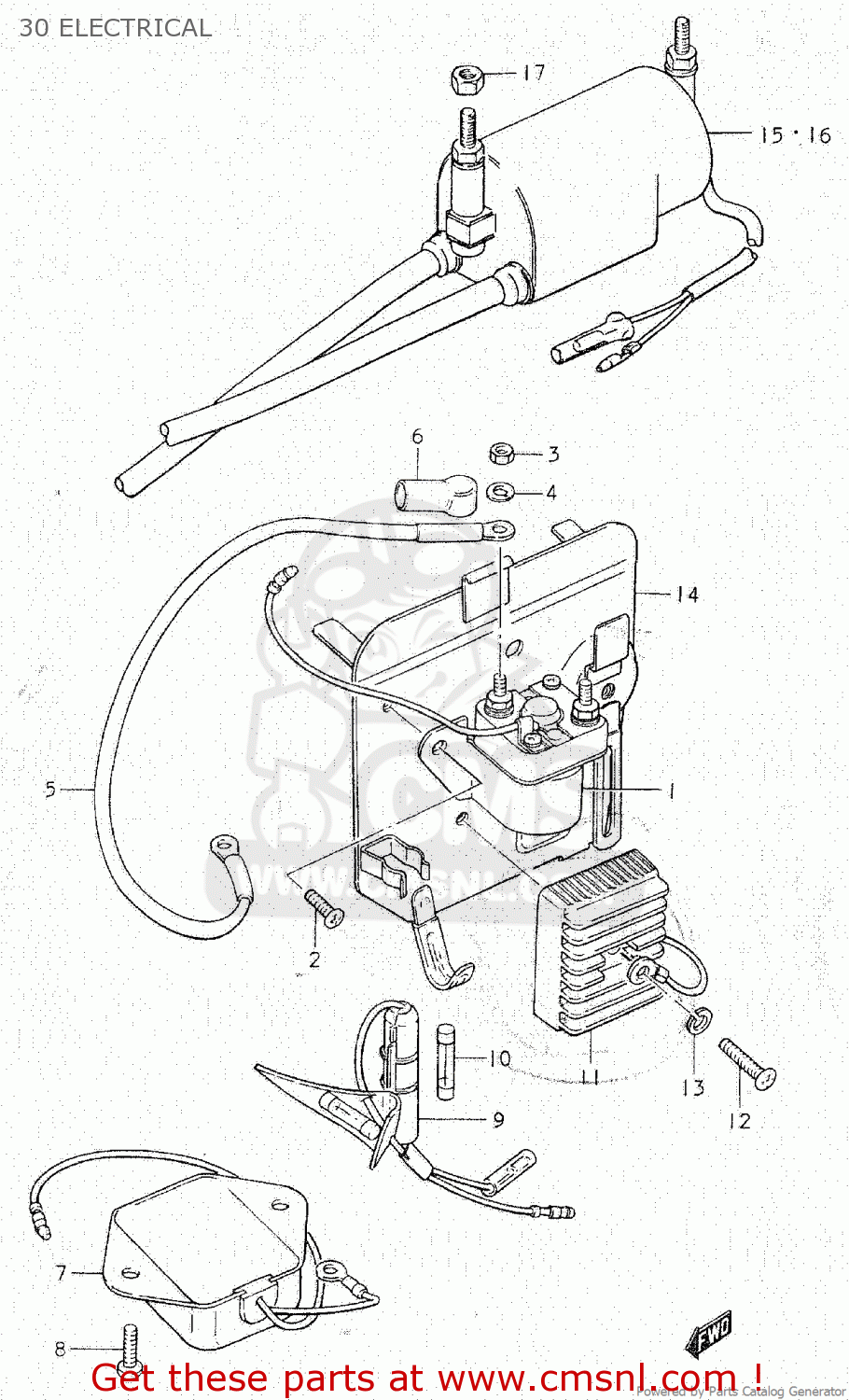

30 electrical diagram GS750C
30 ELECTRICAL GS750C
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206108
ref: 2
SCREW
€ 1.50
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
€ 2.50
5
3385024102
ref: 5
WIRE,STARTER MOTOR LEAD
€ 50.00
6
3186135100
ref: 6
CAP,STARTER RELAY
€ 4.50
7
3250045011
ref: 7
REGULATOR ASSEMBLY
€ 952.00
8
0211206108
ref: 8
SCREW
€ 1.50
9
3674015010
ref: 9
BOX ASSEMBLY,FUSE
€ 11.00
10
0948115001
ref: 10
FUSE(15A)
€ 3.00
11
3280044010
ref: 11
RECTIFIER ASSY
€ 269.00
12
0211206258
ref: 12
SCREW
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
€ 2.50
14
4741045003
ref: 14
HOLDER COMP,ELECTRONIC PARTS
€ 7.00
15
3341045020
ref: 15
COIL ASSEMBLY,IGNITION
€ 235.00
16
3342045020
ref: 16
COIL ASSEMBLY,IGNITION
€ 235.00
17
0831011068
ref: 17
NUT
€ 2.50
