39 FRONT FROK (GS750C)
GS750C

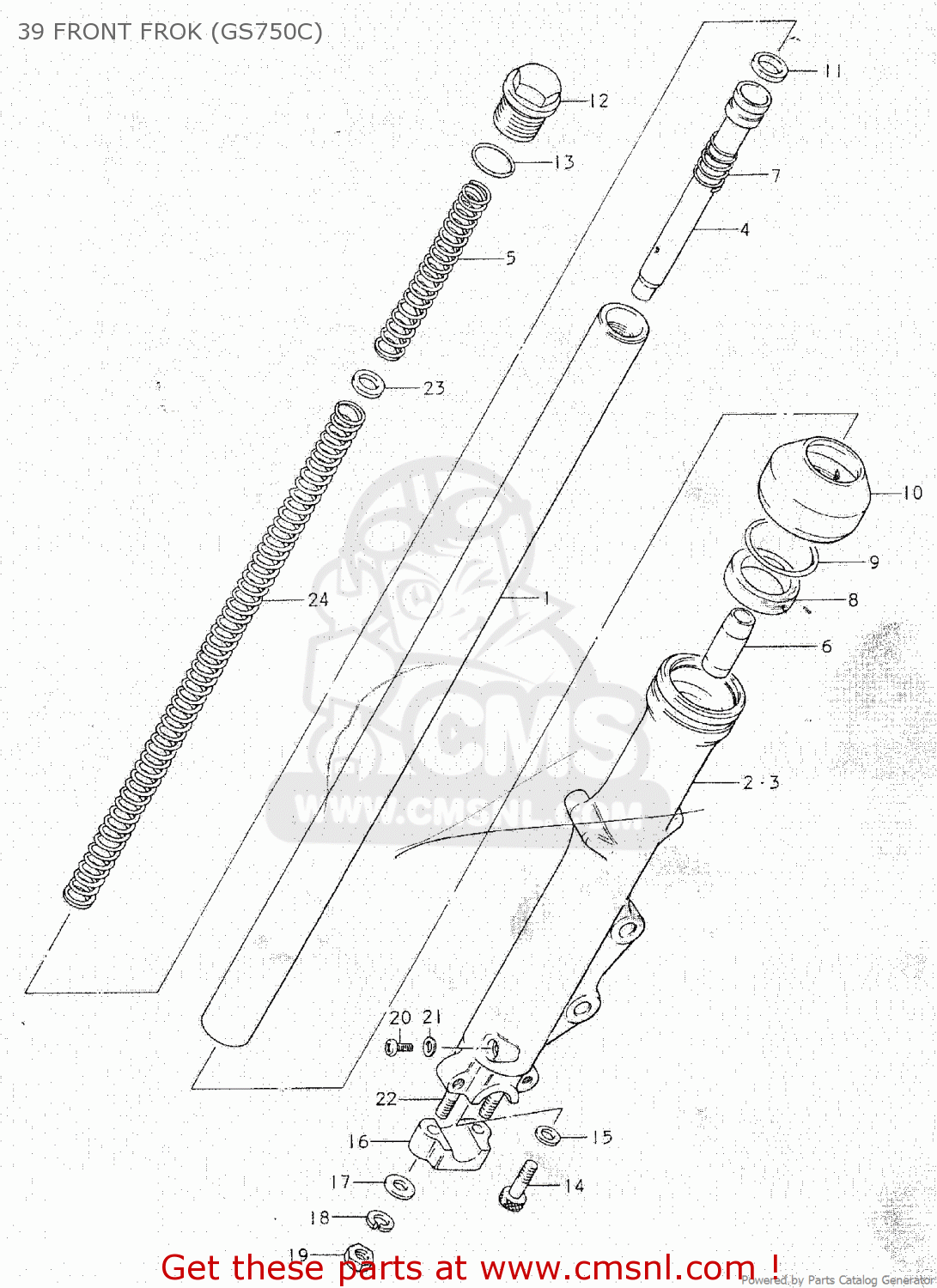

39 front frok (gs750c) diagram GS750C
39 FRONT FROK (GS750C) GS750C
×
prices are in EUR
ref
part #
description
quantity
1
5111045030
ref: 1
TUBE,INNER
€ 270.50
2
5114045031
ref: 2
TUBE,FORK,LEFT,OUTER
€ 211.50
3
5113045031
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 220.50
4
5114645030
ref: 4
CYLINDER,FRONT FORK
€ 25.50
5
5117145030
ref: 5
SPRING,FRONT FORK,UPPER
€ 9.50
6
5119545030
ref: 6
PIECE,OIL LOCK
€ 16.00
7
5117745030
ref: 7
SPRING,FORK REBOUND
€ 4.00
8
5115334730
ref: 8
OIL SEAL,FRONT FORK
€ 14.00
9
5155631231
ref: 9
RING,OIL SEAL STOPPER
€ 3.50
10
5157131232
ref: 10
BOOT
€ 19.50
11
5119631230
ref: 11
RING
€ 7.50
12
5135131030
ref: 12
CAP,INNER TUBE
€ 34.50
13
5118131030
ref: 13
O RING
€ 3.50
14
5114731030
ref: 14
BOLT
€ 3.50
15
5114831030
ref: 15
GASKET (NAS)
€ 4.00
16
5113231030
ref: 16
HOLDER,AXLE
€ 31.50
17
0832221088
ref: 17
WASHER
€ 2.00
18
0832121088
ref: 18
LOCK WASHER
€ 2.00
19
0831012088
ref: 19
NUT
€ 2.00
20
0211104067
ref: 20
SCREW
€ 2.00
21
5118333030
ref: 21
GASKET (NAS)
€ 6.50
22
0142108258
ref: 22
STUD 8X25
€ 2.50
23
5119245030
ref: 23
WASHER
€ 2.50
24
5118445030
ref: 24
SPRING,FRONT FORK
€ 23.50
