55 REAR CARIPERS

GS750C

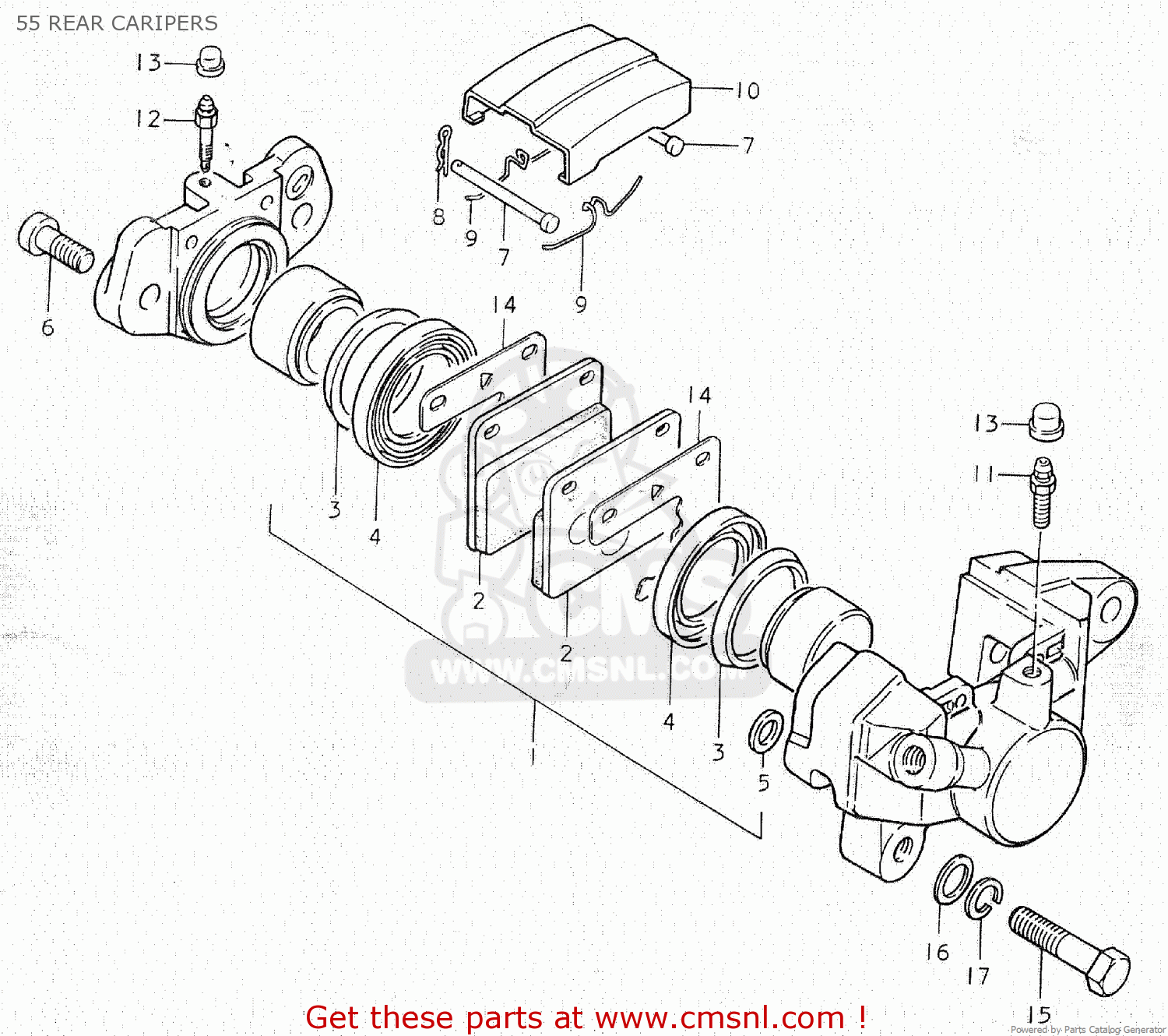

55 rear caripers diagram GS750C

55 REAR CARIPERS GS750C

55 REAR CARIPERS GS750C

prices are in EUR

ref

part #

description

quantity

1

6910045820
ref: 1

PISTON SET

€ 241.00

2

6913045001
ref: 2

PAD,BRAKE

€ 73.00

3

5910718410
ref: 3

SEAL,PISTON

€ 17.00

4

6910845000
ref: 4

BOOT,PISTON

€ 10.00

5

6910745000
ref: 5

SEAL,PISTON

€ 15.50

6

6914545000
ref: 6

BOLT,HOUSING

€ 7.00

7

6914145000
ref: 7

PIN,PAD

€ 6.50

8

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

9

6914345001
ref: 9

SPRING

€ 8.00

10

6915145000
ref: 10

COVER,DUST

€ 26.50

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

6912245000
ref: 12

BREATHER

€ 12.00

13

5912218410
ref: 13

CAP,BREATHER

€ 6.00

14

6915245001
ref: 14

SHIM,RR CALIPER

€ 9.50

15

0910010107
ref: 15

BOLT 10X34

€ 3.50

16

0832221108
ref: 16

WASHER

€ 2.50

17

0832121108
ref: 17

LOCK WASHER

€ 2.00
