27 HEADLAMP
GS750C

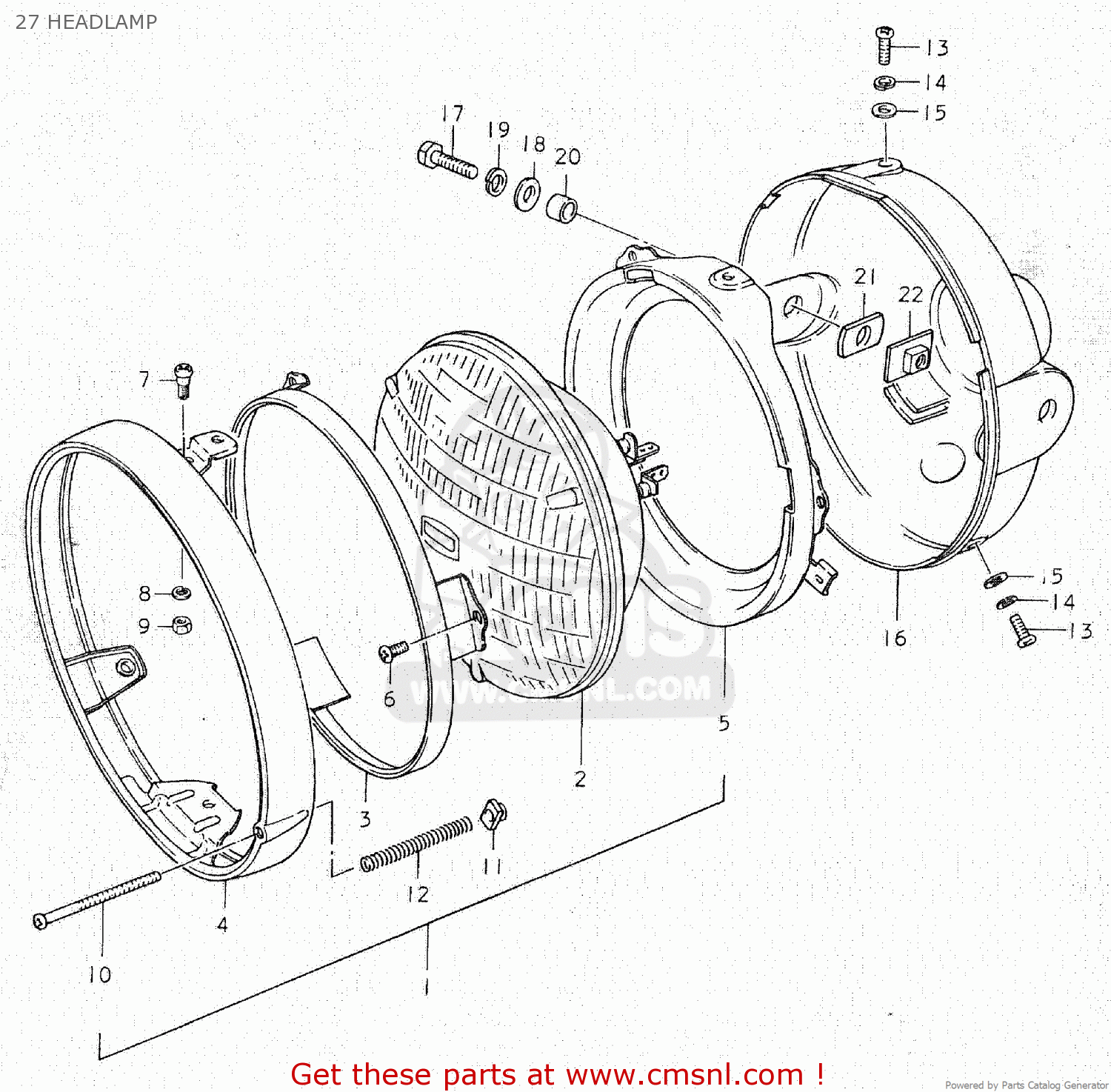

27 headlamp diagram GS750C
27 HEADLAMP GS750C
×
prices are in EUR
ref
part #
description
quantity
1
3510045030
ref: 1
HEADLAMP ASSY
€ 161.00
2
3512134031
ref: 2
UNIT
€ 0.00
3
3512745030
ref: 3
RETAINING RING
€ 19.50
4
3511145030
ref: 4
RIM
€ 53.50
5
3513045030
ref: 5
RING
€ 29.50
6
0211104087
ref: 6
SCREW
€ 1.50
7
3518115611
ref: 7
H/LAMP LENS UNIT FITING SCRE
€ 3.00
8
0832121058
ref: 8
LOCK WASHER
€ 2.00
9
0831011048
ref: 9
NUT
€ 2.00
10
3515145030
ref: 10
SCREW,HEADLAMP ADJUST
€ 4.00
11
3515215611
ref: 11
NUT
€ 3.50
12
3515431900
ref: 12
SPRING,ADJUSTING
€ 3.50
13
0912505022
ref: 13
SCREW
€ 3.50
14
0916205003
ref: 14
WASHER,LOCK
€ 2.00
15
0916906021
ref: 15
WASHER
€ 2.50
16
5181145002291
ref: 16
HOUSING,HEADLAMP(BLACK)
€ 69.50
17
0120408257
ref: 17
BOLT
€ 2.00
18
0832211088
ref: 18
WASHER
€ 2.00
19
0832121088
ref: 19
LOCK WASHER
€ 2.00
20
0918008030
ref: 20
SPACER (8.8X12X7)
€ 3.50
21
0932912002
ref: 21
CUSHION
€ 3.00
22
5186045000
ref: 22
PLATE,HEADLAMP HOUSING
€ 2.00
