23 GENERATOR

GS750C

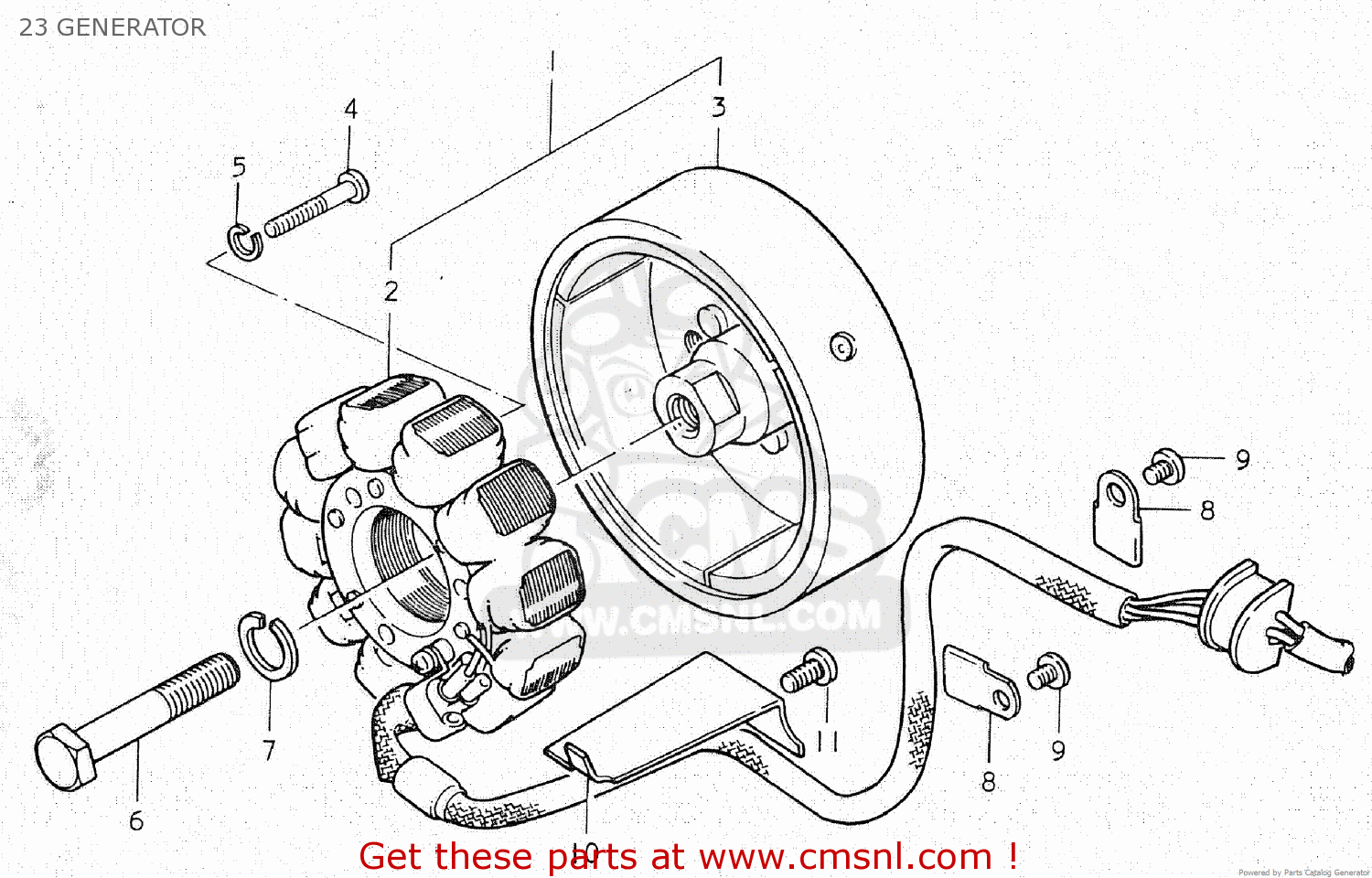

23 generator diagram GS750C

23 GENERATOR GS750C

23 GENERATOR GS750C

prices are in EUR

ref

part #

description

quantity

1

3140045011
ref: 1

GENERATOR ASSEMBLY

€ 712.50

2

3140145011
ref: 2

STARTER ASSY

€ 372.50

3

3140245011
ref: 3

ROTOR ASSEMBLY

€ 348.50

4

0211205308
ref: 4

SCREW

€ 1.50

5

0832121058
ref: 5

LOCK WASHER

€ 2.00

6

0110712458
ref: 6

BOLT 12X45

€ 5.50

7

0832121128
ref: 7

WASHER,LOCK 12

€ 2.50

8

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

9

0211205068
ref: 9

SCREW

€ 4.00

10

3149845000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 2.00

11

0211206108
ref: 11

SCREW

€ 1.50
