45 LH HANDLE SWITCH
GS750C

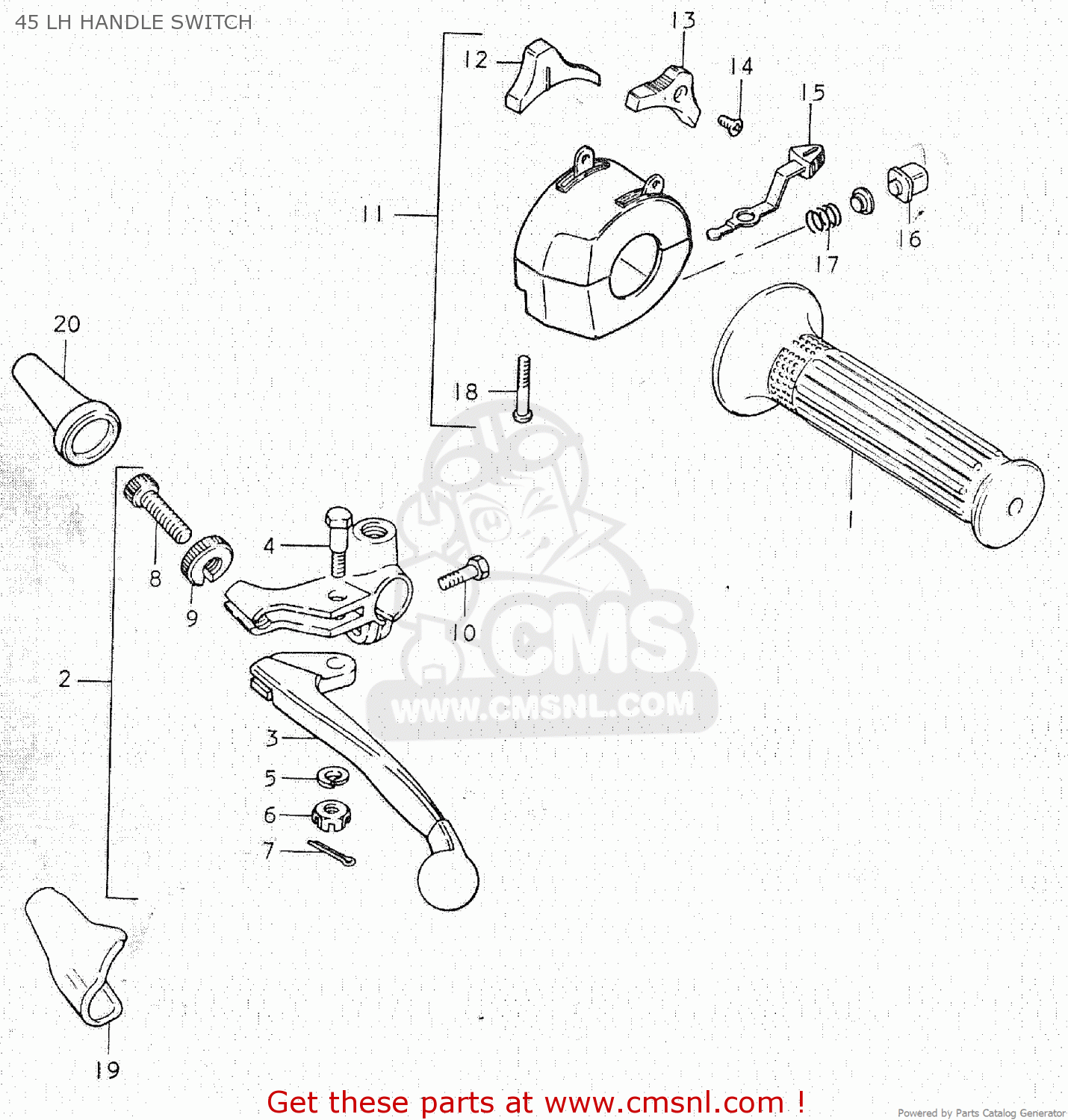

45 lh handle switch diagram GS750C
45 LH HANDLE SWITCH GS750C
×
prices are in EUR
ref
part #
description
quantity
1
5721145020
ref: 1
GRIP,L
€ 9.00
2
5750045011
ref: 2
LEVER ASSEMBLY
€ 52.50
3
5762029400
ref: 3
LEVER,CLUTCH
€ 35.00
4
5743111010
ref: 4
BOLT,LEVER
€ 6.00
5
0832121068
ref: 5
LOCK WASHER
€ 2.50
6
5743311010
ref: 6
NUT,LEVER FITTNG
€ 5.50
7
0411116158
ref: 7
COTTER PIN
€ 2.00
8
5744111010
ref: 8
ADJUSTER,CABLE
€ 8.00
9
5744211010
ref: 9
NUT,CABLE ADJUSTER
€ 4.00
10
0110706208
ref: 10
BOLT
€ 2.00
11
3740045011
ref: 11
SWITCH ASSY,HANDLE LH
€ 171.50
12
3741145011
ref: 12
KNOB,LIGHTING SWITCH
€ 4.50
13
3742145011
ref: 13
KNOB,DIMMER SWITCH
€ 5.50
14
0212203068
ref: 14
SCREW
€ 1.00
15
3751345011
ref: 15
KNOB,TURNSIGNAL
€ 6.50
16
5737145000
ref: 16
BUTTON,HORN
€ 3.00
17
5738245000
ref: 17
SPRING
€ 2.50
18
0211205258
ref: 18
SCREW
€ 2.00
19
5766131000
ref: 19
COVER,CLUTCH LEVER
€ 5.50
20
5827331000
ref: 20
BOOT,CLUTCH CABLE
€ 2.50
