41 STEERING STEM
GS750C

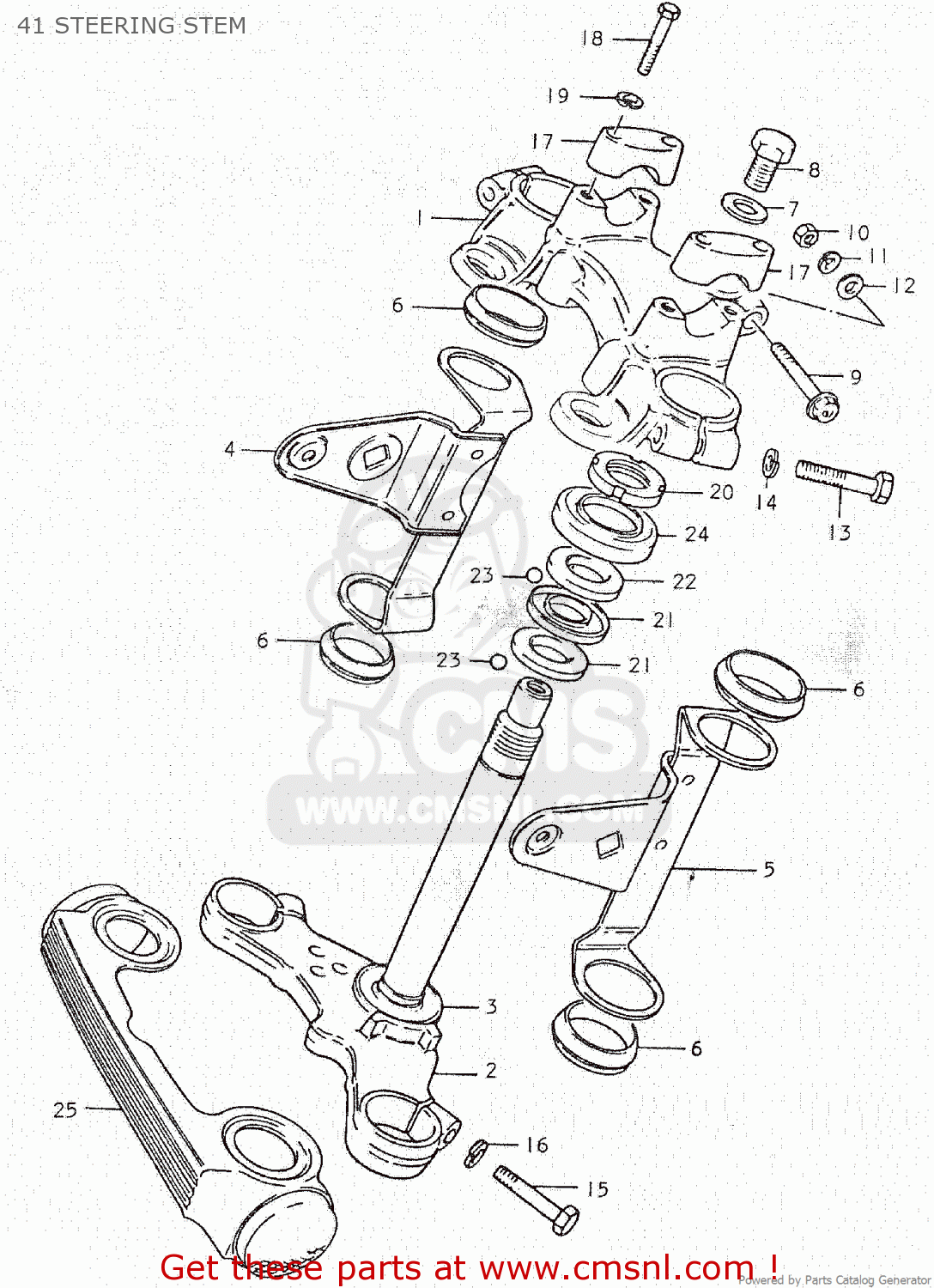

41 steering stem diagram GS750C
41 STEERING STEM GS750C
×
prices are in EUR
ref
part #
description
quantity
1
5131147000291
ref: 1
HEAD,STEERING STEM
€ 111.50
2
5141045001
ref: 2
STEM,STEERING
€ 268.50
3
5162133001
ref: 3
RACE,STEERING OUTER LWR
€ 10.00
4
5153045000291
ref: 4
BRACKET,HEADLAMP,RIGHT
€ 99.00
5
5154045000291
ref: 5
BRACKET,HEADLAMP,LEFT
€ 74.50
6
5155347000
ref: 6
CUSHION,HEADLAMP BRACKET
€ 3.50
7
0916012006
ref: 7
WASHER
€ 2.00
8
0910412013
ref: 8
BOLT(12X20)
€ 6.50
9
0151708508
ref: 9
BOLT
€ 3.50
10
0831012088
ref: 10
NUT
€ 2.00
11
0832121088
ref: 11
LOCK WASHER
€ 2.00
12
0832211088
ref: 12
WASHER
€ 2.00
13
0110710408
ref: 13
BOLT 10X40
€ 3.00
14
0832121108
ref: 14
LOCK WASHER
€ 2.00
15
0110710408
ref: 15
BOLT 10X40
€ 3.00
16
0832121108
ref: 16
LOCK WASHER
€ 2.00
17
5621127200291
ref: 17
HOLDER,HANDLE UPR
€ 13.50
18
0120408357
ref: 18
BOLT
€ 3.50
19
0832121088
ref: 19
LOCK WASHER
€ 2.00
20
5163128000
ref: 20
NUT,STEERING STEM(25X44X10)
€ 12.50
21
5161133002
ref: 21
LACE,STEERING INNER LWR
€ 7.00
22
5162130001
ref: 22
LACE,STEERING OUTER UPR
€ 14.00
23
0611108003
ref: 23
BALL
€ 1.50
24
5164330000
ref: 24
DUST SEAL,STEERING UPR
€ 15.50
25
5187047000
ref: 25
COVER,FR FORK
€ 42.00
