38 FRAME COVER
GS750C

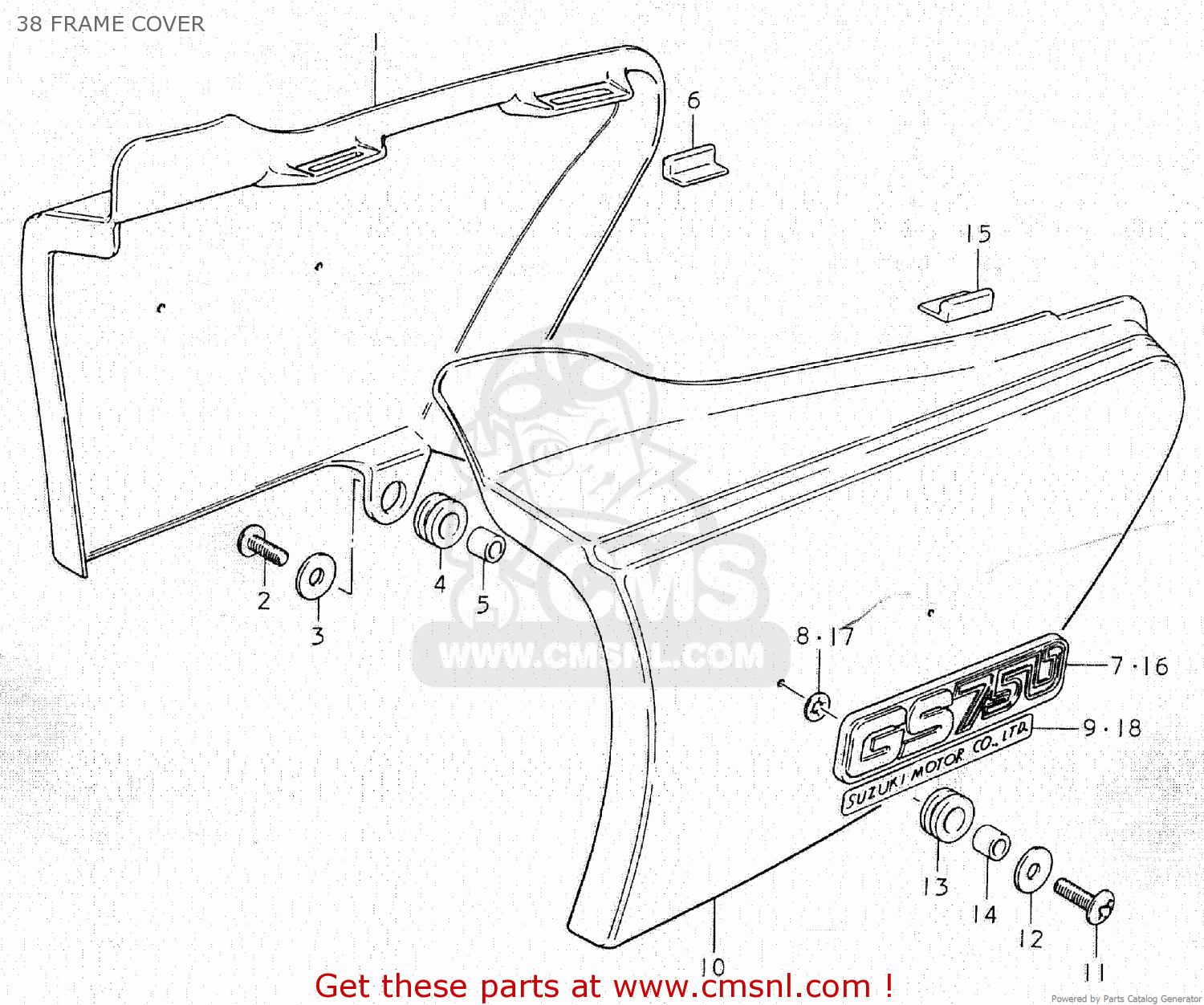

38 frame cover diagram GS750C
38 FRAME COVER GS750C
×
prices are in EUR
ref
part #
description
quantity
1
4711145000291
ref: 1
COVER,FRAME,RIGHT
€ 71.00
2
0912506015
ref: 2
SCREW (6X20)
€ 2.00
3
0916006039
ref: 3
WASHER (6.5X18X1.6)
€ 2.00
4
0932010008
ref: 4
CUSHION
€ 2.50
5
0918006030
ref: 5
SPACER (6.8X10X10)
€ 2.00
6
4711745000
ref: 6
CUSHION,FRAME COVER
€ 1.50
7
6814145000
ref: 7
EMBLEM,FRAME COVER
€ 11.50
8
0914803002
ref: 8
NUT
€ 3.00
9
6836326200
ref: 9
LABEL,COMPANY NAME
€ 7.50
10
4721145000291
ref: 10
COVER,FRAME,LEFT
€ 83.50
11
0912506015
ref: 11
SCREW (6X20)
€ 2.00
12
0916006039
ref: 12
WASHER (6.5X18X1.6)
€ 2.00
13
0932010008
ref: 13
CUSHION
€ 2.50
14
0918006030
ref: 14
SPACER (6.8X10X10)
€ 2.00
15
4711745000
ref: 15
CUSHION,FRAME COVER
€ 1.50
16
6814145000
ref: 16
EMBLEM,FRAME COVER
€ 11.50
17
0914803002
ref: 17
NUT
€ 3.00
18
6836326200
ref: 18
LABEL,COMPANY NAME
€ 7.50
