53 REAR FENDER
GS750C

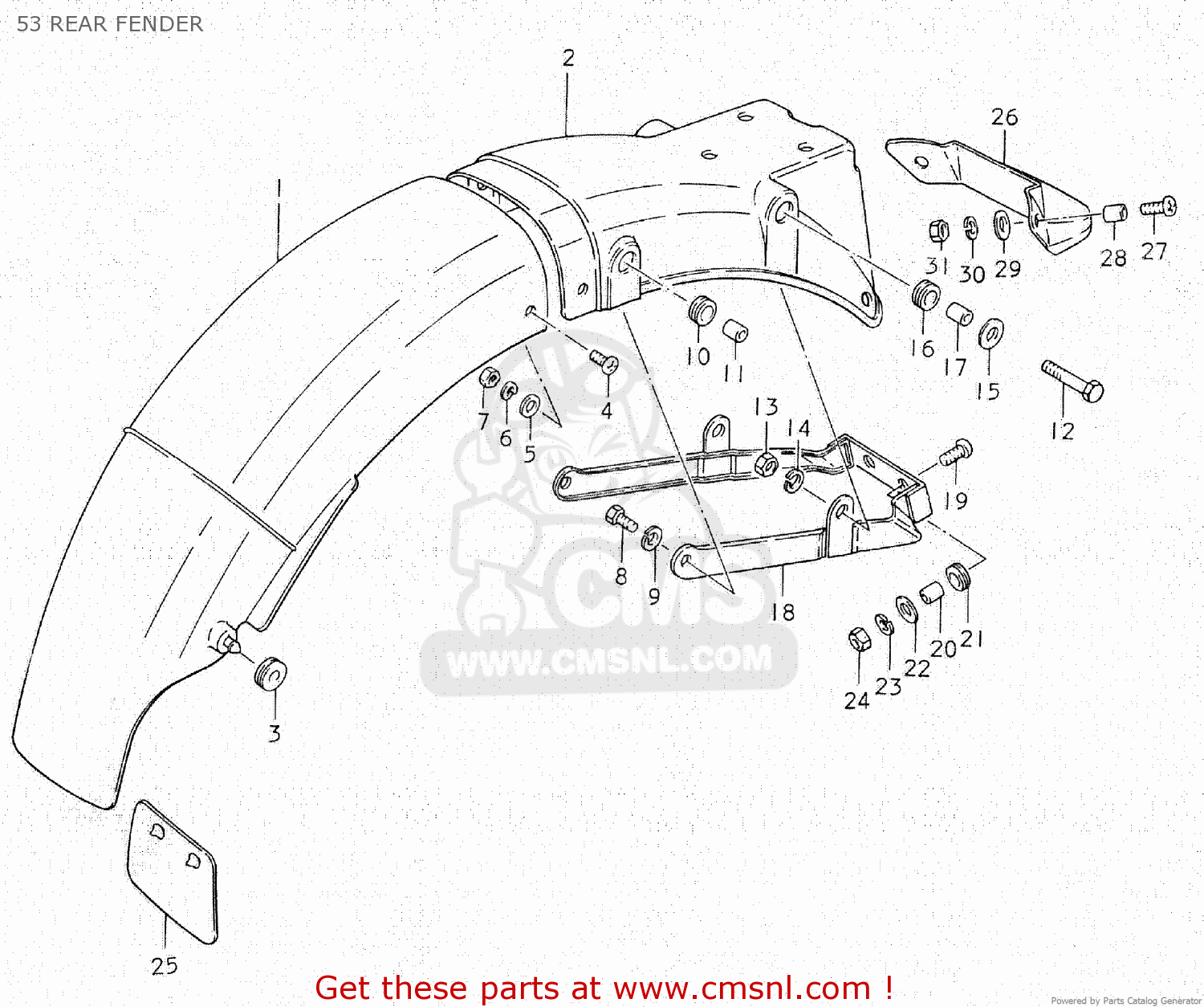

53 rear fender diagram GS750C
53 REAR FENDER GS750C
×
prices are in EUR
ref
part #
description
quantity
1
6311245000
ref: 1
FENDER,REAR
€ 61.50
2
6311345001
ref: 2
BODY,REAR FENDER,REAR
€ 68.00
3
0932008013
ref: 3
CUSHION
€ 4.00
4
0214205128
ref: 4
SCREW
€ 1.50
5
0916005017
ref: 5
WASHER (5.5X16X1.2)
€ 2.50
6
0832121058
ref: 6
LOCK WASHER
€ 2.00
7
0831011058
ref: 7
NUT
€ 2.50
8
0110706208
ref: 8
BOLT
€ 2.00
9
0832121068
ref: 9
LOCK WASHER
€ 2.50
10
0932008007
ref: 10
CUSHION
€ 4.00
11
0918006038
ref: 11
SPACER(6.1X9X7.5)
€ 2.00
12
0121408457
ref: 12
BOLT
€ 2.00
13
0831012088
ref: 13
NUT
€ 2.00
14
0832121088
ref: 14
LOCK WASHER
€ 2.00
15
0916008032
ref: 15
WASHER(8.5X26X1.2)
€ 3.50
16
0932012011
ref: 16
CUSHION
€ 3.00
17
0918008021
ref: 17
SPACER (8.2X12X7.5)
€ 3.00
18
6312045000
ref: 18
REINFORCEMENT,REAR FENDER
€ 36.00
19
0214206207
ref: 19
SCREW
€ 2.00
20
0918006011
ref: 20
SPACER (6.1X9X9)
€ 2.00
21
0932008013
ref: 21
CUSHION
€ 4.00
22
0916006012
ref: 22
WASHER(6,5X22X1.6)
€ 2.00
23
0832121068
ref: 23
LOCK WASHER
€ 2.50
24
0831011068
ref: 24
NUT
€ 2.50
25
6341131900
ref: 25
GUIDE,RR FENDER MUD
€ 8.00
26
6331145600
ref: 26
EXTENSION,REAR FENDER
€ 8.00
27
0912506009
ref: 27
SCREW (6X15)
€ 3.00
28
0918006001
ref: 28
SPACER(6.2X8.3X5.7)
€ 2.00
29
0916006028
ref: 29
WASHER(6.5X18X1)
€ 1.50
30
0832121068
ref: 30
LOCK WASHER
€ 2.50
31
0831011068
ref: 31
NUT
€ 2.50
